Woodward 5501-305 Control Module

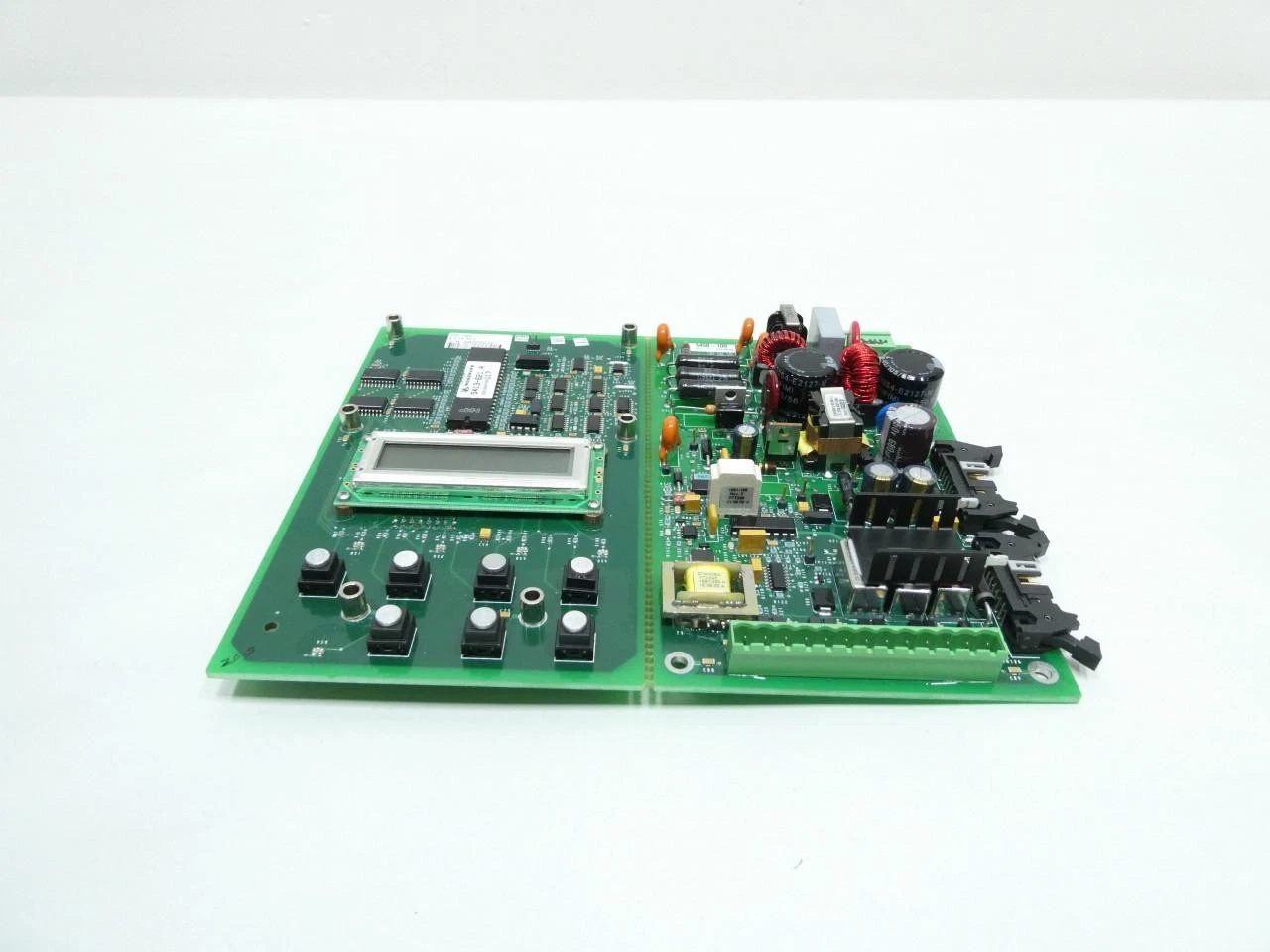

Woodward 5501-305
Woodward 5501-305 is a high-precision control module designed for industrial automation. It adopts a modular design and is suitable for real-time monitoring and control of power plants, gas turbines, diesel engines, and other power systems. The product is compatible with a variety of sensors and actuators, and parameter configuration and diagnosis can be performed through dedicated software.
Main Specifications
| Specification | Typical Value / Range |
|---|---|
| Input Voltage | 180‑264 VAC (47‑63 Hz) |
| Output Voltage | 0‑10 V DC (5 V DC optional) |
| Output Current | 20 mA (22 A @ 5 V DC, 65 °C for some models) |
| Operating Temperature | –40 °C ~ +85 °C |
| Storage Temperature | –40 °C ~ +85 °C |
| Dimensions | Approximately 150 mm × 100 mm × 50 mm (slight variations for different configurations) |
| Weight | Approximately 1.2 kg (1.5 lb for some models) |
| Communication Interfaces | CAN, Ethernet, Serial (Modbus RTU) |
| Installation Method | DIN rail or panel mounting; modular structure for easy maintenance |
Product Features
- Modular Design: Facilitates quick on-site installation, disassembly, and maintenance.
- Multiple Output Voltages: Meets the power supply requirements of different subsystems.
- Overload and Short-Circuit Protection: Built-in hardware protection enhances system reliability.
- High Reliability: Capable of long-term operation in harsh environments (-40 °C ~ +85 °C).
- Rich Communication Protocols: Supports CAN, Ethernet, and Modbus RTU for seamless integration with upper-level systems.
- Programmable Control Algorithms: Built-in advanced algorithms such as PID, motion control, and speed control, supporting user-defined logic.
- Diagnostic Function: Real-time self-inspection and fault alarm for quick problem localization.
Structure and Composition
- Power Module: Provides voltage stabilization, filtering, and protection functions.
- I/O Module: Multi-channel analog/digital inputs and programmable analog outputs.
- Communication Card: Enables multiple interfaces including CAN, Ethernet, and Serial.
- Control Processor: A high-performance microprocessor that executes control algorithms and manages communications.
- Enclosure: Metal or high-strength plastic housing with IP65 protection rating.
Typical Application Areas
- Speed, temperature, and pressure control of gas turbines and steam turbines in power plants.
- Fuel, ignition, and exhaust control of diesel engines and other internal combustion engines.
- Industrial process automation, such as closed-loop control of pumps, compressors, and valves.
- Real-time monitoring and adjustment of marine power systems.
- Any power or process control scenarios requiring high precision, multi-channel I/O, and reliable communication.
Installation and Maintenance Guidelines
Installation
- Use DIN rail or panel mounting to ensure mechanical stability.
- Check the power phase, rated voltage, and grounding status before wiring.
- Use the terminal blocks provided by the original manufacturer or connectors that comply with IEC standards.
Commissioning
- Set parameters through Woodward’s dedicated configuration software (e.g., ControlStation).
- Conduct no-load testing first to confirm the normal operation of I/O signals and communication interfaces.
- Gradually load control algorithms and monitor real-time responses and error indicators.
Daily Maintenance
- Regularly inspect heat sinks, fans, and vents to prevent overheating.
- Perform firmware updates every 6-12 months to obtain the latest functions and security patches.
- Record operation logs and use the built-in diagnostic function to detect abnormalities in advance.
Troubleshooting
- Locate the faulty module through diagnostic LEDs or software alarm information.
- For triggered overload/short-circuit protection, check whether the external load and wiring comply with specifications.
- Replace individual I/O or communication cards if necessary to maintain the integrity of the overall module.
————————————————————————————————————-
