Woodward 9907-077 Power Module

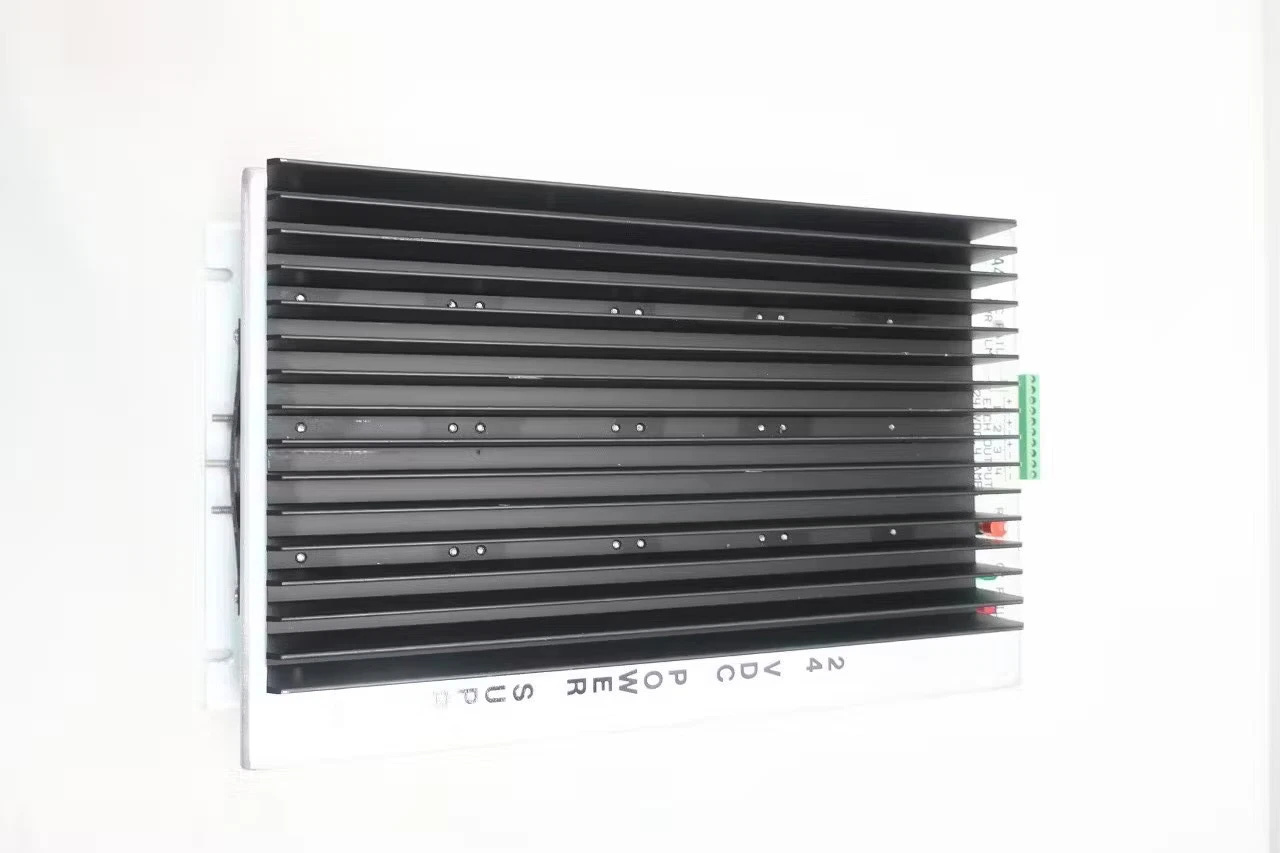

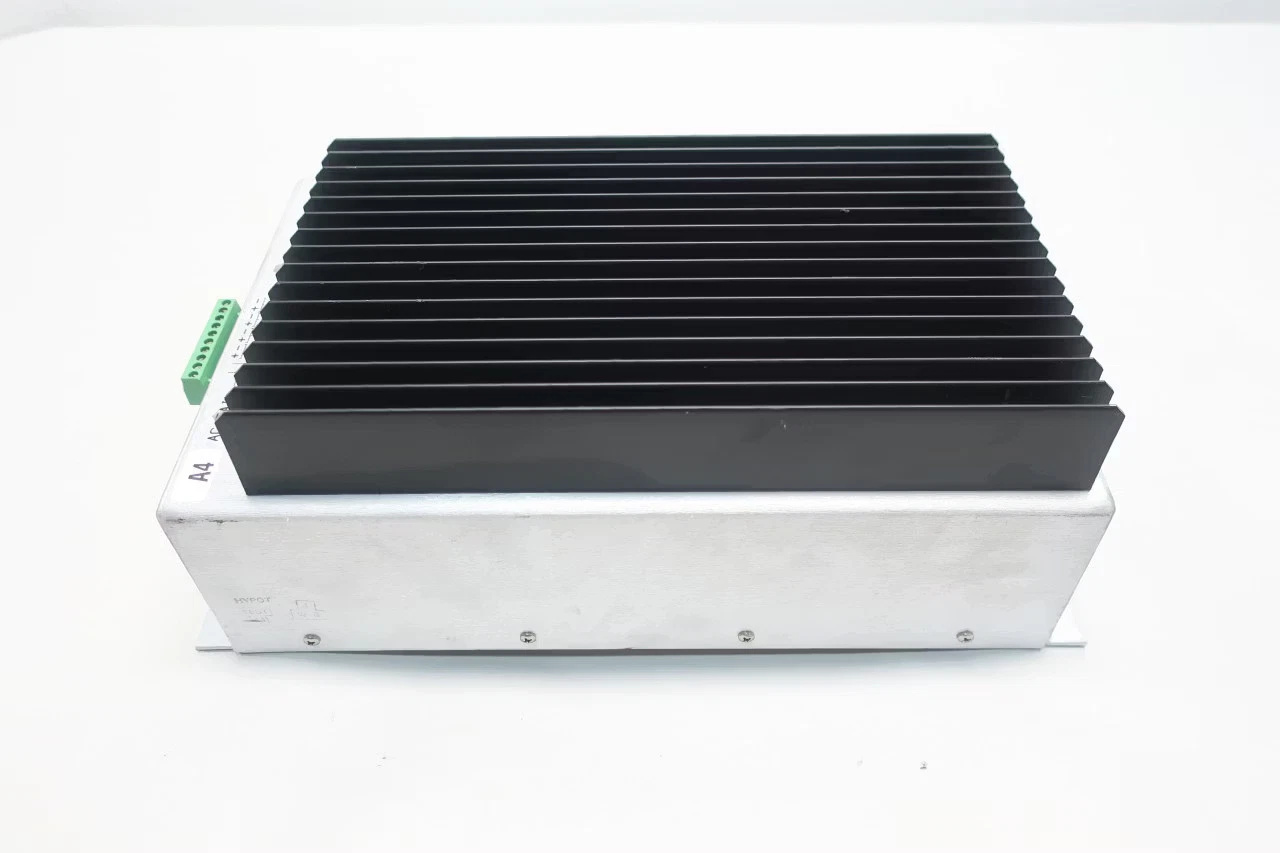

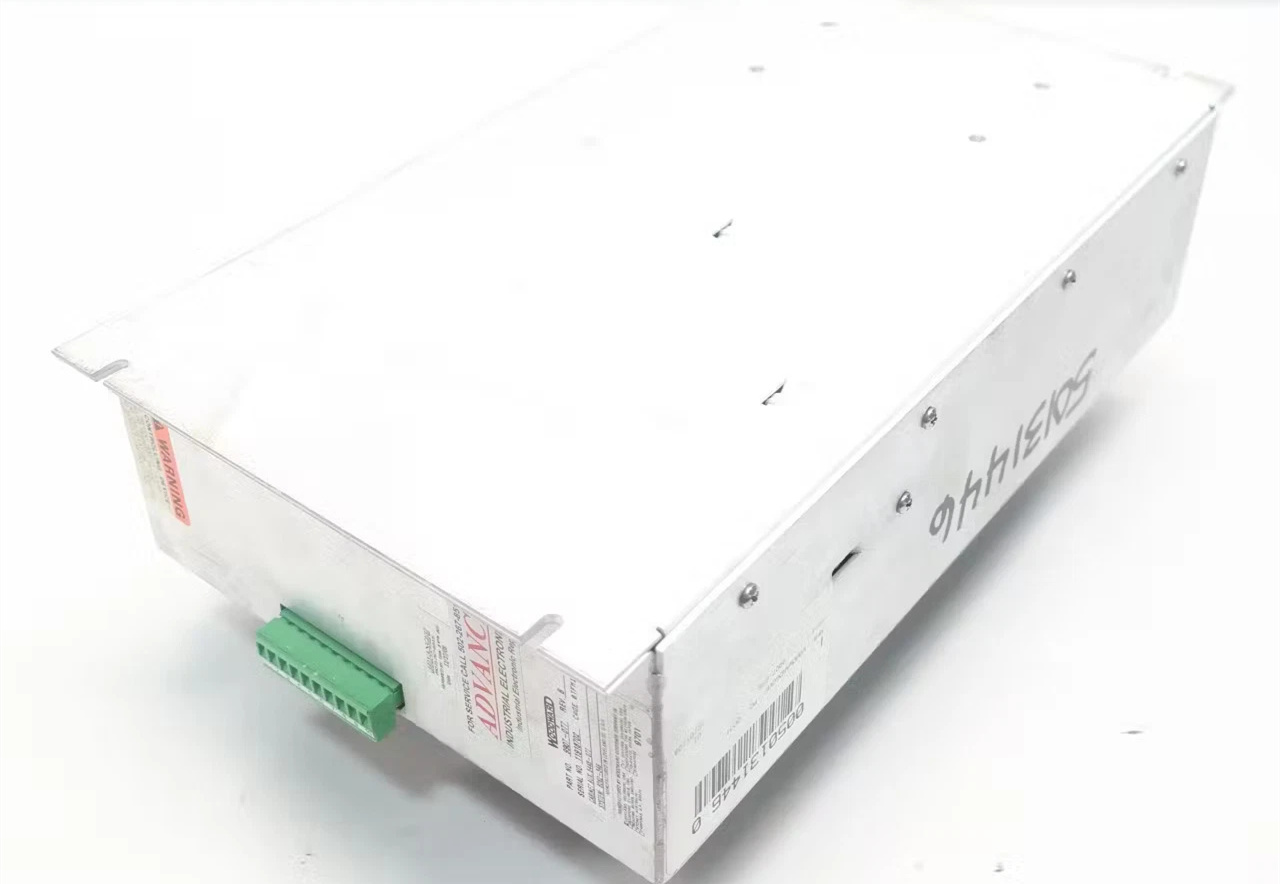

Woodward 9907-077
Woodward 9907-077 is a 24 V DC power supply module in the NetCon series, belonging to Woodward’s “Power Supply” product family. It is mainly used to provide regulated DC power for industrial control systems, electromechanical equipment, and field instruments. This model is marked as “replaces 5437-077″ in the 2024 product catalog and is an upgraded version that replaces the old model.
1. Key Technical Specifications
| Specification | Typical Value / Range |
|---|---|
| Input Voltage | 18 ~ 32 V DC (accepts wide-range DC power supply) |
| Output Voltage | 24 V DC (single or multiple channels) |
| Output Current | 4 A (single channel) or 4 A × 4 A (multiple channels) |
| Power | ≤ 96 W (depending on output configuration) |
| Operating Temperature | –40 °C ~ +85 °C |
| Protection Level | IP20 (for indoor use) |
| Dimensions / Weight | Approximately 120 mm × 80 mm × 30 mm, approximately 0.2 kg |
| Interface | Terminal block (bolt-type), compatible with Woodward standard wiring methods |
| Certifications | CE, UL (depending on region) |
2. Product Features
- Modular Design: Adopts a compact chassis structure, allowing direct plug-in installation in cabinets or field panels and supporting quick replacement.
- Wide Input Voltage Range: The 18-32 V DC wide-tolerance input can adapt to various on-site power supplies, improving system reliability.
- Multiple Output Channels: Can provide single-channel 24 V DC or multi-channel 24 V DC (4 A × 4) configurations to meet the power supply needs of different subsystems.
- High/Low Temperature Adaptability: The operating temperature range covers –40 °C ~ +85 °C, making it suitable for harsh industrial environments.
- Protection Functions: Equipped with overvoltage, undervoltage, overcurrent, short-circuit, and reverse polarity protection to ensure the safety of downstream equipment.
- Easy Maintenance: Terminal block wiring, clear identification, and detachable heat sinks facilitate on-site inspection and component replacement.
3. Structure and Composition
- Housing: Made of aluminum alloy or high-strength plastic, providing good heat dissipation and dust-proof and moisture-proof properties (IP20).
- Power Conversion Module: Uses an efficient switching power supply topology internally to achieve regulated conversion from 18-32 V DC to 24 V DC.
- Output Terminal Block: Bolt-type terminals that support 4 A single-channel or multi-channel parallel output.
- Protection Circuit: Integrates overvoltage, undervoltage, overcurrent, short-circuit, and reverse polarity detection circuits.
- Heat Sink: A metal heat sink is directly attached to the power conversion chip, combined with natural convection heat dissipation.
- Identification Label: Includes model number, input/output specifications, warning signs, and certification marks.
4. Typical Application Fields
| Industry | Specific Applications |
|---|---|
| Industrial Automation | Power supply for PLCs, DCS, field instruments, and sensors |
| Power Systems | Power supply for generator control units and frequency converter front-ends |
| Oil and Gas | Power supply for wellhead control cabinets and valve drives |
| Marine and Offshore Engineering | Power supply for marine automation systems and offshore platform control cabinets |
| Transportation | Power supply for rail transit and railway signal systems |
| Manufacturing | Power supply for robots, CNC machine tools, and packaging equipment |
5. Installation and Maintenance Guidelines
5.1 Installation
- Location Selection: Ensure the installation environment has good ventilation and avoid direct sunlight or high-temperature accumulation.
- Fixing: Use screws to fix the chassis to the reserved holes in the cabinet or panel, keeping it level.
- Wiring:Grounding: The metal housing of the chassis must be reliably grounded to prevent electromagnetic interference and safety hazards.
- Use thick wires (≥ 10 mm²) for the input end and install anti-reverse connection diodes.
- Use bolt terminals with nominal current for the output end to ensure secure fastening.
- Make connections according to the wiring diagram in the product manual (marked with “IN+, IN-, OUT+, OUT-”).
- Inspection: Before power-on, check whether all wiring is secure and the polarity is correct, and confirm that the protective cover is properly installed.
5.2 Commissioning
- Voltage Monitoring: Use a multimeter or on-site monitoring system to confirm that the output 24 V DC is stable within the rated range.
- Load Testing: Operate under rated load (4 A) for 5 minutes and observe whether overcurrent or over-temperature alarms occur.
5.3 Maintenance
| Maintenance Item | Recommended Cycle | Operation Points |
|---|---|---|
| Visual Inspection | Monthly | Check for dust, corrosion, or mechanical damage on the chassis. |
| Wiring Tightening | Every 6 months | Use a torque wrench to check terminal bolts to prevent poor contact due to loosening. |
| Heat Sink Cleaning | Annually | Use a soft brush or compressed air to remove dust from the heat sink and maintain heat dissipation efficiency. |
| Functional Self-Test | Annually | Verify the normal operation of overvoltage, undervoltage, and overcurrent protection through the built-in self-test function or external instruments. |
| Replacement of Aging Components | According to service life (≥ 5 years) | If capacitor bulging or diode aging is found, replace them in a timely manner. |
————————————————————————————————————-
