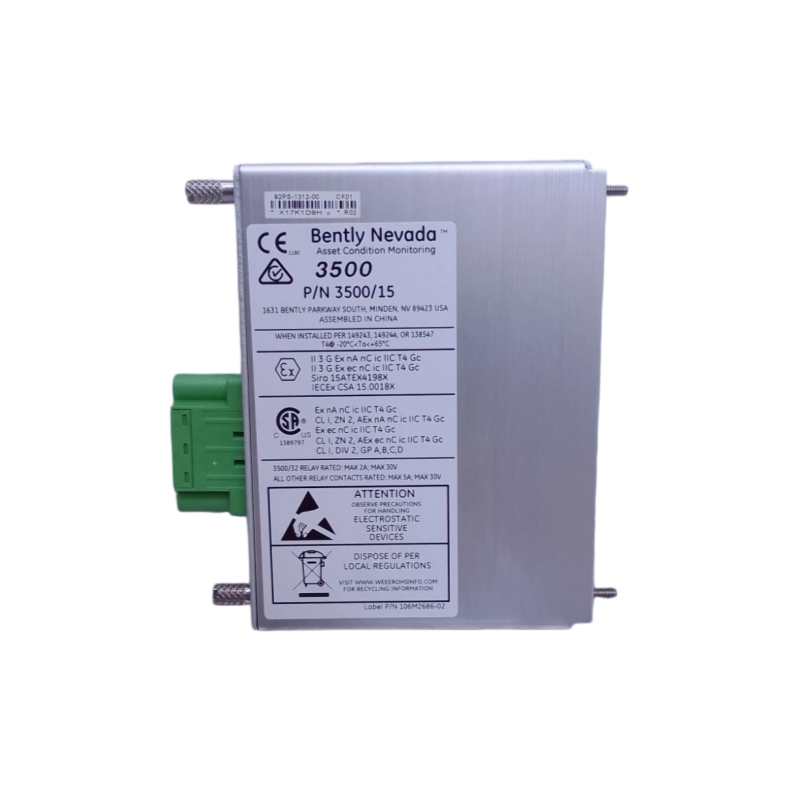

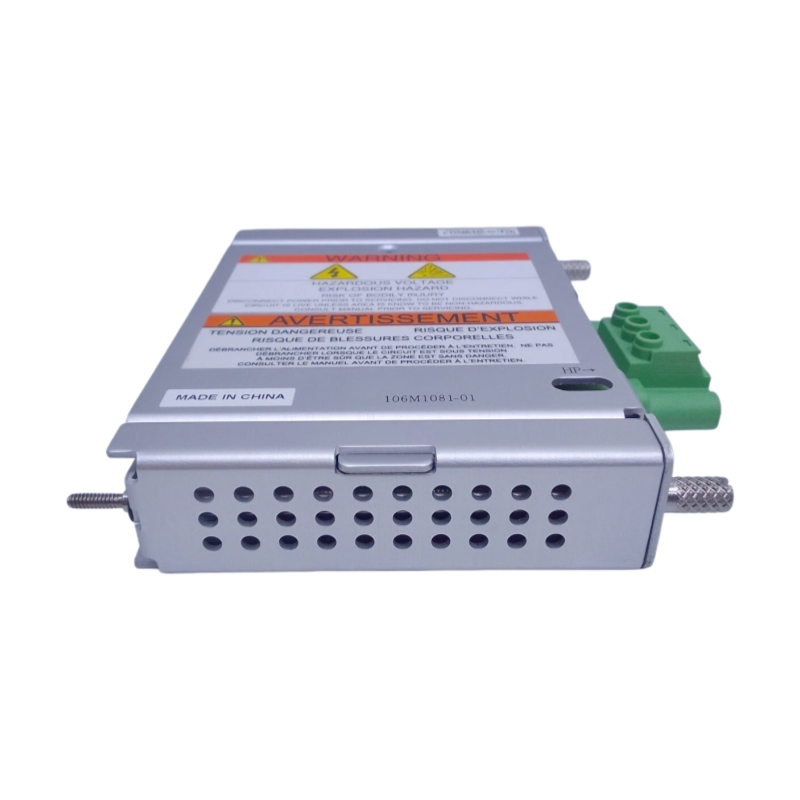

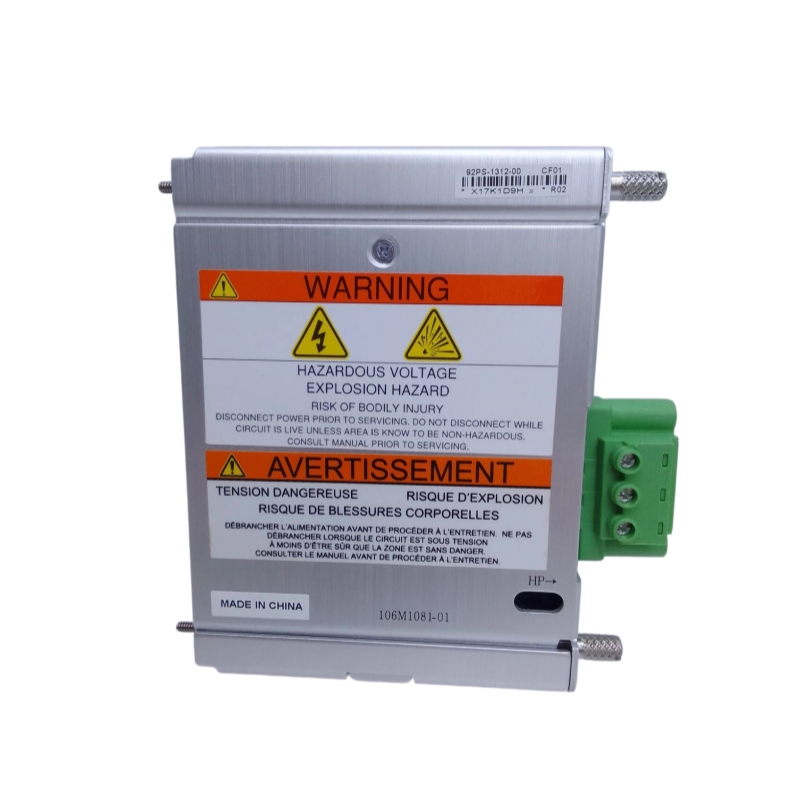

Bently Nevada 106m1081-01 106m2686-02 3500-15 Power Input Module
BENTLY NEVADA 106m1081-01 106m2686-02 3500-15
1. Core Overview
The 106M1081-01 is an indispensable “energy supply station” in the Bently Nevada 3500/15 series system. It is usually installed in the designated slot on the left side of the system rack, responsible for receiving external AC power and outputting stable DC voltage, protecting the entire monitoring system from power fluctuations and interference.
______________________________________________________________________________________________
2. Key Parameters
|
Parameter
|
Specification
|
|---|---|
|
Input Voltage Range
|
85V-264VAC (some documents show 90V-265VAC)
|
|
Input Frequency
|
47-63Hz
|
|
Output Voltage
|
24VDC
|
|
Output Current
|
Maximum 5A
|
|
Power
|
120W (1200W for some models)
|
|
Operating Temperature
|
-40°C – +70°C
|
|
Protection Level
|
IP65-IP67
|
|
Dimensions
|
Approx. 230mm x 165mm x 85mm (specific dimensions vary slightly by version)
|
______________________________________________________________________________________________
3. Product Features
- High Reliability: Equipped with overvoltage, overcurrent, and overtemperature protection to prevent power interference from damaging the monitoring system.
- Strong Versatility: Supports a wide input voltage range, suitable for power grid standards in different regions around the world.
- Safety Isolation: Provides electrical isolation to protect on-site equipment and personnel safety.
- Modular Design: Half-height modular structure, facilitating plug-and-play installation and quick maintenance.
- Certifications: Complies with international standards such as CE, UL, and CSA.
______________________________________________________________________________________________
4. Structure and Composition
- Input Terminal: Receives external AC power (85-264VAC).
- Power Conversion Circuit: Includes rectification, filtering, and voltage stabilization components to convert AC to 24VDC.
- Output Terminal: Provides DC output for connecting various sub-modules of the monitoring system (such as sensor power supply).
- Protective Enclosure: Meets industrial protection levels, dustproof and waterproof.
- Status Indicator Light: Displays the power working status (e.g., operation, fault).
______________________________________________________________________________________________
5. Typical Application Fields
- Oil and Gas: Monitoring key equipment such as oil pumps and compressors.
- Chemical and Power Industry: Used in vibration monitoring systems for boilers and steam turbines.
- Heavy Industry: Mechanical health monitoring in industries such as steel and papermaking.
- Aerospace: Precision monitoring of engines and auxiliary power units.
______________________________________________________________________________________________
6. Installation and Maintenance Recommendations
Installation Location
It must be installed in the designated slot on the left side of the rack (half-height module). Please refer to the system rack drawing to ensure that it does not affect the slots of other modules.
Power Supply Connection
- Input Terminal: Connect to on-site 85-264VAC power supply. Please check whether the input voltage is within the nominal range of the module to avoid overvoltage or undervoltage.
- Output Terminal: Ensure that the output cable (24VDC) is firmly connected to avoid loosening due to vibration.
Environmental Requirements
Install in a well-ventilated location, avoiding long-term exposure to extreme high temperature or humid environments.
Regular Inspection
- Check the tightness of the input and output terminals to prevent loosening caused by industrial vibration.
- Observe the status of the indicator light on the module surface to ensure there is no overheating or abnormal lighting.
————————————————————————————————————-
