BENTLY NEVADA 136180-01 Communication Core Component

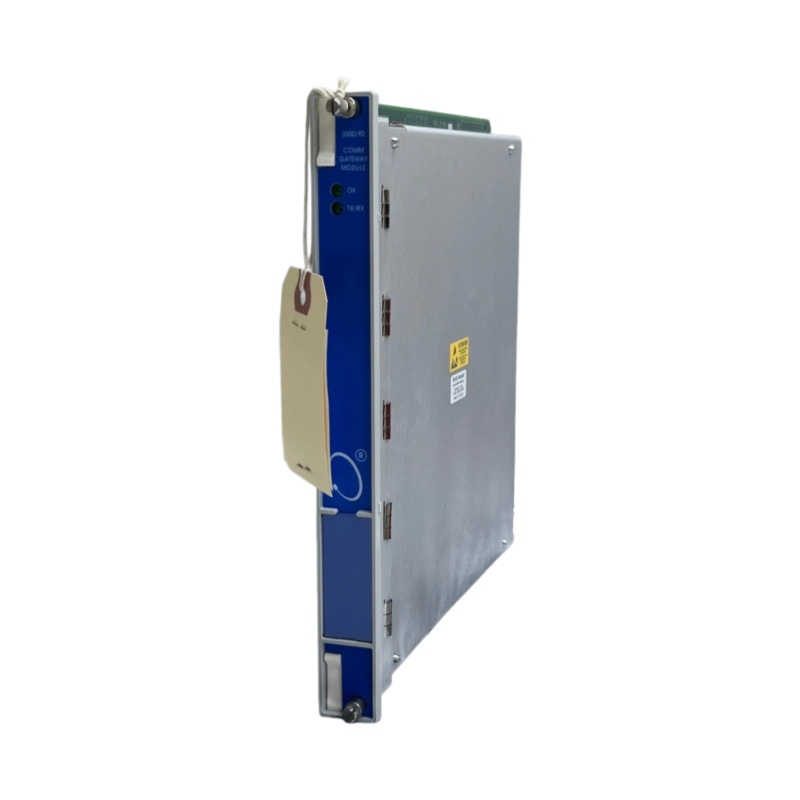

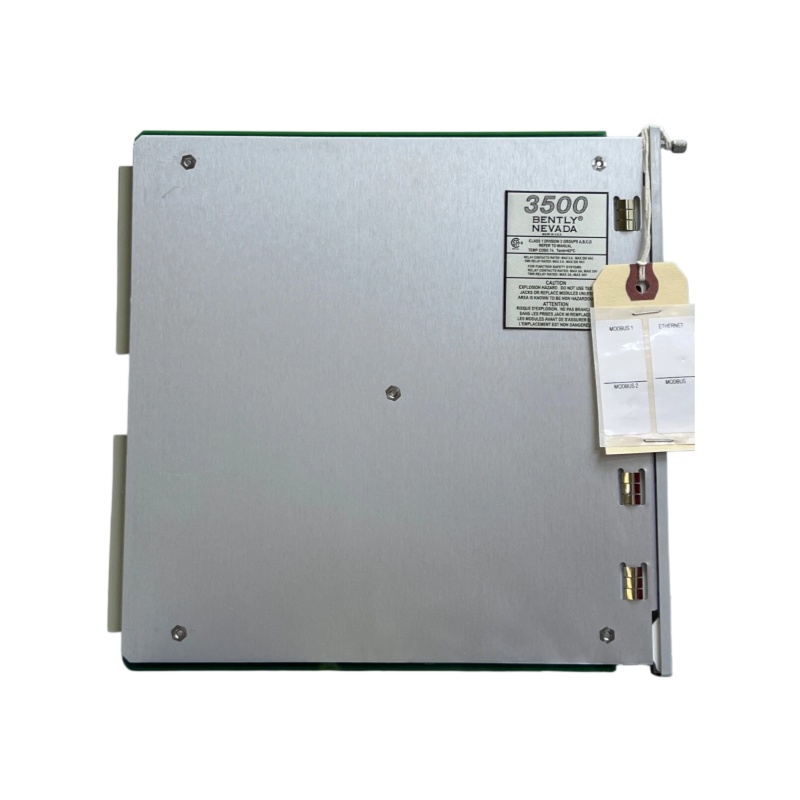

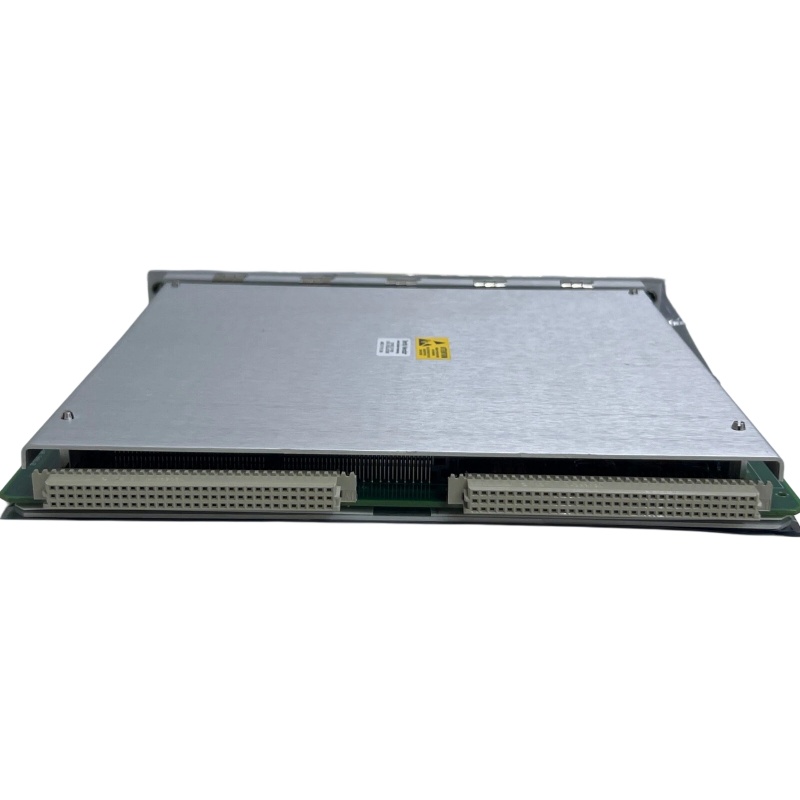

BENTLY NEVADA 136180-01
1. Overview
The BENTLY NEVADA 136180-01 is the core communication component of the 3500 Series. It features a modular design, designed to be installed in the system rack. This module is responsible for transmitting vibration monitoring data (such as bearing temperature, vibration displacement, etc.) to the upper computer or receiving external commands through industrial standard protocols (Modbus/TCP, Modbus RTU/ASCII, OPC UA), enabling remote monitoring and automatic control of industrial equipment.
______________________________________________________________________________________________
2. Parameters and Technical Specifications
|
Parameter
|
Description
|
|---|---|
|
Model
|
136180-01 (3500/92)
|
|
Interfaces
|
1×10/100 Mbps Ethernet, 1×RS-232, 1×RS-485/RS-422
|
|
Protocols
|
Modbus/TCP, Modbus RTU/ASCII, OPC UA, Bently Nevada Proprietary Protocol
|
|
Power Supply
|
24 VDC (typical), Power Consumption: 5W
|
|
Environment
|
Operating Temperature: -20°C to 65°C (some documents indicate -40°C to 85°C); Protection Class: IP65
|
|
Dimensions
|
Approximately 25cm × 18cm × 12cm (specific dimensions may vary slightly by version)
|
|
Installation
|
3500 Series Rack Mount (Rear Mount)
|
______________________________________________________________________________________________
3. Product Features
- Multi-Protocol Support: Compatible with Modbus and OPC UA simultaneously, adapting to various industrial network environments and facilitating integration into control systems of different brands.
- High Reliability: Adopts redundant design (for some models) and has anti-electromagnetic interference capability, suitable for key industries such as power, petroleum, and nuclear energy.
- Easy Maintenance: Supports remote diagnosis and parameter configuration, reducing the workload of on-site maintenance.
______________________________________________________________________________________________
4. Structure and Composition
- Communication Unit: Includes Ethernet and serial interface circuits, responsible for sending and receiving data.
- Power Supply Module: Responsible for voltage stabilization and distribution of 24V DC power supply.
- Processing Unit: Built-in microprocessor, runs communication protocol stacks, and processes data conversion.
______________________________________________________________________________________________
5. Application Areas
- Energy Industry: Vibration monitoring of steam turbines and generators in thermal power stations and nuclear power stations.
- Petrochemical Industry: Key equipment such as compressors and pumping stations.
- Manufacturing Industry: Condition monitoring of rolling mills, fans, papermaking machinery, etc.
______________________________________________________________________________________________
6. Installation and Maintenance
Installation
Insert the module into the rear of the 3500 Series rack (Rear Mount), fix it with screws; connect the Ethernet or serial cable to the external network.
Configuration
Configure the IP address, serial port parameters and communication protocols through dedicated software (such as Bently Nevada Insight Desktop) or upper computer software.
Maintenance
Regularly check the connections of power cables and network cables, monitor the module status lights; use the remote diagnosis function to view error logs.
————————————————————————————————————-
