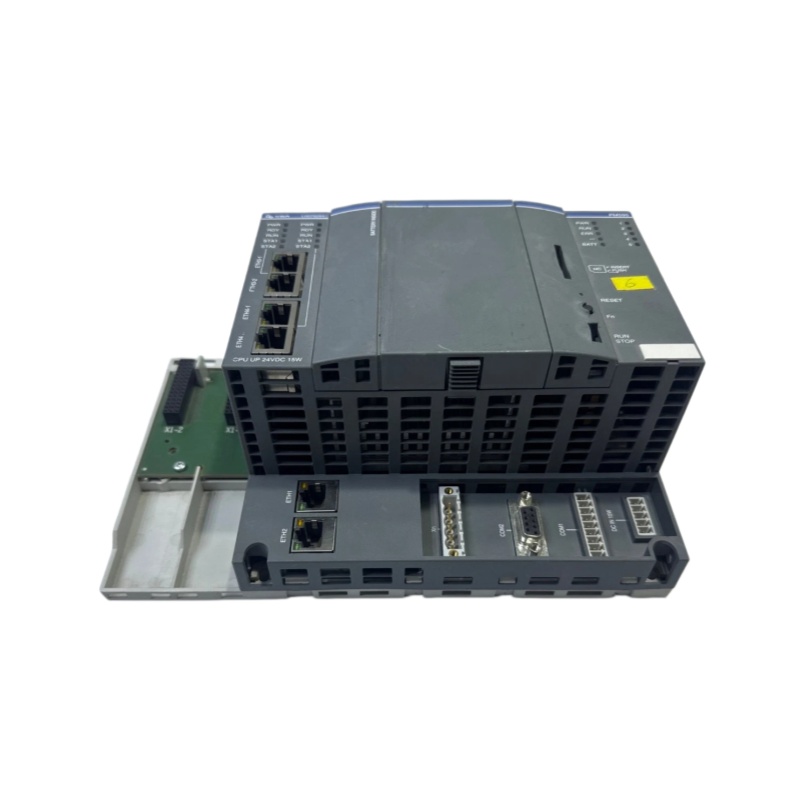

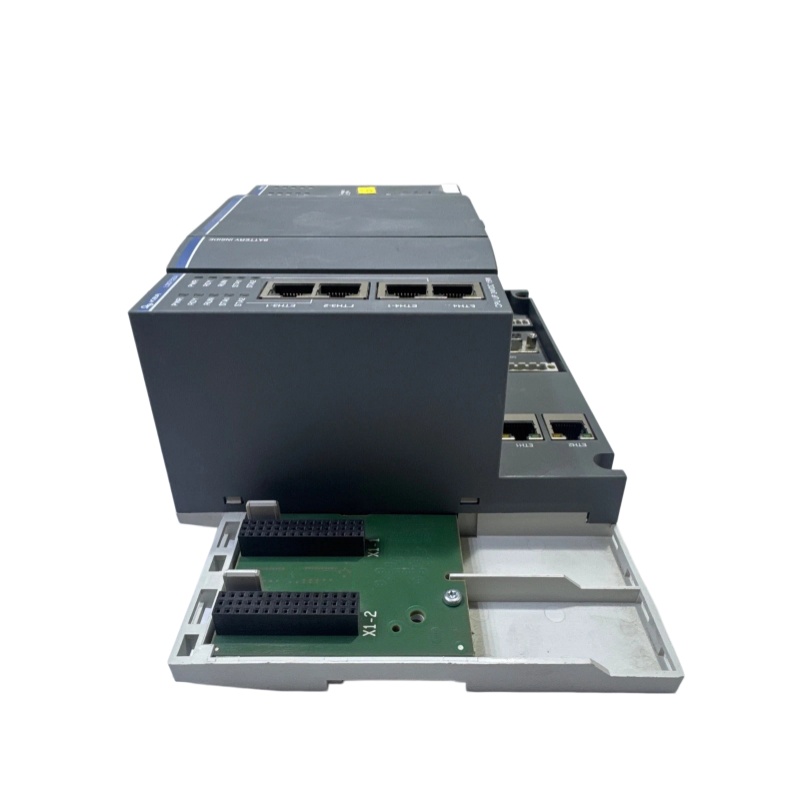

ABB PM595-4ETH-F 1SAP155500R3279 Processor Module
ABB PM595-4ETH-F 1SAP155500R3279
1. Product Overview
The ABB PM595-4ETH-F (Model No. 1SAP155500R3279) is a high-performance processor module specially developed by ABB for high-end automation scenarios, belonging to the AC500 series Programmable Logic Controller (PLC). Serving as the core of industrial control systems, this module features powerful data processing capabilities and multi-protocol communication functions, meeting the stringent control requirements of complex industrial automation applications.
2. Technical Parameters
|
Parameter Item
|
Specification Description
|
|---|---|
|
CPU Architecture
|
ARM Cortex-A8 high-performance processor (supports multi-core complex task processing)
|
|
Processor Frequency
|
800 MHz (1.3 GHz for partial batches, subject to batch differences)
|
|
Program Memory
|
1 MB or 16 MB (variations exist in different official data sources)
|
|
Data Storage
|
256KB RAM / 256MB DDR3
|
|
Flash Storage
|
512 MB (for firmware, application programs and data storage)
|
|
External Storage
|
MicroSD card slot (maximum support for 32GB storage)
|
|
Power Supply Voltage
|
24VDC
|
3. Product Features
3.1 Communication Functions
- Equipped with 4 independent Ethernet ports, supporting mainstream industrial protocols including Profinet and Ethernet/IP
- Built with 2 RS232/485 serial communication interfaces
- 2 Ethernet-based interfaces with built-in switch and downloadable protocol functions
- Supports TSN (Time-Sensitive Networking) technology, realizing microsecond-level high real-time task response
- Maximum expansion capacity of 4096 I/O points
3.2 Programming and Compatibility
- Fully compatible with CoDeSys programming environment
- Compliant with IEC 61131-3 international programming standards
- Compatible with all modules of the ABB AC500 series PLC system
3.3 Reliability and Safety
- Supports dual-CPU hot standby redundancy to ensure uninterrupted system operation
- Built-in intelligent diagnosis system for real-time operating status monitoring
- Fault early warning accuracy up to 99%
- Compliant with IEC 62443 industrial network security standards
- Obtained SIL3 functional safety certification
- IP20 protection grade, operating temperature range: -25℃ to 70℃
4. Structure and Composition
The ABB PM595-4ETH-F controller consists of the following core components, with flexible expansion performance:
- PM595 Processor Module: The core arithmetic and processing unit of the control system, responsible for program operation and logic control
- Communication Interface Module: Integrated Ethernet interfaces and serial communication interfaces for data transmission and device interconnection
- Coupler Slots: Reserved 2 coupler slots for functional expansion
- I/O Expansion Capability: Supports expansion of up to 10 I/O modules to meet multi-point control demands
5. Application Fields
With high stability and powerful expandability, this controller is widely applied in various industrial automation scenarios:
- Automobile manufacturing industry
- Chemical industry
- Logistics automation system
- Electric power industry
- Wind power generation equipment
- Solar tracking system
- High-voltage switch production
- Large-scale ship equipment
- Tunnel automation control
- Traffic control system
- Packaging machinery equipment
- Printing machinery equipment
- Industrial robot control system
6. Installation and Maintenance
6.1 Installation Precautions
- All installation and maintenance operations must be implemented in accordance with official technical specifications, industry norms and relevant international standards (e.g., EN 60204-1)
- Operations shall only be performed by professional and skilled electricians
- Improper installation and maintenance may cause personal injury and permanent damage to the equipment
6.2 Maintenance Instructions
- The official detailed installation manual contains 262 pages, covering equipment installation, disassembly, dimension parameters, wiring connection, power supply configuration, input and output settings, cleaning methods, certification information and recycling specifications
- Supports remote firmware upgrade to realize convenient equipment iteration and function optimization
- Provides full life-cycle service to assist enterprises in intelligent industrial transformation
- Built-in AI algorithm to realize intelligent predictive maintenance and reduce equipment failure rate
————————————————————————————————————-
