ABB REC603 REC603A1AAAG1A

Overview

Main Parameters (REC603 Series)

Product Features

• Powerful Wireless Communication: Built-in GPRS module supports end-to-end VPN secure connection, ensuring encrypted and safe remote data transmission.
• Multi-Device Control Capability: The REC603 can remotely monitor and control up to 3 equipment objects, while the REC601 model only supports a single object, delivering broader application scalability.
• Intelligent Battery Monitoring: Integrated battery status monitoring function optimizes the service life of backup batteries and scientifically adjusts equipment maintenance intervals.
• Durable & Rugged Structure: Adopts an integrated robust aluminum housing, which adapts to complex and harsh outdoor and industrial operating environments.
• Local HMI Interface: Equipped with a dedicated local HMI panel and multi-functional LED status indicators (VPN, Power/Error, Function, Ethernet, etc.) for real-time equipment status observation.
• Easy Installation & Maintenance: Standard DIN rail mounting design simplifies on-site installation, disassembly and daily maintenance operations.
• Flexible Configuration: Compatible with multiple installation modes and mainstream power communication protocols to meet diverse on-site application requirements.
• Professional Fault Management: Supports connection with external Fault Point Indicators (FPI) to improve power grid fault detection and processing efficiency.

Structure and Composition

• Housing: High-strength integrated aluminum housing with excellent dustproof, waterproof and anti-corrosion performance for harsh working conditions.
• Antenna: External antenna installed on the top of the device to ensure stable and high-quality wireless communication signal reception and transmission.

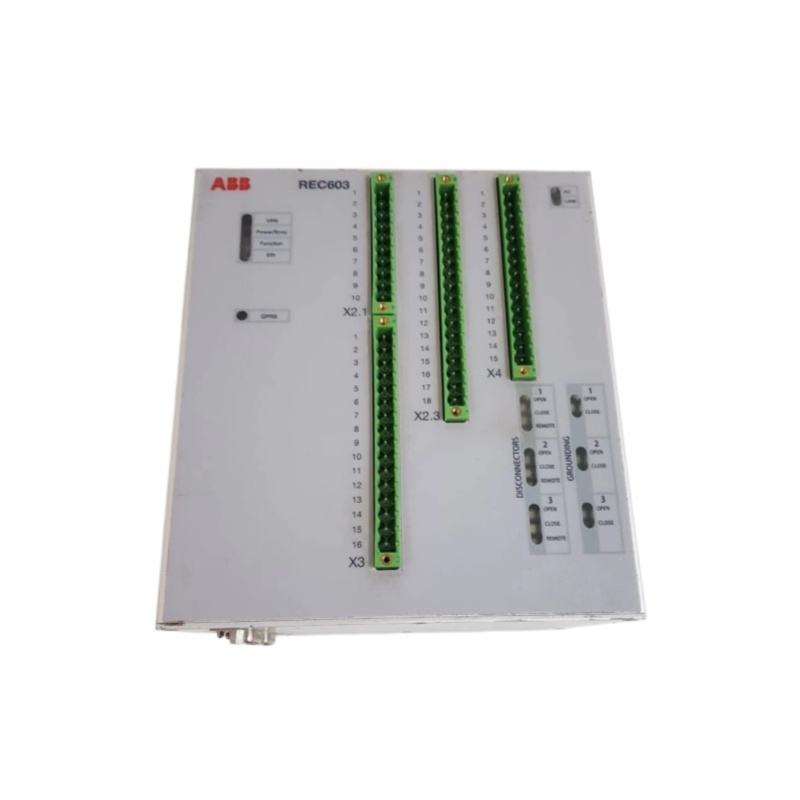

• Front Panel: Integrates ABB brand logo, product model marking, LED status indicators and iPRO function button for intuitive operation and status checking.
• Terminal Blocks: Equipped with X2, X3 and other terminal blocks for reliable connection of power supply, signal transmission and I/O signals.
• Status Indicators: Independent LED indicators for DISCONNECTORS and GROUNDING status, with separate OPEN, CLOSE and REMOTE status prompts for each channel.
• Network Interface: Standard Ethernet port supports manual and automatic IP address configuration for network access.
• Communication Ports: Built-in serial ports, with optional expanded RS232/422/485 communication ports to adapt to different communication scenarios.

Application Fields

• Secondary Substation Automation: Applied to automatic monitoring and data acquisition of secondary substations in power distribution networks.
• Ring Main Unit Monitoring: Realizes remote control, status monitoring and fault indication of Ring Main Units (RMUs).
• Pole-Mounted Switch Control: Suitable for remote monitoring and intelligent control of overhead pole-mounted switches in distribution networks.
• Disconnector Control: Supports remote opening and closing operation of power system disconnectors.
• Distribution Network Monitoring: Improves the overall operation quality of power distribution systems and effectively reduces the scope and duration of power outages.
• Equipment Renovation and Upgrade: Ideal for intelligent renovation and upgrading of traditional equipment in existing secondary substations.

Installation and Maintenance

Installation Requirements

• Installation Method: Adopt standard DIN rail mounting to ensure firm and stable equipment fixation.
• Power Connection: Support two power supply modes of 80-265V AC/DC and 18-80V DC, meeting diverse on-site power conditions.
• Antenna Installation: The external antenna shall be installed correctly and reasonably to avoid signal shielding and ensure stable wireless communication performance.
• I/O Connection: Connect external power distribution equipment and signal lines through X2 and X3 terminal blocks in accordance with wiring specifications.
• Communication Configuration: Complete IP address and network parameter configuration to realize stable access to SCADA/DMS systems.
• Environmental Requirements: The installation environment shall comply with the equipment’s specified temperature, humidity and protection grade standards to avoid abnormal operation caused by environmental factors.

Maintenance Guidelines

• Regular Battery Maintenance: Conduct periodic battery status testing, check battery health, and replace aging batteries in a timely manner.
• Firmware Update: Regularly upgrade device firmware to optimize functional performance, repair potential vulnerabilities and ensure system security.
• Wiring Inspection: Periodically check the connection tightness of I/O terminal blocks and wiring lines to prevent signal failure caused by loose wiring.
• Cleaning Maintenance: Regularly clean the device housing, interfaces and indicators to keep the equipment clean and ensure normal heat dissipation and signal transmission.
• Operation Log Check: Regularly view and analyze device operation logs to quickly discover and eliminate potential operating faults and hidden dangers.
