Abb 1MRK000005-380 1MRK000614-ABr00 Hardware Module
ABB 1MRK000005-380
1. Product Overview
1.1 ABB 1MRK000614-ABr00 Binary Output Module
The ABB 1MRK000614-ABr00 is a professional hardware module dedicated to generating and outputting binary signals, belonging to the I/O module series of ABB industrial automation control systems. Manufactured by ABB in Sweden, this module adopts relay output mode and is widely applicable to power and industrial automation sectors.
1.2 ABB 1MRK000005-380 PCB Control Board
The ABB 1MRK000005-380 is a matching PCB control board that is generally used in conjunction with the 1MRK000614-ABr00 binary output module. As a core component of the control system, it undertakes signal processing and logic control functions to ensure the stable operation of the entire module system.
2. Main Technical Parameters
2.1 Technical Specifications of ABB 1MRK000614-ABr00
|
Parameter Item
|
Specification Value
|
|---|---|
|
Product Part Number
|
1MRK000614-ABr00
|
|
Product Type
|
Binary Output Module
|
|
Number of Output Relays
|
24
|
|
Operating Temperature Range
|
-25°C to 70°C
|
|
EMC Emission Class
|
Class A
|
|
Mechanical Class
|
Class 1
|
|
Weight
|
0.52kg
|
|
Origin
|
Sweden
|
|
Warranty Period
|
12 Months
|
2.2 Matching Board Information
|
Parameter Item
|
Specification Value
|
|---|---|
|
Product Part Number
|
1MRK000005-380
|
|
Type
|
PCB Control Board
|
|
Matched Module
|
1MRK000614-ABr00
|
3. Product Features
3.1 High-Performance Output
Equipped with 24-channel relay outputs, the module can control 24 external devices or actuators simultaneously. It outputs standard high and low-level binary signals, enabling precise and stable equipment control for industrial scenarios.
3.2 Industrial-Grade Reliability
It supports a wide operating temperature range from -25°C to 70°C, adapting to complex and harsh industrial environments. With EMC Class A electromagnetic compatibility performance, it effectively resists external electromagnetic interference. The product conforms to Mechanical Class 1 standards, featuring a sturdy and durable mechanical structure for long-term stable operation.
3.3 Easy System Integration
Adopting a standardized modular design, the module can be quickly and seamlessly integrated into various industrial automation control systems. It is versatile for multiple application scenarios including power electronics, motor control, and lighting system management.
3.4 Reliable After-Sales Service
The product comes with a 12-month official warranty to guarantee product quality and operational safety. Global shipping services are supported via mainstream logistics providers including DHL, UPS, and FEDEX to meet customer delivery needs worldwide.
4. Structure and Composition

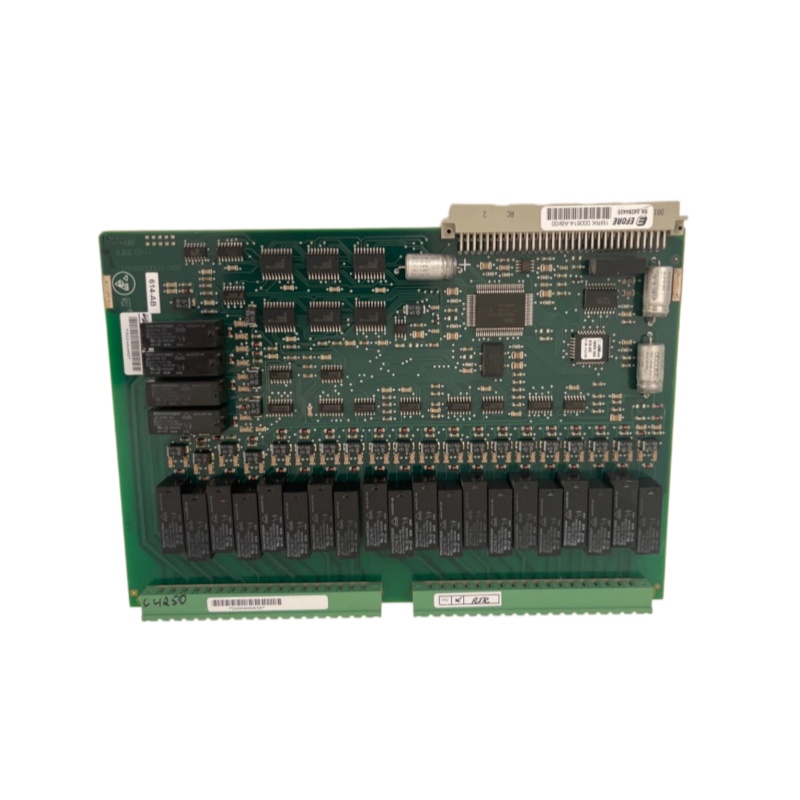

4.1 Hardware Structure of the Main Module
Designed with advanced Printed Circuit Board (PCB) technology, the main module consists of four core components:
- Relay Output Group: 24 independent relays for flexible on-off control of external equipment
- Signal Processing Circuit: Responsible for input signal conversion and accurate output signal control
- Power Management Unit: Provides stable and continuous power supply for the entire module to avoid operational failures caused by power fluctuations
- Interface Connector: Serves as a connection terminal for communication and power connection between the module, external equipment and control systems

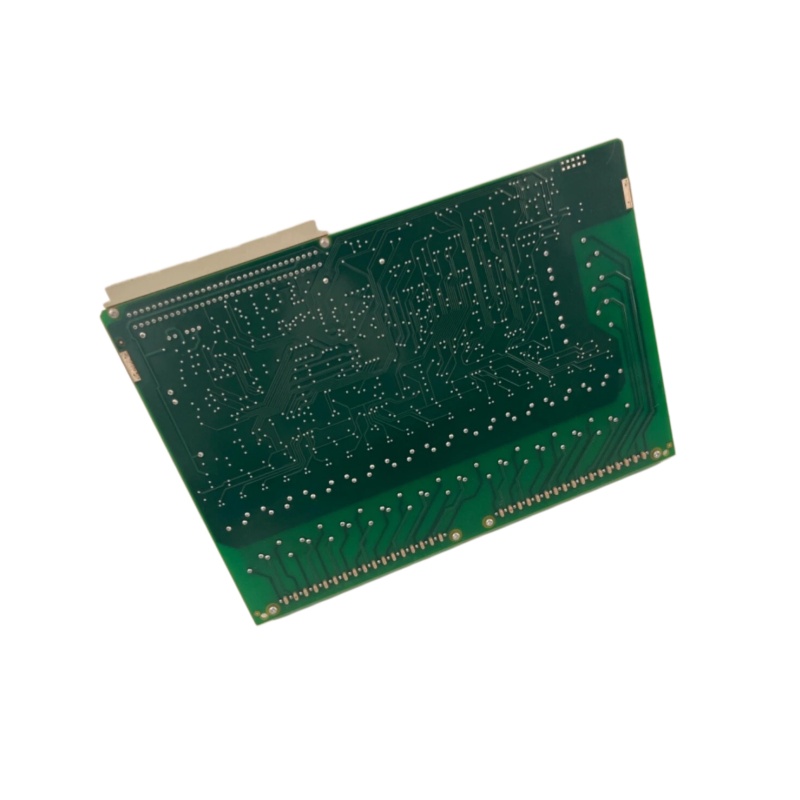

4.2 1MRK000005-380 PCB Control Board
This matching control board adopts high-quality FR4 material and multi-layer circuit board structure, with OSP (Organic Solderability Preservative) surface treatment technology. It features high structural reliability and strong anti-interference capability, ensuring stable signal transmission and long-term reliable operation in complex industrial environments.
5. Application Fields
This series of ABB modules is widely adopted in multiple industrial fields due to its high stability and compatibility, with detailed application scenarios as follows:
|
Application Field
|
Specific Applications
|
|---|---|
|
Industrial Automation
|
Production line equipment control, robot control, sensor signal control
|
|
Power Electronic Systems
|
Motor operation control, power distribution management, heating system control
|
|
Lighting Systems
|
Intelligent light control, industrial and commercial lighting management
|
|
Chemical Industry
|
Production process control, safety monitoring and protection systems
|
|
Oil & Gas Industry
|
Oil and gas extraction control, pipeline operation monitoring
|
|
Metallurgical Industry
|
Metallurgical production equipment operation control
|
|
Transportation Industry
|
Rail transit control, traffic signal system management
|
|
Building Automation
|
Intelligent building control system operation
|
|
Mechanical Equipment Manufacturing
|
Automated equipment control and real-time monitoring
|
6. Installation and Maintenance Guidelines
6.1 Installation Requirements
Installation Environment: The module shall be installed in a dry, corrosion-free and temperature-suitable environment to avoid damp, dusty and corrosive working conditions.
Installation Method: Standard guide rail mounting or panel mounting is recommended for stable and fixed installation.
Wiring Precautions:
- Ensure correct power polarity connection to prevent module damage
- Fasten all output terminal wiring firmly to avoid loose contact and signal failure
- Reserve sufficient electrical clearance to meet industrial safety standards
6.2 Daily Maintenance Guidelines
|
Maintenance Item
|
Precautions
|
|---|---|
|
Cleaning
|
Do not use organic solvents to clean the PCB board to avoid corrosion and component damage
|
|
Inspection
|
Regularly check whether the connecting terminals are loose or aging
|
|
Fault Handling
|
If the PCB scratch depth exceeds 0.5mm, the product must be returned to the factory for professional repair
|
|
Storage
|
Store the module in a dry environment to prevent moisture absorption and circuit short circuit
|
|
Replacement
|
Replace damaged modules in a timely manner to ensure the continuous and stable operation of the control system
|
————————————————————————————————————-
