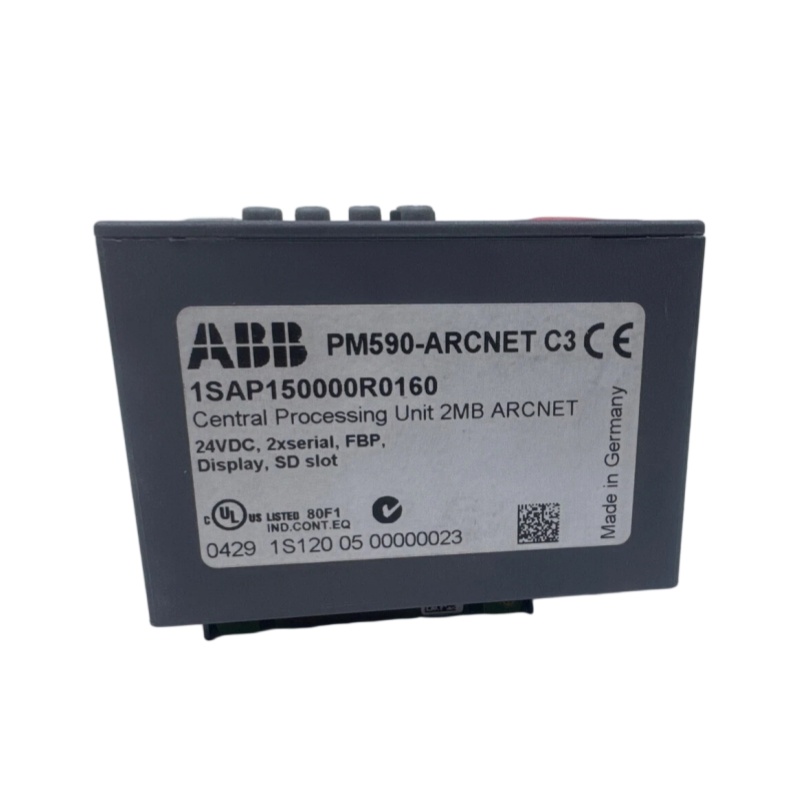

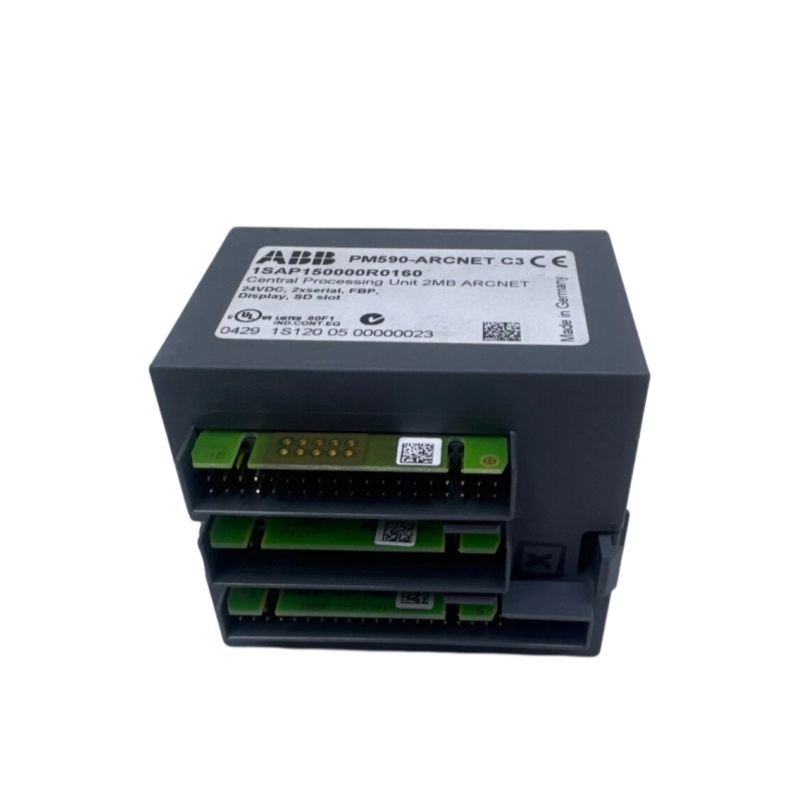

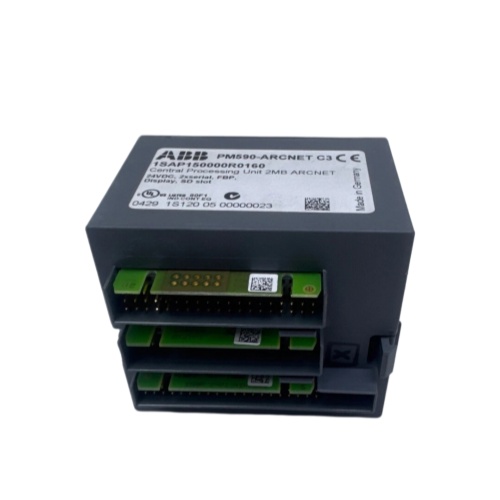

ABB 1SAP150000R0160 PM590 Medium-Class Processor Module
ABB 1SAP150000R0160 PM590
1. Product Overview
2. Main Technical Parameters
|
Parameter Item
|
Technical Specifications
|
|---|---|
|
Model
|
PM590-ARCNET
|
|
Order Number
|
1SAP150000R0160 / 1SAP150000R0260
|
|
Memory Capacity
|
2 MB Flash EPROM (User program storage)
|
|
User Data Storage Space
|
2560 KB
|
|
Operating Voltage
|
24 VDC
|
|
Communication Interface
|
ARCNET network, 2 RS232/485 serial ports
|
|
Storage Interface
|
F-card slot (Flash card), SD card slot (partial versions)
|
|
Display Screen
|
Integrated LCD display
|
|
Local AI/AO Capacity
|
160 analog input points, 160 analog output points
|
|
Local DI/DO Capacity
|
320 digital input points, 240 digital output points
|
|
Expansion Capability
|
Expandable to a maximum of 10 I/O modules
|
|
Operating Temperature Range
|
-40℃ to +70℃
|
|
Product ID
|
10083376
|
3. Product Features
- High-Performance Processor: Equipped with an ARM architecture processor, it features fast processing speed and powerful computing capability, supporting complex control algorithms.
- Modular Design: The modular structure facilitates system integration, expansion and daily maintenance.
- Rich Communication Interfaces: Supports the ARCNET communication protocol and is equipped with RS232/RS485 serial ports, enabling connection with various types of equipment.
- Large-Capacity Storage: Built-in 2MB Flash memory meets the program storage requirements of medium and large-scale automation projects.
- Intuitive Display Function: The integrated LCD display supports on-site parameter viewing and equipment diagnosis.
- High Reliability: Adopts anti-interference design and supports wide-temperature operation, adapting to harsh industrial environments.
- Multiple Programming Language Support: Complies with IEC 61131-3 standard programming languages, including Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST) and more.
- Powerful Diagnosis Function: Built-in fault detection function simplifies system maintenance and fault troubleshooting.
4. Structure and Composition

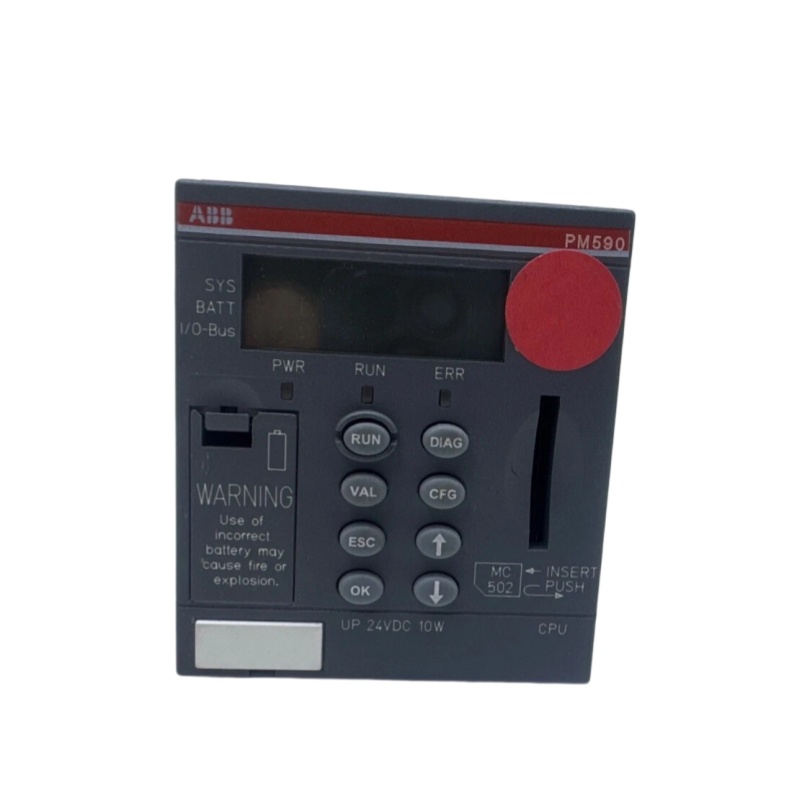

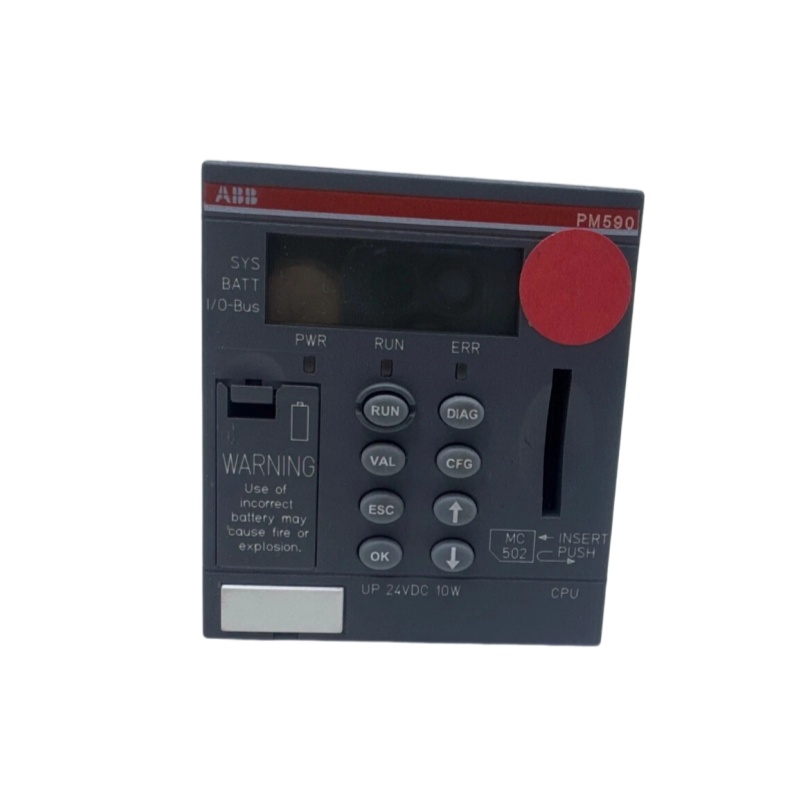

PM590-ARCNET Module Structure
- CPU Processor Unit
- Memory Module (Flash EPROM)
- Communication Interface Module (ARCNET, RS232, RS485)
- LCD Display Screen
- F-Card Slot / SD Card Slot
- I/O Connection Terminals
- Power Input Terminals (24VDC)
- Status Indicators (RUN, STOP, ERR, COM)
5. Application Fields
|
Industry Field
|
Typical Application Scenarios
|
|---|---|
|
Metallurgical Industry
|
Steel rolling production line control, furnace temperature control, equipment monitoring
|
|
Petrochemical Industry
|
Process control, pipeline monitoring, valve control
|
|
Power Industry
|
Power plant control system, power distribution automation
|
|
Water Treatment
|
Sewage treatment, pump station control, water quality monitoring
|
|
Manufacturing Industry
|
Assembly line control, robot control, packaging equipment operation
|
|
Environmental Engineering
|
Exhaust gas and wastewater treatment monitoring
|
|
Building Automation
|
HVAC system control, building automatic control
|
|
Agricultural Automation
|
Greenhouse temperature control, irrigation system control
|
6. Installation and Precautions
6.1 Installation Steps
6.1.1 Pre-Installation Inspection
- Verify the module model and order number (1SAP150000R0160) are consistent with the purchase specification
- Check the module appearance for damage, deformation or defective parts
- Confirm the power supply voltage is 24VDC with a fluctuation range within ±20%
6.1.2 Installation Preparation
- Prepare a standard 35mm DIN rail (or adopt panel mounting method)
- Ensure the installation environment meets the operating temperature requirement (-40℃ to +70℃)
- Select a well-ventilated installation position, avoiding high-temperature and humid environments
6.1.3 Module Installation
- Align the module with the DIN rail and push upward until a “click” sound is heard to complete locking
- Ensure the module is firmly fixed without looseness
- Reserve sufficient heat dissipation space (at least 50mm above and below the module)
6.1.4 Wiring Operation
- Connect the 24VDC power supply and strictly distinguish positive and negative polarities
- Wire the ARCNET communication cable (twisted shielded cable with 150Ω terminal resistance)
- Connect RS232/485 serial port equipment
- Connect the I/O expansion module bus
6.1.5 Power-On Inspection
- Observe whether the RUN indicator flashes normally
- Confirm the LCD display works properly
- Check the status of all communication indicators
