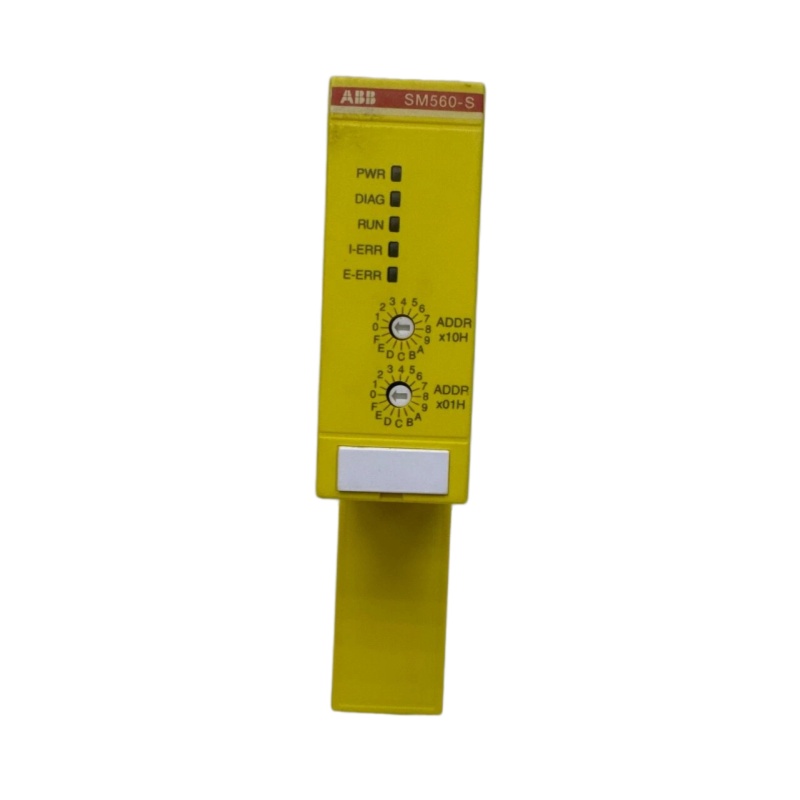

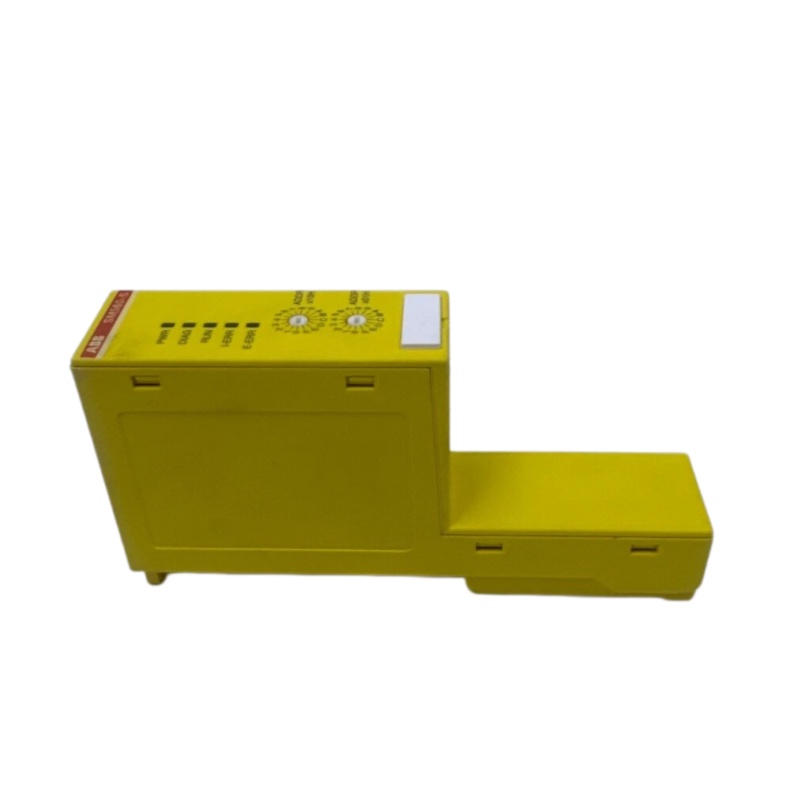

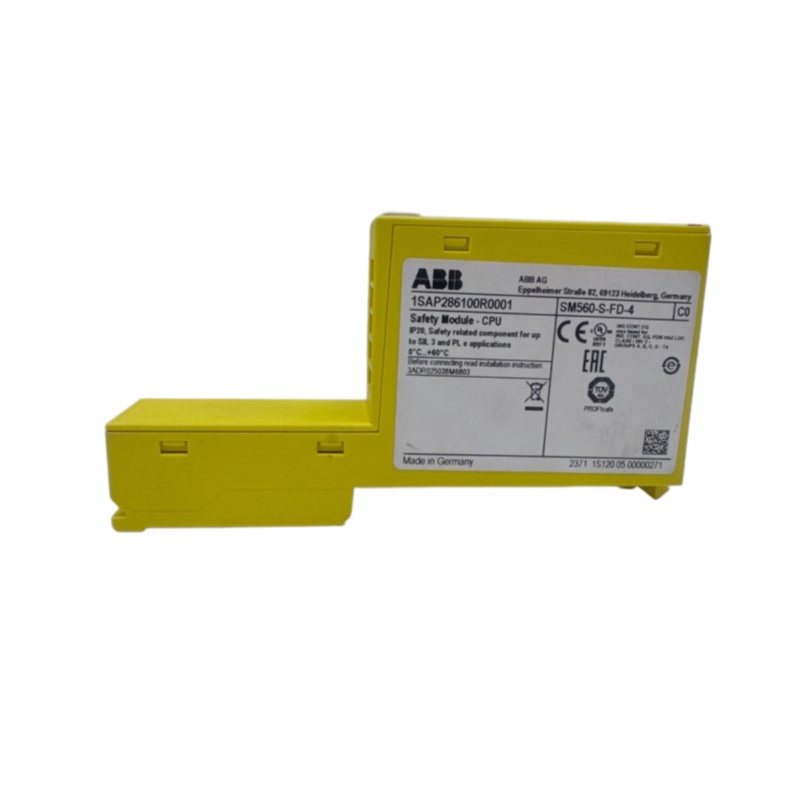

ABB SM560-S-FD-4 1SAP286100R0001 CPU module
ABB SM560-S-FD-4 1SAP286100R0001
Main Technical Parameters
Electrical Parameters
|
Parameter Item
|
Specification Value
|
|---|---|
|
Process and Power Supply Voltage
|
24V DC (Ripple < 10%)
|
|
Voltage Fluctuation Range
|
-25% – +30%
|
|
Absolute Maximum Rating
|
18V – 31.2V DC
|
|
Reverse Polarity Protection
|
Available
|
|
Power Interruption Tolerance Time
|
<10ms
|
|
Interval Between Two Interruptions
|
>1s
|
Environmental Conditions
|
Parameter Item
|
Specification Value
|
|---|---|
|
Operating Temperature
|
0°C – +60°C
|
|
Storage Temperature
|
-40°C – +85°C
|
|
Relative Humidity
|
Max. 95% (Non-condensing)
|
|
Operating Atmospheric Pressure
|
>800hPa
|
|
Operating Altitude
|
<2000 meters
|
Mechanical Parameters
|
Parameter Item
|
Specification Value
|
|---|---|
|
Installation Method
|
Horizontal installation (Derating required for vertical installation, maximum operating temperature +40°C)
|
|
Ingress Protection Rating
|
IP 20
|
|
Weight
|
0.100kg
|
|
Dimensions
|
135mm (W) × 70.5mm (H) × 135mm (D)
|
Product Features
1. Safety Level and Certification
- Compliant with SIL 3 (Safety Integrity Level 3)
- Obtained CE and cUL certifications
- Conforms to Overvoltage Category II and Pollution Degree 2 standards
2. Core Functional Characteristics
- Support for 4 PROFIsafe networks: Enables simultaneous communication with up to 4 IO Controllers/F-Hosts (Masters)
- F-Device function: Provides 32 F-Device instances for secure CPU-to-CPU communication
- High-performance processor: Typical execution speed of 0.1ms per 1000 instructions
- User program memory: 1.3MB
3. Communication Capabilities
- Supports PROFINET/PROFIsafe safety communication protocols
- Enables secure CPU-to-CPU communication with other safety CPUs
- Compatible with CM589-PNIO and CM589-PNIO-4 communication modules
4. Diagnosis and Self-test
- Implements startup and operational tests (including program flow control, RAM, CPU and other core components)
- Supports program CRC check
- Allows reading of configured power interruption settings
- Supports safety shutdown function triggered by application programs
Structure and Composition
- CPU Core Unit: High-performance industrial-grade processor
- Safety Memory: Including working memory and retentive memory
- Communication Interface: Used for PROFINET/PROFIsafe network connection
- I/O Bus Interface: For connecting AC500 series expansion modules
- Configuration DIP Switch: For hardware address setting (F_Dest_Add: 1-255)
Application Fields
Applicable Industries
- Industrial Automation
- Process Control
- Safety Instrumented Systems (SIS)
- Manufacturing System Automation
Typical Application Scenarios
- Medium-scale automatic control systems
- High-risk industrial environments requiring SIL 3 safety integrity level
- Production lines with multi-station safety communication requirements
- Key equipment control with safety interlock protection requirements
