1. Core Overview

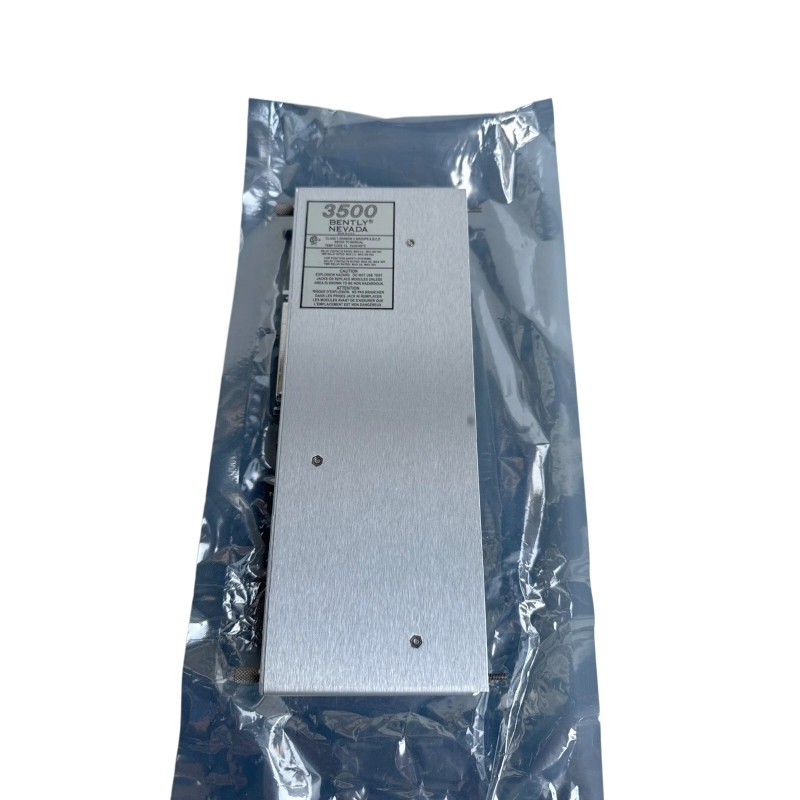

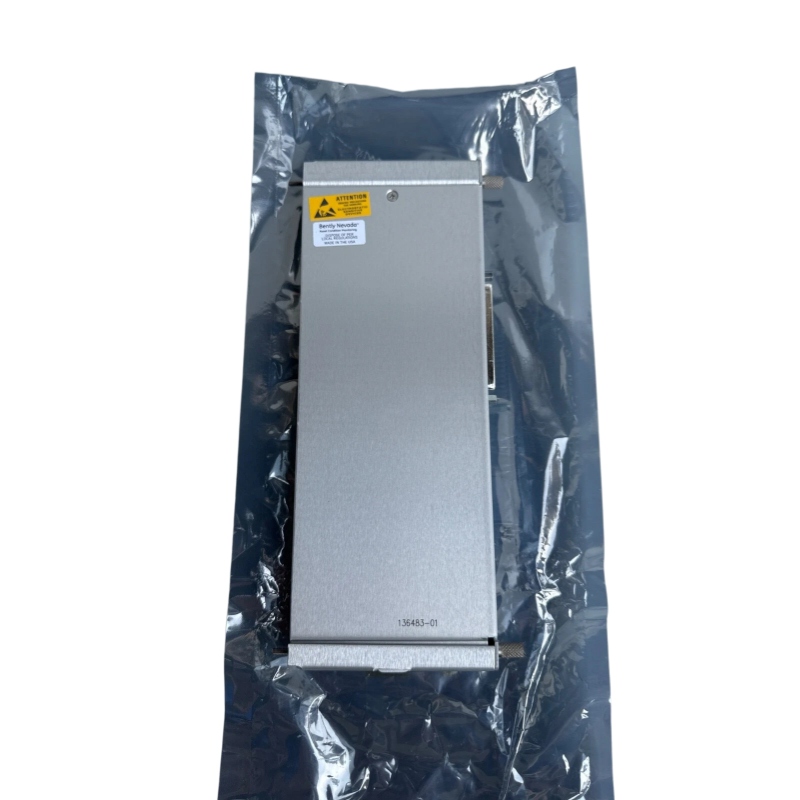

• Product Name: Bently Nevada 3500/62 136483-01
• Main Function: Used to monitor Process Variables, such as temperature, pressure, flow, or electrical parameters (current/voltage).
• Product Category: Isolated or External analog I/O module with isolated input and/or isolated output capabilities.

______________________________________________________________________________________________

2. Parameter Specifications

Input Range

• Analog Input: -10 VDC to +10 VDC
• Current Input: 4 mA to 20 mA
• Digital Input: Discrete input

Output Range

• Analog Output: 0 V to 10 V or 0 V to 5 V (depending on the specific model)
• Current Output: 4 mA to 20 mA
• Digital Output: Relay or transistor output
• Power Requirement: 24 VDC
• Dimensions: Conforms to the standard dimensions of the 3500 series rack

______________________________________________________________________________________________

3. Product Features

• Isolation Design: Provides high electrical isolation to effectively prevent noise interference and electrical isolation faults from affecting the monitoring system.
• Configurable Thresholds: Supports users to set upper and lower thresholds in the 3500 configuration software to achieve process variable over-limit protection.
• Modular Assembly: Supports combination with other modules (such as 3500/61 or 3500/92) in the rack to flexibly build a monitoring system.

______________________________________________________________________________________________

4. Structure and Composition

• Backplane: Connects the rack power supply and communication bus.
• Front Panel: Displays module status indicators (such as fault and running indicators).
• I/O Interface: Provides a Terminal Block for connecting sensor cables (requires matching corresponding sensors).

______________________________________________________________________________________________

5. Application Fields

• Petrochemical Industry: Used to monitor reactor pressure, distillation tower temperature, etc.
• Power Industry: Used to monitor generator terminal voltage, transformer oil temperature, etc.
• Manufacturing Industry: Used to monitor compressor discharge temperature, hydraulic system pressure, etc.

______________________________________________________________________________________________

6. Installation and Maintenance

Installation Notes

• Isolation Confirmation: Confirm that the module is of Isolated or External type to avoid direct connection with low-voltage equipment.
• Backplane Connection: Ensure that the rack backplane power cable is firmly connected and the module direction is correct (backplane direction).

Maintenance Recommendations

• Regular Calibration: Regularly check the sensor calibration to ensure accurate process variable readings.
• Cleaning Maintenance: Keep the module terminal block clean to prevent poor contact caused by dust.
• Maintenance Recording: Record the module operating hours through the 3500 configuration software to facilitate preventive maintenance.
