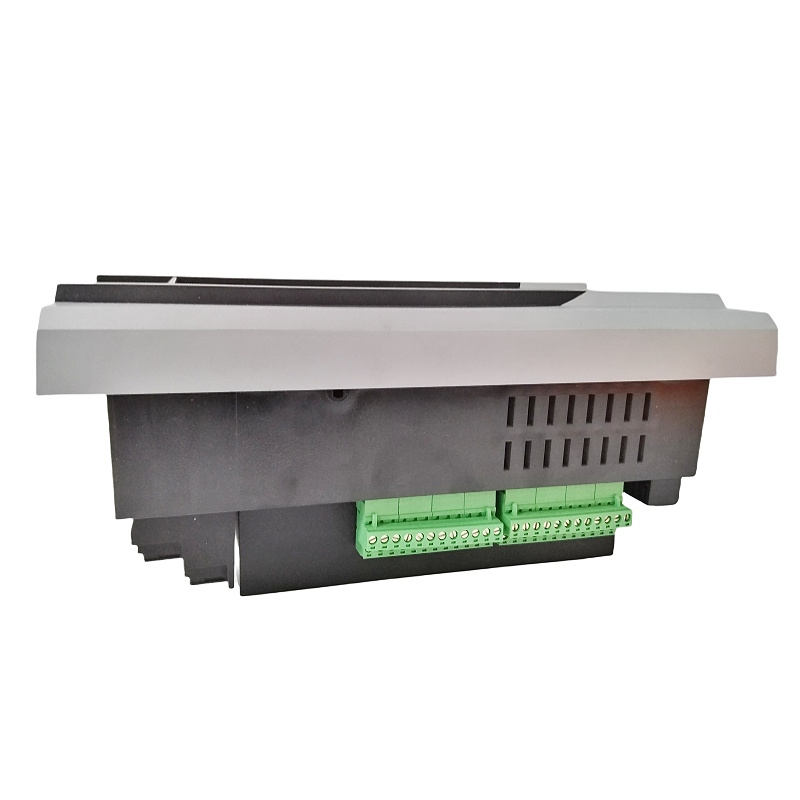

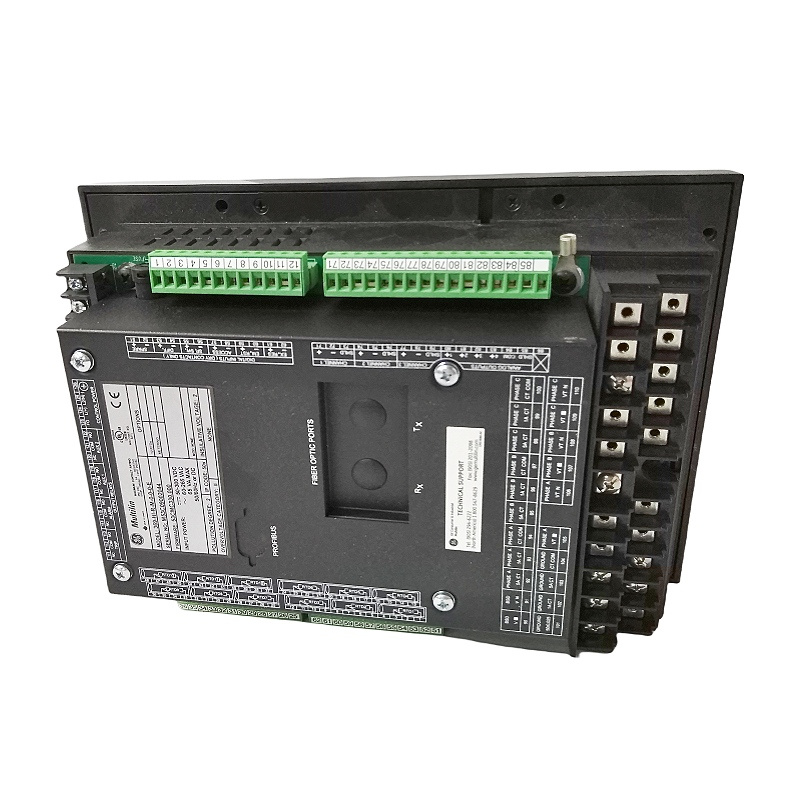

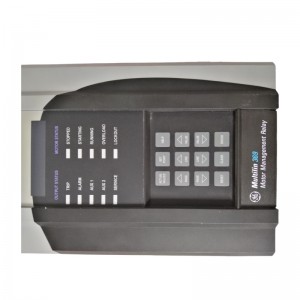

GE 369-HI-R-M-0-0-0-E

I. Overview

II. Parameters

• Rated Voltage: 50-300 VDC or 60-265 VAC
• Rated Current: 10 A or 20 A (depending on specific model)
• Input Voltage: 50-300 VDC or 60-265 VAC
• Output Voltage: 0~250VAC
• Output Current: 0~10A
• Frequency: 50-60Hz
• Protection Class: IP67 or IP20 (depending on specific model)
• Operating Temperature Range: -40°C to +70°C or -20°C to 55°C
• Storage Temperature Range: -40°C to +85°C
• Humidity Range: 5% to 95%RH, no condensation
• Dimensions: Approximately 200 x 150 x 80 mm or 146 x 89 x 35 mm
• Weight: Approximately 2 kg or 300 g

III. Product Features

• High Reliability: Uses high-quality components and strict production processes to ensure the reliability of the relay.
• Versatility: Provides multiple protection functions such as overload, short circuit, ground fault, undervoltage protection, phase loss protection, single-phase operation protection, and RPTD temperature protection.
• Ease of Use: Simple to operate, easy to set up and maintain.
• Modular Design: Adopts modular design and redundant design to ensure reliable operation of the system.
• Advanced Communication Interfaces: Supports communication methods such as RS-485, RS232.
• High-Precision Measurement: Offers high-precision measurement functions for current, voltage, power, frequency, etc.
• Rugged and Durable Structure: Can withstand harsh operating conditions.
• User-Friendly Interface: Equipped with a large display and an intuitive user interface for easy configuration and operation.

IV. Structure and Composition

• Control Module: Responsible for receiving input signals and controlling output actions.
• Protection Module: Provides multiple protection functions such as overload, short circuit, ground fault, etc.
• Measurement Module: Used to measure parameters such as current, voltage, power, and frequency.
• Communication Module: Supports communication methods such as RS-485, RS232, facilitating communication with upper computers or other devices.
• Display Module: Equipped with a large display for users to view and operate.
• Installation Module: Supports wall-mounted or DIN rail mounting.

V. Application Fields

• Industrial Automation: Used in industrial process control, automated production lines, etc.
• Power Systems: Used in power plants, wind turbines, solar arrays, etc.
• Manufacturing: Used for motor control of equipment such as pumps, fans, and conveyors.
• Oil and Gas: Used for motor control in the oil and gas industry.
• Water Treatment: Used for motor control of water treatment equipment.
• Transportation: Used for motor control in transportation vehicles such as airplanes, railways, and electric vehicles.
• Construction: Used in building automation, HVAC systems, etc.

VI. Installation and Maintenance

• Installation Methods: Supports wall-mounted or DIN rail mounting.
• Connection Methods: Supports cable wiring or terminal connection.
• Maintenance Requirements: Low maintenance requirements, cost-effective in the long run.

1. Ensure the installation environment meets the product’s operating conditions (such as temperature, humidity, protection class, etc.).
2. Install according to the user manual to ensure correct wiring.
3. Conduct initial tests to ensure the equipment operates normally.

• Regularly check the operating status of the equipment to ensure it is running normally.
• Regularly clean the surface of the equipment to prevent dust and dirt from affecting its performance.
• Regularly inspect the wiring and connectors to ensure they are secure and reliable.

————————————————————————————————————-
