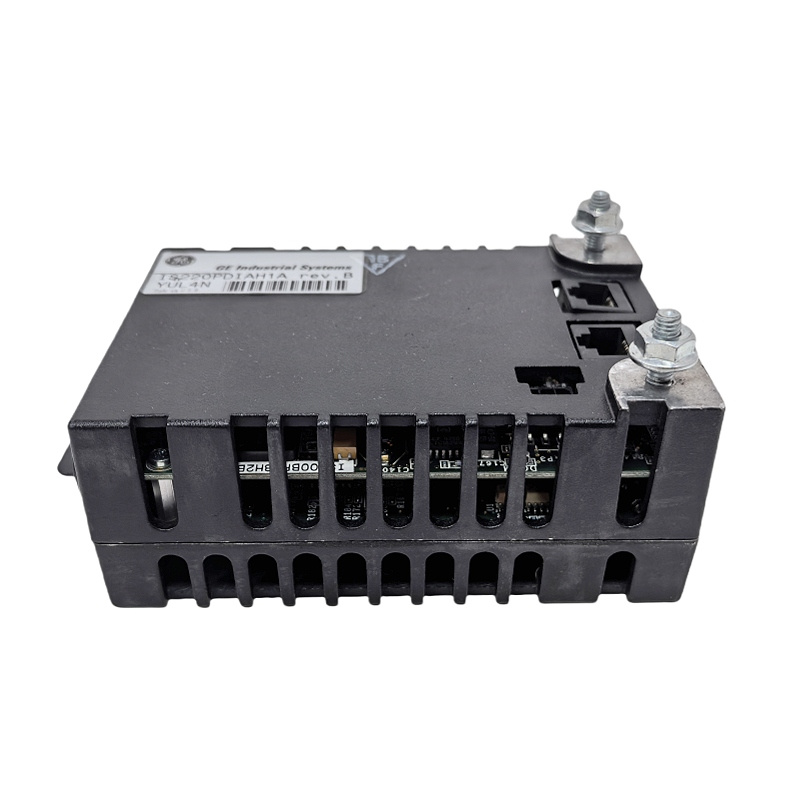

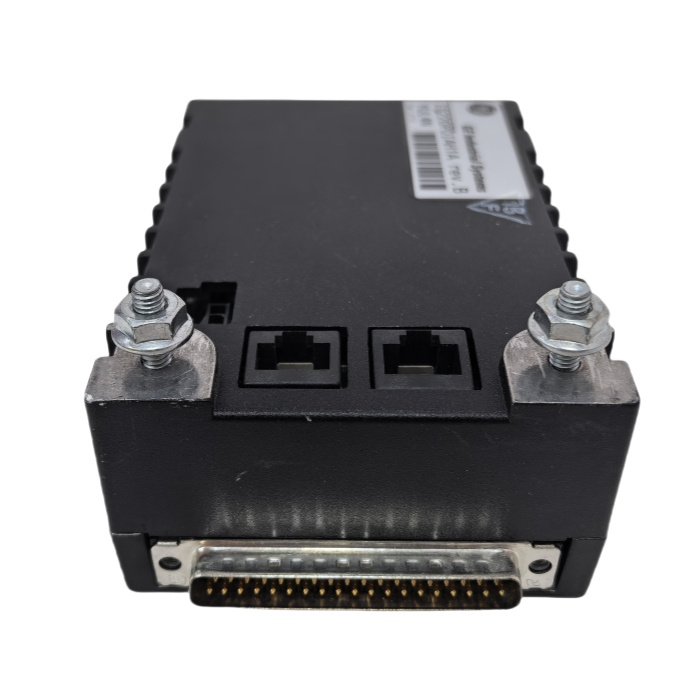

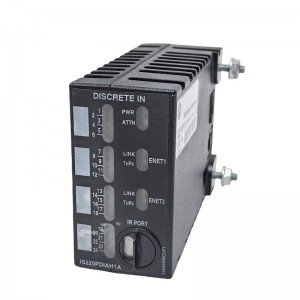

GE IS220PDIAH1A

I. Overview
The GE IS220PDIAH1A is one of the key components in the GE Speedtronic MK VI series gas turbine control system. It belongs to the I/O package module and is used to realize the collection and output of digital signals. This module supports the connection of various terminal boards and is suitable for non-hazardous environments and hazardous environments (such as Class I Zone 2 Group IIC and ATEX Zone 2 Group IIC). It provides high-speed and stable network communication through two Ethernet ports, facilitating data exchange with other components in the control system.

II. Parameters

Model: IS220PDIAH1A
Type: I/O package module
Series: GE Mark VI
Input voltage: 24 VDC (rated voltage), maximum voltage 28.6 VDC
Number of input channels: 24 discrete inputs
Operating temperature range: -30°C to +65°C (some data mention -20°C to 60°C or -40°C to 85°C)
Communication interface: two Ethernet ports, supporting high-speed data transmission
Certifications: UL 60079-0 Ed. 5 and UL 60079-15 Ed. 3, suitable for Class I Zone 2 Group IIC and ATEX Zone 2 Group IIC environments
Dimensions: compact module design, specific dimensions vary slightly from different sources, such as 100mm x 50mm x 25mm or 4.9″x 7.2″x 1.3″
Weight: approximately 200 grams (some data mention 0.5 pounds or 0.23 kilograms)

III. Product Features

High reliability: Adopting industrial-grade design, it has high reliability and stability, suitable for harsh industrial environments.
Strong anti-interference ability: It has good anti-interference ability to ensure stable operation in complex industrial environments.
Flexible configuration: The number and type of input and output points can be configured according to needs to adapt to different application scenarios.
Local processor: Built-in local processor, which can execute complex control logic and data processing tasks, reducing the burden on the main controller and improving the overall performance of the system.
Easy installation and maintenance: Modular design, facilitating system expansion and maintenance.
Support for multiple communication protocols: Supports Ethernet, RS232, RS485 and other communication protocols, facilitating integration with control systems.

IV. Structure and Composition
The GE IS220PDIAH1A consists of the following main parts:

Power module: Provides a stable 24VDC power supply to ensure the normal operation of the module.
Local processor: Responsible for data processing and logic control, improving the response speed and processing capacity of the system.
Data acquisition board: Used to collect signals from external devices and convert them into digital signals for easy identification by the control system.
Ethernet ports: Two Ethernet ports are provided to support high-speed data transmission, facilitating data exchange with other components in the control system.

V. Application Fields
The GE IS220PDIAH1A is widely used in the following fields:

Power industry: Used for control and monitoring of power systems such as power plants and substations.
Petrochemical industry: Used for key control tasks such as process control and safety interlocking.
Metallurgical industry: Used for control of metallurgical processes and equipment protection.
Industrial automation: Used in industrial automation control systems to achieve precise control and monitoring of various equipment.

VI. Installation and Maintenance
Installation:

Compatibility: It is necessary to ensure compatibility with other system equipment. It is recommended to use GE officially authorized dealers or professional engineers for installation.
Installation steps: Install the module on a standard DIN rail, connect the power supply and signal lines, and ensure all connections are firm and reliable.
Environmental requirements: The installation should be in a dry and well-ventilated environment, avoiding high temperature, high humidity or strong electromagnetic interference.

Maintenance:

Regular inspection: Regularly check whether the connections of the module are firm and whether there is any loosening or damage.
Cleaning: Keep the surface of the module clean to prevent dust and oil from entering the module and affecting its performance.
Fault diagnosis: The module has a built-in diagnosis function, which can monitor the working status of the module, detect faults in time and deal with them.

————————————————————————————————————-
