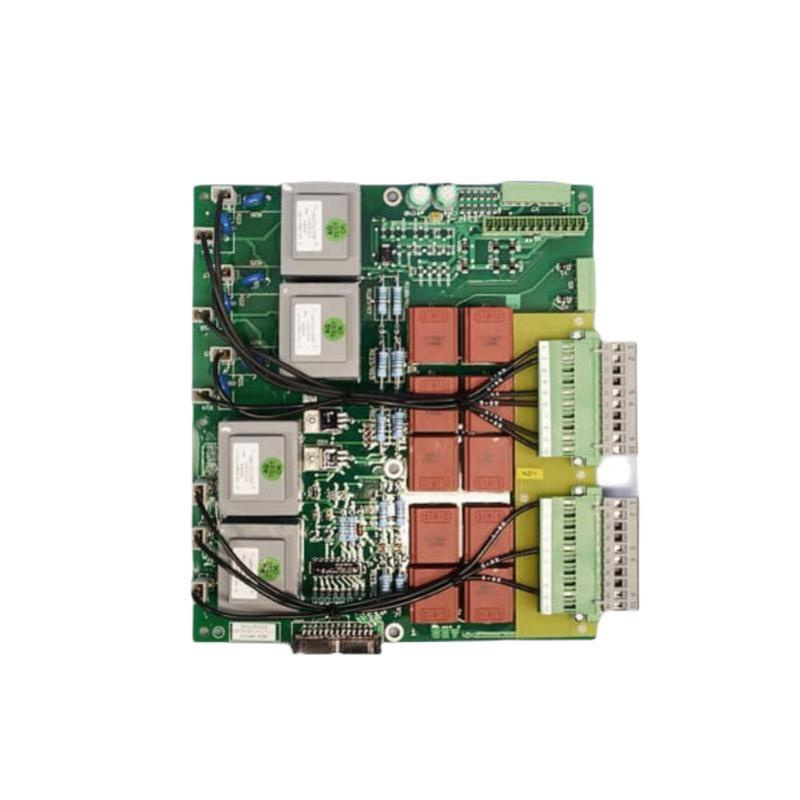

ABB 3ASC25H208 DATX100

Product Overview

The ABB BASC25H208 DATX100 is a high-density, multifunctional power supply and I/O integration module purpose-built for ABB’s distributed control systems (DCS) and programmable logic controller (PLC) architectures. It serves as a critical signal conditioning and actuation interface within ABB automation cabinets, undertaking the essential tasks of acquiring field sensor signals, converting them into standardized digital or analog values, and delivering precise control outputs to final actuation elements across a wide range of industrial processes—from chemical reaction vessels to high-speed production lines.

Distinct from standard off-the-shelf I/O modules, the DATX100 variant integrates a tightly regulated 24 VDC power conversion stage with multi-channel analog/digital I/O interfaces on a single ultra-compact form factor. Its front-end signal conditioning circuitry employs high-precision instrumentation amplifiers with active low-pass filtering, effectively suppressing common-mode noise and high-frequency interference commonly found in heavy industrial environments. The module’s backplane communication interface is hard-wired to ABB’s proprietary internal bus protocol, ensuring deterministic, jitter-free data exchange with the main controller—a critical requirement for time-sensitive control loops.

This model belongs to ABB’s highly customized spare part ecosystem. The “BASC25H208″ designation indicates a version with fixed hardware configuration parameters, while the “DATX100″ suffix denotes a specific firmware image tailored to particular system batches or end-customer engineering specifications. Unlike general-purpose I/O cards that require extensive on-site parameterization, this version ships with pre-configured calibration coefficients, communication node addresses, and fail-safe default states, making it a true plug-and-play replacement for matched ABB systems.

Product Parameters

Structure and Composition

The ABB BASC25H208 DATX100 shares the same foundational hardware platform as the standard ABB I/O family, yet distinguishes itself through firmware-level customization and component selection tailored for specific industrial applications. Physically, the module is organized into four distinct functional domains: the power conversion stage, the analog signal processing front-end, the digital I/O interface, and the backplane communication and logic core.

The power conversion stage occupies the leftmost section of the PCB and is built around a high-efficiency DC-DC converter with an extended input range of 18–30 VDC. This stage not only supplies all on-board logic circuits but also provides isolated field power for loop-powered transmitters connected to the analog inputs. An integrated foldback current-limiting circuit and transient voltage suppression diode protect both the module and downstream field devices from overcurrent and surge events. The power stage also features a “brown-out” detection circuit that triggers a controlled shutdown sequence when input voltage drops below the undervoltage threshold, preventing unpredictable logic states during power disturbances.

The analog signal processing front-end is where the DATX100 version differs most notably from generic variants. It employs a multi-channel, low-noise 16-bit Sigma-Delta ADC with an input multiplexer configurable for either voltage or current mode. Each analog input channel is equipped with a dedicated programmable gain amplifier (PGA) and a second-order active low-pass filter with a cutoff frequency of 100 Hz to 1 kHz, selectable via firmware to balance noise rejection against response speed. Additionally, the analog outputs are driven by 14-bit DACs with buffered output stages capable of sourcing up to 20 mA in current mode or swinging 0–10 V into loads as low as 2 kΩ in voltage mode. Factory-stored calibration coefficients—unique to the DATX100 firmware image—are automatically applied during every measurement cycle, compensating for component tolerances and temperature variations across the entire operating range.

Key Features and Advantages

1. Version-Locked Configuration – True Plug-and-Play Replacement

The most compelling advantage of the ABB BASC25H208 DATX100 is its role as a version-locked, pre-commissioned spare part. Every unit shipped under the DATX100 designation carries a firmware image pre-loaded with site-specific engineering parameters: communication node addresses, failsafe output states, analog scaling factors, and input filter settings. During field replacement, no laptop-based configuration tool, no protocol parameter entry, and no zero/span calibration procedure is required. Maintenance technicians can simply remove the failed unit, snap the new module onto the DIN-rail, re-terminate the spring-cage connectors, and return the equipment to service within minutes. This drastically reduces equipment downtime during preventive maintenance (PM) or emergency repairs, while simultaneously eliminating the risk of process deviations caused by manual configuration errors—a frequent root cause of quality incidents in many automated plants.

2. High-Precision Signal Acquisition with Advanced Noise Immunity

The module’s 16-bit ADC architecture, coupled with its actively filtered input stages, delivers ±0.1% full-span accuracy across a temperature-compensated range of –25°C to +70°C. The built-in common-mode rejection ratio (CMRR) of >90 dB and normal-mode rejection ratio (NMRR) of >60 dB at 50/60 Hz ensure that industrial electrical noise—from variable-frequency drives, welding equipment, or high-power contactors—does not corrupt the measurement data. For temperature-sensitive processes, such as exothermic chemical reactors or precision thermal treatment furnaces, this accuracy translates directly into tighter process control, reduced product variability, and lower scrap rates.

3. Ruggedized Design for Demanding Industrial Environments

Unlike commercial-grade automation components, the DATX100 version is built with industrial longevity in mind. The entire PCB receives a conformal coating process that protects against moisture, airborne contaminants, and mild corrosive atmospheres commonly found in chemical, wastewater, or mining installations. The spring-cage connector system ensures vibration-resistant terminations, while the wide operating temperature range and aggressive derating policies guarantee reliable operation even in poorly ventilated cabinets near large motors or furnace enclosures. With an MTBF rating exceeding 1,000,000 hours at 40°C, this module is engineered to minimize unscheduled maintenance events over the equipment’s lifecycle.

4. Flexible Communication and System Integration

The hardware-selectable communication interface—supporting Modbus RTU, Modbus TCP/IP, and Profibus DP—provides remarkable deployment flexibility for system integrators. The DATX100 version further simplifies integration by locking the protocol parameters to match the existing installed base, eliminating the need for network reconfiguration when replacing modules. This interoperability extends to mainstream PLC and DCS platforms, including ABB’s own 800xA and Freelance systems, as well as third-party controllers from Siemens, Rockwell, and Schneider Electric, making this module suitable for both greenfield projects and brownfield retrofits.

5. Comprehensive Diagnostics and Condition Monitoring

Onboard diagnostic capabilities continuously monitor key health indicators: supply voltage, internal temperature, communication link status, and individual channel health. Any anomaly triggers a visible LED fault code and, where configured, generates a remote alarm message over the communication bus. This proactive fault indication enables maintenance teams to identify and plan for component replacement before critical failure occurs, shifting maintenance strategy from reactive to predictive—a cornerstone of modern Industry 4.0 operations.

Application Fields

The ABB BASC25H208 DATX100 is primarily installed in ABB automation control panels and distributed I/O stations, integrated across a broad spectrum of heavy industrial and process automation sectors. Its most concentrated deployments are found in ABB’s own 800xA and Freelance DCS systems, where it serves as a standardized field interface for analog and digital signal acquisition in continuous and batch processes.

Beyond these core verticals, this module also finds applications in pharmaceutical manufacturing (cleanroom-compatible I/O for fermentation and purification skids), food and beverage processing (hygienic CIP/SIP system interfaces), and automotive assembly lines (pressure and torque monitoring in robotic welding cells). The DATX100 version is the preferred spare part for plant engineers who demand absolute hardware consistency across identical production lines—eliminating the need for re-qualification procedures when replacing I/O modules in validated process environments.

Installation and Maintenance

Pre-Installation Preparation

Before installing the ABB BASC25H208 DATX100, ensure the control cabinet’s 24 VDC power bus is de-energized and locked out in accordance with site safety procedures. Confirm that the DIN-rail is properly grounded and free of debris or damage that could compromise module seating.

Visually inspect the new module for any signs of physical damage during shipping, paying particular attention to the spring-cage terminals and side-mounted DIP switches. Verify that the DIP switch settings correspond exactly to the original module’s configuration—these switches determine the communication protocol (Modbus RTU vs. Profibus DP) and, on certain system variants, the node address range. The DATX100 firmware image is fixed; do not attempt to update or overwrite it with alternative versions, as this will erase the factory-locked calibration constants.

Prior to mounting, gently clean the DIN-rail and adjacent modules to prevent foreign particles from migrating onto the PCB’s conformal coating surface. Snap the module firmly onto the rail until the latch mechanism audibly clicks into position. Leave one empty slot width above and below the module, if space permits, to facilitate natural convection cooling and simplify future wiring access.
