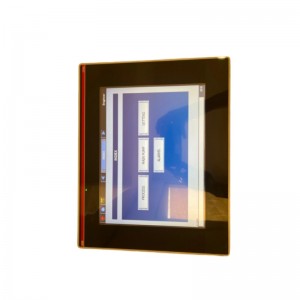

ABB CP661 C3 1SAP561100R0001

1. Product Overview

2. Product Parameters and Technical Specifications

3. Product Features

• High-Definition Display: Adopts advanced TFT color display technology with 64K color rendering, delivering clear and intuitive visual images of industrial processes.
• Flexible Touch Operation: Equipped with a 4-wire analog resistive touch screen, supporting multi-mode operation via fingers, styluses and other tools for convenient on-site operation.
• Diversified Communication Capabilities: Integrated with dual Ethernet ports (with built-in switch function), USB interfaces and serial port, compatible with multiple mainstream industrial communication protocols to meet diverse connection demands.
• Industrial-Grade Protection: The front panel features an IP66 high protection grade, effectively resisting dust, water splash and mechanical damage, adapting to harsh industrial environments.
• User-Friendly Configuration: Fully compatible with Panel Builder 600 programming software, realizing simple and fast equipment configuration and program debugging.
• Multi-Language Support: Supports customizable multi-language interface settings, perfectly adapting to global industrial application scenarios and international deployment requirements.
• High Durability and Stability: Optimized for 24/7 continuous long-term operation with strong anti-interference performance, ensuring stable and reliable operation in complex and harsh industrial working conditions.

4. Structure and Composition

4.1 Hardware Structure

4.2 Software Composition

5. Application Fields

• Chemical Industry: Real-time process parameter monitoring and on-site equipment control for chemical production lines.
• Oil and Gas Industry: On-site data collection, real-time visualization and remote monitoring of oil and gas exploitation and transmission processes.
• Manufacturing Industry: Production line man-machine interaction, equipment operation monitoring and production status data statistics.
• Automation Engineering: Serves as the core human-machine interaction terminal for industrial process control systems.
• Robot Integration: Supports direct communication and data interaction with ABB IRC5 robot controllers for intelligent robot production control.

6. Installation and Maintenance

6.1 Installation Steps

• Pre-installation Inspection: Verify that the input power voltage is standard 24V DC, and check whether the product packaging and equipment appearance are intact without damage.
• Panel Cutting: Perform on-site cabinet cutting strictly in accordance with the standard mounting cutting size of the device.
• Wiring Inspection: Complete the connection of power lines and communication lines correctly, and conduct standard insulation treatment for all wiring terminals to avoid short circuit and signal interference.
• Fixed Installation: Fix the panel firmly on the equipment cabinet using the original supporting mounting accessories.
• Power-on Test: Confirm the correct power polarity, then power on the device, and check whether the screen displays normally and all functions are ready.
