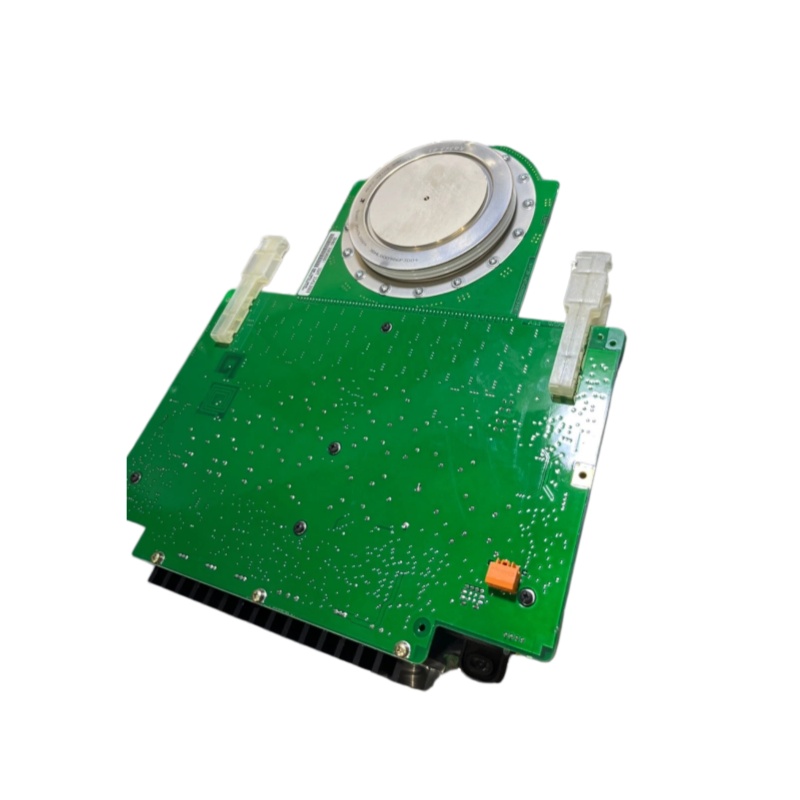

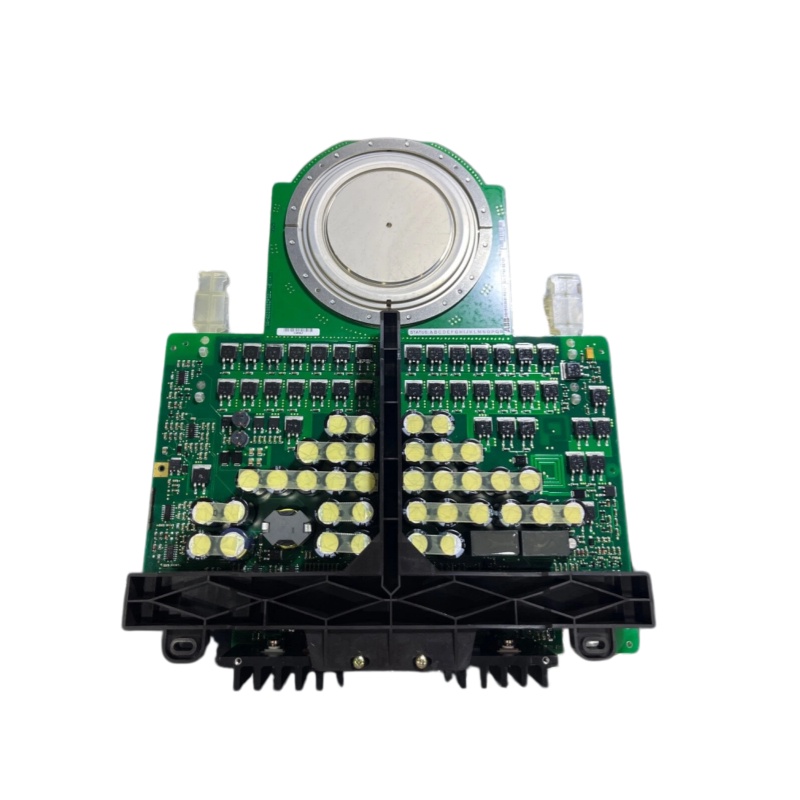

ABB 3BHE009681R0101 GVC750BE101 Frequency Converter Drive Module
ABB 3BHE009681R0101 GVC750BE101
1. Product Overview
ABB 3BHE009681R0101 GVC750BE101 (also known as the 5SHY3545L0010 series) is a high-performance industrial variable frequency drive product, belonging to the ABB ACS 6000 series medium-voltage drive system. It is mainly composed of IGBT/IGCT power modules, drive power supply boards and control boards. Designed specifically by ABB for the industrial automation field, this product is a high-reliability control module, widely used in medium-voltage drive applications that require high performance, high reliability and high efficiency.
2. Main Parameters
|
Parameter Category
|
Specification Parameters
|
|---|---|
|
Model
|
GVC750BE101 / 3BHE009681R0101 / 5SHY3545L0010
|
|
Rated Voltage
|
380-480V AC / 750V
|
|
Rated Current
|
750A / 1000A
|
|
Rated Power
|
500kW – 750kW / 750 kVA
|
|
Output Voltage
|
0-690V AC / 0-500V
|
|
Output Frequency
|
0.1Hz – 2kHz / 0.400Hz
|
|
Control Mode
|
Vector Control
|
|
Switching Frequency
|
2kHz
|
|
Efficiency
|
>95%
|
|
Overload Capacity
|
150% for 1 minute
|
|
Communication Interfaces
|
Modbus RTU, CANopen, Profibus DP, PROFINET, EtherNet/IP, Modbus TCP
|
|
Input Voltage
|
24V DC / 220V AC
|
3. Product Features
- High Reliability and Stability: Passed strict quality and reliability tests, capable of long-term stable operation in harsh industrial environments.
-
Advanced Protection Functions:
Easy Integration: Adopts standardized design and interfaces, facilitating integration with other ABB industrial automation products.
- DESAT Short-Circuit Protection
- Over-Temperature Protection
- Under-Voltage Lockout
- Active Miller Clamp
- Low Harmonic Content: High output power quality with little pollution to the power grid.
- Multiple Communication Support: Supports a variety of industrial communication protocols for easy system integration.
- Protection Level: IP20 – IP54 (depending on different application configurations).
4. Structure and Composition
The product usually includes the following components:
- IGBT Module: 5SHY3545L0010 (voltage level 3.3kV, rated current 450A)
- Drive Power Supply Board: 3BHE009681R0101
- Drive Control Board: GVC750BE101
- Assembly Module: 3BHB013088R0001
Physical Specifications:
- Overall Dimensions: 320mm × 200mm × 140mm / 1500mm × 1000mm × 600mm (depending on the overall configuration)
- Weight: Approximately 500g – 1000kg (depending on configuration)
- Cooling Method: Forced air cooling or water cooling
5. Application Fields
The product is widely used in the following industrial fields:
- Metallurgical Industry: Rolling mills, fan drives
- Mining Industry: Large conveyor belts, hoists
- Paper Industry: Winders, paper machine drives
- Power Industry: Power plant pumps, fans
- Wind/Solar Power Generation: Pitch systems, inverters
- Rail Transit: Traction drive systems
- Industrial Automation: Robots, automated production lines
- Electromechanical Equipment: Machine tools, electronic equipment
6. Installation and Maintenance
6.1 Installation Requirements
- Installation Method: Modular plug-in or bolt fixation
- Ambient Temperature: Operating temperature -10°C to +85°C, storage temperature -25°C to +60°C
- Electrical Connection: Connect in accordance with ABB standard wiring diagrams to ensure good grounding
- Heat Dissipation Requirements: Maintain sufficient heat dissipation space and ensure air circulation
6.2 Maintenance Points
- Regular Inspection: Check connection terminals, insulation conditions, and heat dissipation air ducts
- Environmental Monitoring: Monitor operating temperature, humidity, and dust conditions
- Fault Diagnosis: Use the built-in fault diagnosis function for system status monitoring
- Cleaning and Maintenance: Regularly clean dust to keep the module surface clean
————————————————————————————————————-
