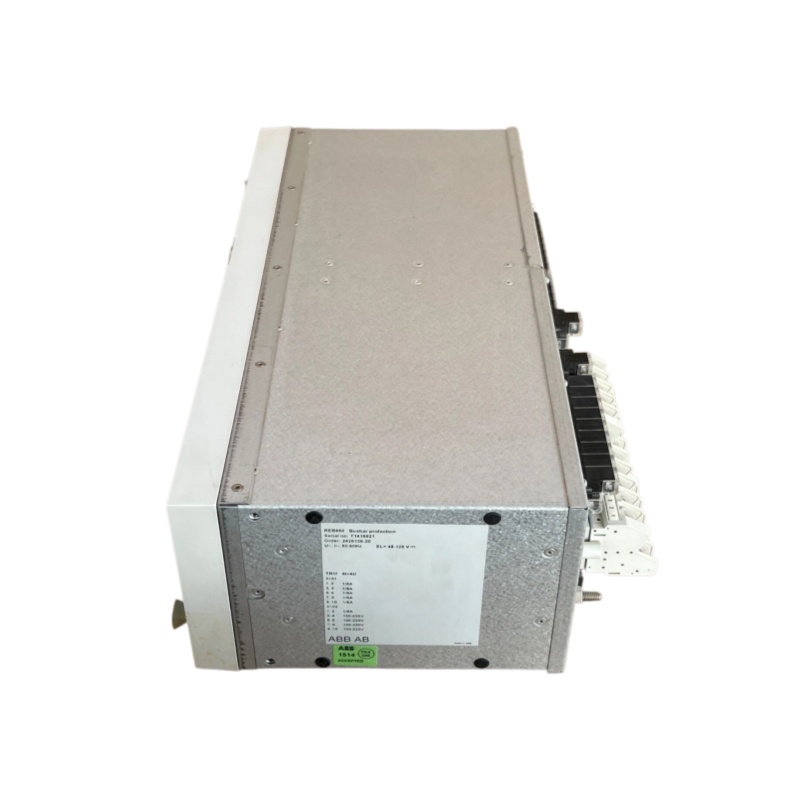

ABB REB650 1MRK006520-AD Busbar Protection Device
ABB REB650 1MRK006520-AD
1. Overview
2. Technical Parameters
|
Parameter Item
|
Specification
|
|---|---|
|
Model
|
1MRK006520-AD
|
|
Function Type
|
Busbar Protection
|
|
Rated Current Input
|
Configurable 1A or 5A
|
|
DC Power Supply
|
DC 110V or DC 220V
|
|
Communication Protocol
|
IEC 61850, GOOSE
|
|
Installation Method
|
Rack-mounted, Wall-mounted
|
|
Rack-mounted Dimensions
|
25.5mm (W) × 482.6mm (D) × 265.9mm (H) (6U)
|
|
Wall-mounted Dimensions
|
270mm (H) × 252.5mm (W) × 296mm (D)
|
3. Product Features
- Complete Protection Functions: Provides single-phase high-impedance differential protection, four-stage zero-sequence overcurrent protection, thermal overload protection, circuit breaker failure protection, etc.
- High Reliability Design: Adopts redundant design and self-diagnostic function to ensure reliable operation of the equipment.
- Modular Design: Facilitates installation and maintenance.
- Flexible Configuration: Various functions and parameter settings can be realized through configuration software.
- Compliant with IEC 61850 Standard: Enables interoperability with other equipment.
- Extended Human-Machine Interface (HMI): 15 three-color indicator dynamic LED lights per page, up to 3 pages.
- Customizable Labels: Text-based programmable LED labels.
- Local Language Support: Supports user-defined names and allows setting signals and functions in local languages.
- Minimized Parameter Setting: Based on ABB’s general reference value concept.
4. Structure and Composition
|
Component
|
Description
|
|---|---|
|

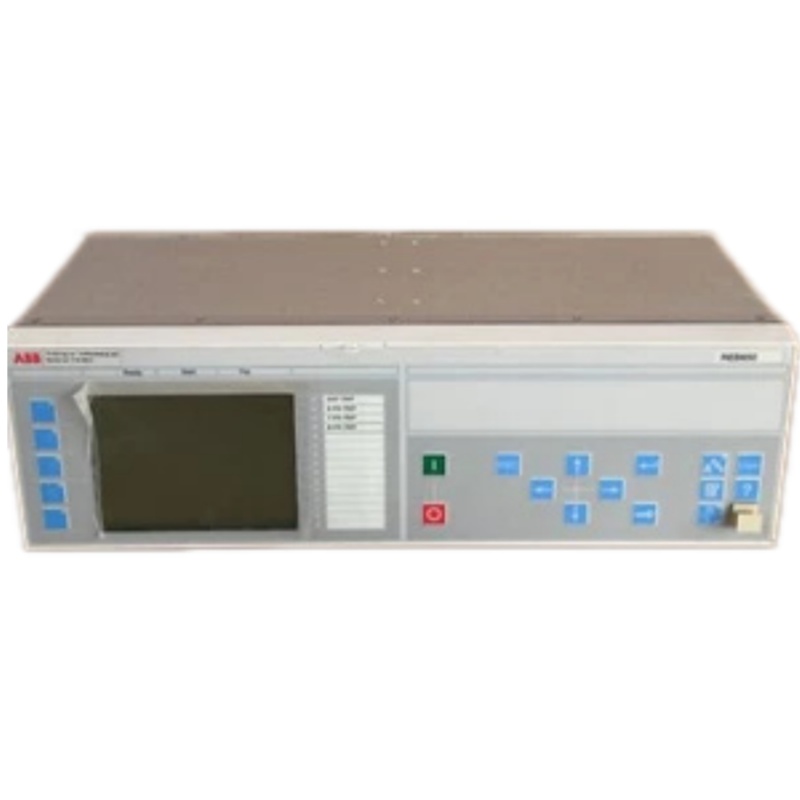

Front Panel
|
Including display screen, buttons, indicator lights, etc., for human-machine interaction.
|
|
Internal Circuit Board
|
Including processor, memory, communication interface, etc.
|
|
Connection Terminals
|
Interface connections for power supply, signals, communication, etc.
|
|
Communication Interface
|
Supports multiple communication protocols.
|
|
Configuration Software
|
PCM600 (Version 2.9 or higher required)
|
5. Application Fields
- Power Plants: Generator busbar protection.
- Transmission Networks: High-voltage transmission busbar protection.
- Distribution Networks: Medium and low-voltage distribution busbar protection.
- Substations: Substation busbar control and protection.
- Industrial Enterprises: Protection of enterprise power systems.
- New Construction and Renovation Projects: Suitable for new construction and renovation installations.
6. Installation and Maintenance
Installation
- Pre-installation Inspection: Confirm that the device model and rated parameters match the system.
-
Installation Method Selection:
Wiring Connection: Connect power supply, current transformers, voltage transformers, and communication lines.
- Rack-mounted installation (standard 19-inch cabinet)
- Wall-mounted installation
Maintenance
-
Daily Maintenance:
Parameter Configuration: Use PCM600 software for parameter setting and function configuration.
- Regularly check the status of indicator lights.
- Check the status of communication connections.
- View event reports and self-inspection records (can save the latest 32 action reports, SOE records, and self-inspection error reports).
- Troubleshooting: Diagnose with reference to the application manual and technical manual.
————————————————————————————————————-
