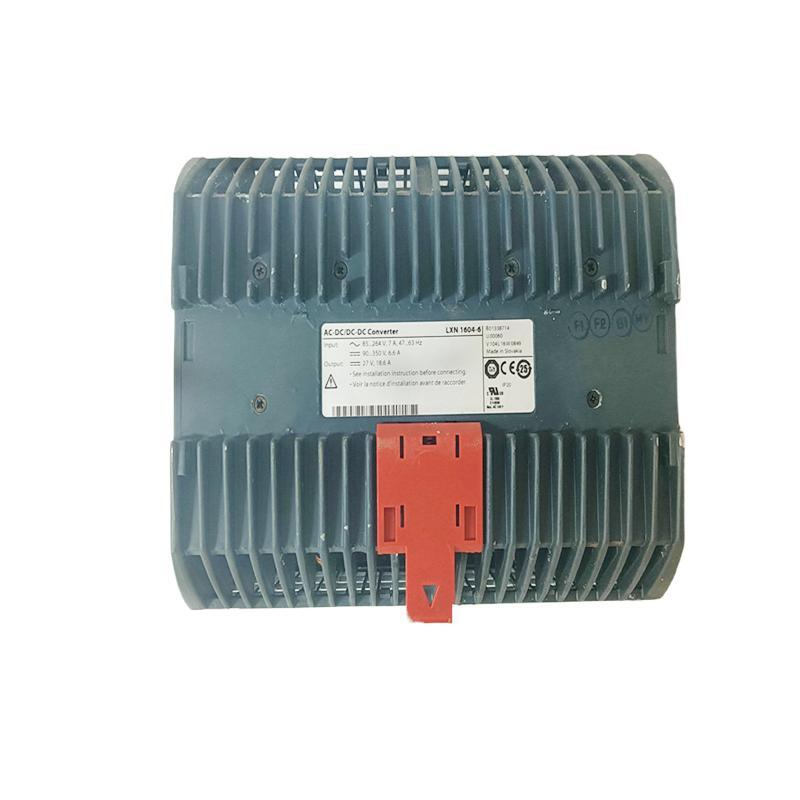

ABB LXN1604-6 3BHL000986P7000

I. Overview

II. Parameters

• Model: LXN1604-6 3BHL000986P7000
• Brand: ABB
• Type: Power module
• Input voltage: 85 VAC to 264 VAC, 90 VDC to 350 VDC
• Output voltage: 24.7 VDC
• Output current: 20 A
• Output power: 500 W
• Operating temperature range: -25°C to +70°C
• Storage temperature range: -40°C to +85°C
• Weight: Approximately 0.5 kg
• Dimensions: 194 mm x 113.6 mm x 138 mm
• Installation method: DIN rail mounting

III. Product Features

• High reliability: Adopts advanced manufacturing technology to ensure excellent stability and reliability, enabling stable operation in harsh industrial environments.
• Wide voltage input range: Supports a wide voltage input range of 100-240V AC, which can adapt to different power supply environments and meet the needs of various industrial automation control systems.
• Modular design: The modular design facilitates installation, maintenance, and expansion, improving system flexibility.
• Overcurrent protection function: Built-in overcurrent protection function to protect the power supply and connected equipment from damage caused by overcurrent.
• Optional output voltage: Provides optional output voltages to meet the power supply requirements of different equipment.
• High efficiency and energy saving: Uses efficient energy conversion technology to reduce energy consumption, lower operating costs, and reduce environmental impact.

IV. Structure and Composition

• DIN rail mounting: Complies with DIN standards and can be directly installed on DIN rails, facilitating installation and fixation, simplifying the installation process, and improving the overall stability and reliability of the system.
• Enclosed protection of internal components: Internal components are enclosed for protection to prevent dust and moisture from entering, ensuring long-term stable operation of the equipment.
• Wide voltage input range: Supports a wide voltage input range of 100-240V AC, adapting to different power supply environments.
• Overcurrent protection function: Built-in overcurrent protection function to protect the power supply and connected equipment from damage caused by overcurrent.
• Optional output voltage: Provides optional output voltages to meet the power supply requirements of different equipment.

V. Application Fields

• Industrial automation: Used in various industrial automation systems such as production line automation and process control.
• Building control: Provides stable power supply for building control systems to ensure their normal operation.
• Electromagnetic drive: Supplies stable power to electromagnetic drive equipment to ensure their normal operation.
• Power plant DCS monitoring system: Provides stable power supply for DCS monitoring systems in power plants to ensure their normal operation.
• Intelligent flat tempering furnace system manufacturing: Provides stable power supply for the manufacturing of intelligent flat tempering furnace systems to ensure their normal operation.

VI. Installation and Maintenance

• Installation method: DIN rail mounting is adopted, which is convenient for installation and fixation, simplifies the installation process, and improves the overall stability and reliability of the system.
• Maintenance: The modular design facilitates maintenance and replacement, reducing system downtime.
• Notes:
  • During installation and use, be sure to comply with safety operating procedures to ensure personal and equipment safety.
  • Do not arbitrarily change the product’s parameter settings to avoid affecting the normal operation of the system.
  • If you need to expand or modify the product, please consult technical personnel or contact the technical support department.
  • If the product is not used for a long time, store it in a dry, ventilated, and dust-free environment to avoid moisture and corrosion.

———————————————————————————————————————————
