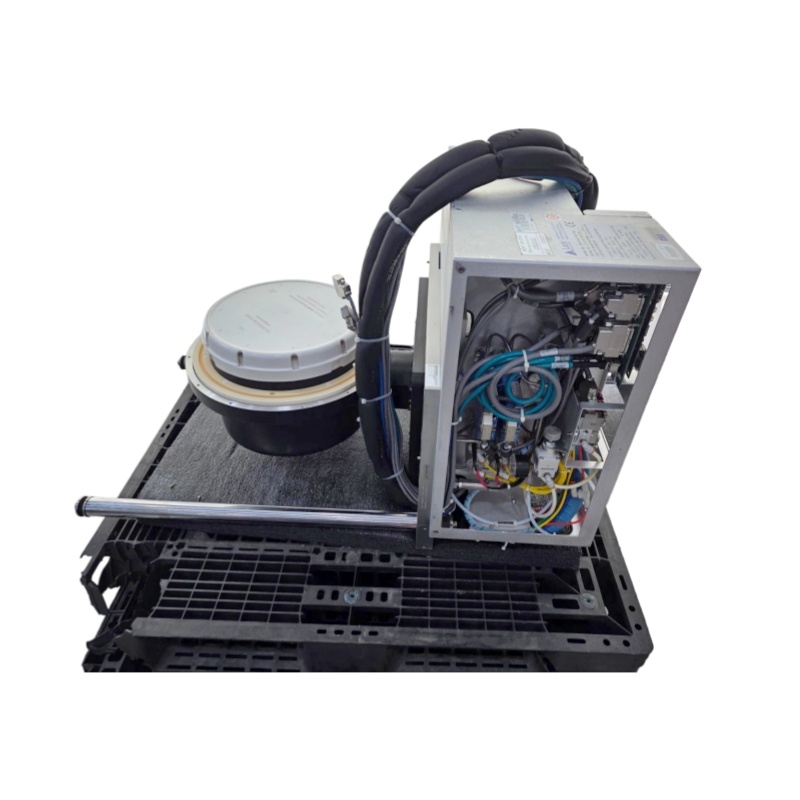

Lam Research 575-800325-417 Execution Component
Lam Research 575-800325-41
Product Overview
The Lam Research 575-800325-417 is a high-frequency RF automatic matching network module specifically designed for advanced plasma etching processes. It serves as a core execution component of the RF transmission system for the Lam Research 2300-series etching platform. During plasma etching, its primary function is to dynamically adjust the impedance matching between the output impedance of the RF power supply and the plasma load impedance inside the reaction chamber in real time. This minimizes RF reflected power and ensures efficient, stable coupling of RF energy into process gases.
This impedance matching process is critical for maintaining stable dissociation of process gases, controlling ion bombardment energy, and guaranteeing the uniformity of etching rate, which lays a solid foundation for consistent and high-quality wafer processing results.
Adopting a highly integrated modular design, the Lam Research 575-800325-417 incorporates DSP (Digital Signal Processor)-controlled high-speed tuning algorithms, high-torque stepper motor-driven vacuum variable capacitor arrays, and high-bandwidth V/I (Voltage/Current) vector detection probes. The module realizes data interaction with the equipment main controller via a dedicated high-speed communication bus. It not only receives tuning commands from the upper computer but also feeds back key process parameters in real time, including forward power, reflected power, tuner element position, and chamber impedance vector, forming a complete closed-loop adaptive control system. For the manufacturing of advanced logic chips and 3D NAND flash memory at 7nm and below, this component plays an irreplaceable role in ensuring the repeatability and yield of critical etching processes.
Product Specifications
|
Parameter Name
|
Parameter Value
|
|---|---|
|
Product Model
|
575-800325-417
|
|
Manufacturer
|
Lam Research
|
|
Product Type
|
RF Auto Match Network
|
|
Applicable Frequency
|
60 MHz (main frequency), compatible with partial 27 MHz applications
|
|
Maximum RF Power
|
2 kW – 3 kW (depending on chamber configuration and duty cycle)
|
|
Tuning Element
|
Dual-motor driven vacuum variable capacitor (C1/C2 configuration)
|
|
Detection Accuracy
|
V/I probe phase detection accuracy: < ±0.1°; amplitude accuracy: < ±0.5%
|
|
Control Interface
|
Dedicated high-speed serial bus (compatible with Lam 2300 series communication protocol)
|
|
Cooling Method
|
Hybrid water and air cooling (water cooling flow rate: 3-5 L/min)
|
|
Purge Gas
|
CDA (Clean Dry Air), pressure: 50-70 PSI
|
|
Physical Dimensions
|
Approx. 340mm × 220mm × 160mm (excluding interfaces and cables)
|
|
Installation Method
|
Internal slide-in pluggable installation with front locking structure
|
Structure and Composition
The internal architecture of the Lam Research 575-800325-417 reflects Lam Research’s profound technical expertise in high-frequency RF engineering. The product enclosure is made of high-conductivity aluminum alloy with precision machining and chemical coating treatment. It provides robust physical protection and forms an effective RF shielding layer to prevent high-frequency electromagnetic radiation from interfering with surrounding sensitive electronic devices. A 4-digit seven-segment digital tube and multi-color LED indicators are mounted on the front of the module, displaying real-time matching status, tuner capacitor position percentage, and fault codes to help operators quickly grasp equipment operating conditions.
The internal structure of the module is divided into two major systems: the RF power transmission path and the control logic path. The RF transmission path consists of a low-loss coaxial input interface, high-conductivity oxygen-free copper strip transmission lines, and two high-precision vacuum variable capacitors connected in series. Adopting ceramic and metal bellows sealing structures, the two vacuum capacitors are driven by high-resolution hybrid stepper motors through precision reduction gears, enabling pico-farad (pF) level ultra-fine capacitance tuning steps.
The control logic path is centered on a high-performance floating-point DSP, supplemented by high-speed ADCs (Analog-to-Digital Converters) to perform real-time sampling and vector calculation on high-frequency voltage and current signals collected by V/I probes. The control board integrates motor drive chips, temperature monitoring sensors, and communication isolation circuits. All control circuits are arranged in an independent shielding cavity and isolated from the RF cavity via feedthrough capacitors, ensuring accurate execution of control commands in strong electromagnetic interference environments.
Key Features and Advantages
Excellent High-Frequency Matching Accuracy and Fast Response Speed
Optimized exclusively for 60 MHz high-frequency RF applications, the Lam Research 575-800325-417 features a built-in adaptive matching algorithm that tracks drastic changes in plasma load within milliseconds. It can quickly lock the matching point at the moment of process ignition and extinction, stably maintaining the VSWR (Voltage Standing Wave Ratio) below the ideal threshold of 1.2:1. This superior dynamic response effectively prevents RF power supply tripping and wafer surface charge damage caused by impedance mismatch, greatly improving process reliability and product yield.
High Durability and Harsh Environment Adaptability
To meet the nearly non-stop operation requirements of semiconductor mass-production equipment, this model adopts premium materials for core components. Its vacuum capacitors use high-purity titanium alloy bellows and ceramic dielectrics, which have passed strict life tests and maintain stable capacitance accuracy and vacuum tightness after over one million tuning cycles. Meanwhile, the 575-800325-417 is equipped with an intelligent temperature control system. The coordinated operation of the water-cooled substrate and air duct airflow keeps the internal operating temperature within a safe range, effectively solving stepper motor step-out and capacitor plate thermal drift caused by heat accumulation, and ensuring consistent process parameters and long-term equipment stability during continuous production.
Complete System Self-Diagnosis and Maintainability
The module is equipped with powerful built-in self-test (BIST) functions. It automatically executes diagnostic procedures including motor stroke calibration, V/I probe zero calibration, and communication link verification during power-on or remote command triggering. Once abnormalities such as excessive reflected power, motor overload, insufficient cooling flow, or over-temperature are detected, the 575-800325-417 immediately activates hardware-level protection and feeds back detailed fault codes to the host system. This significantly shortens fault troubleshooting time, reduces the equipment MTTR (Mean Time To Repair), and provides solid support for the efficient operation of semiconductor production lines.
Application Fields
The Lam Research 575-800325-417 is mainly deployed in the conductor etching process of semiconductor front-end manufacturing, especially for advanced processes of 300mm (12-inch) wafers. As a key RF supporting component of Lam Research 2300-series etching machines (especially the Kiyo series), it enables high-selectivity and high-anisotropy etching. In advanced logic chip manufacturing, it is widely applied in critical processes such as gate etching, source-drain contact hole etching, and hard mask trenching for metal interconnection layers. In the storage chip sector, it supports through-hole etching for multi-layer stacked structures in 3D NAND flash memory and deep trench etching for DRAM capacitors.
This component solves two core technical challenges in high-frequency processes. First, it realizes precise control of high-energy ion energy distribution. Accurate 60 MHz RF matching stabilizes the plasma sheath voltage, enabling refined adjustment of etching profile verticality and sidewall roughness. Second, it guarantees batch production process consistency. With excellent matching repeatability and anti-drift capability during continuous processing of thousands of wafers, it maintains a highly consistent RF environment for each wafer, controls wafer-to-wafer and lot-to-lot critical dimension (CD) deviation within acceptable ranges, and provides core hardware support for yield improvement in mass production at 5nm and below process nodes.
Related Products
- Lam Research 575-800325-418: An alternative model of the same series with a slightly higher maximum supported power (3kW version), suitable for special etching recipes with stricter RF energy requirements.
- Lam Research 575-800000-101: RF interface board matched with the matching network, responsible for low-loss connection between RF power transmission cables and the matcher input terminal.
- Lam Research 575-800110-003: Independent VI probe assembly spare part for field replacement of the voltage and current detection unit inside the module.
- Lam Research 575-800500-010: Coolant quick-connect kit for the matching network, including water inlet/outlet connectors and sealing gaskets.
- Lam Research X4860-512064-002: 60 MHz RF jumper cable with low standing wave ratio and low loss, specially designed for transmitting RF energy from the power supply to the 575-800325-417 input port.
- Lam Research 871-200002-001: Ceramic insulator bushing installed between the matching network output terminal and the reaction chamber, preventing abnormal high-voltage RF discharge at the vacuum interface.
Installation and Maintenance
Pre-Installation Preparation
Before installing the Lam Research 575-800325-417, ensure the equipment is in a power-locked state and the chamber pressure is fully released to atmospheric pressure. Operators must wear complete cleanroom protective equipment (gloves, masks, cleanroom suits) and take ESD protection measures. Check that the guide rails of the equipment slot are clean and free of foreign matter, and focus on inspecting the integrity of O-rings inside the water cooling interface. It is recommended to replace new sealing rings to avoid liquid leakage. Slowly push the module into the chassis along the guide rails, lock the front panel fixing screws after the backplane connectors are fully aligned and engaged. Connect the water cooling pipeline (follow the inlet and outlet direction marks), CDA purge gas pipeline, and RF coaxial cables in sequence. Use a torque wrench to lock the RF cable connectors with specified torque to minimize contact resistance.
Maintenance Recommendations
During equipment operation, regularly monitor key operating parameters of the 575-800325-417 via the equipment control software, including average matching position, peak reflected power, and internal temperature readings. A gradual offset of the matching position to the stroke limit usually indicates accumulated deposits inside the chamber or component aging, which requires timely chamber cleaning and maintenance. During monthly preventive maintenance, check for leakage at water cooling pipeline joints and clean the dust filter at the module air inlet. It is recommended to calibrate the transmission loss of the matching network semi-annually with a calibrated RF power meter.
Before restarting long-term idle equipment, run a short process recipe at low power for preheating to reach thermal equilibrium inside the vacuum capacitors and verify the normal operation of all interlock loops, ensuring the module operates in optimal condition for formal production.
————————————————————————————————————-
