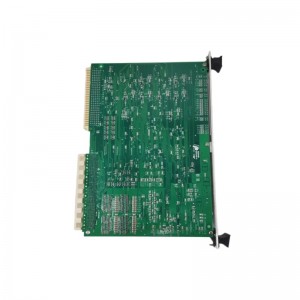

Lam Research 810-046015-010 Control Component
Lam Research 810-046015-010
Product Overview

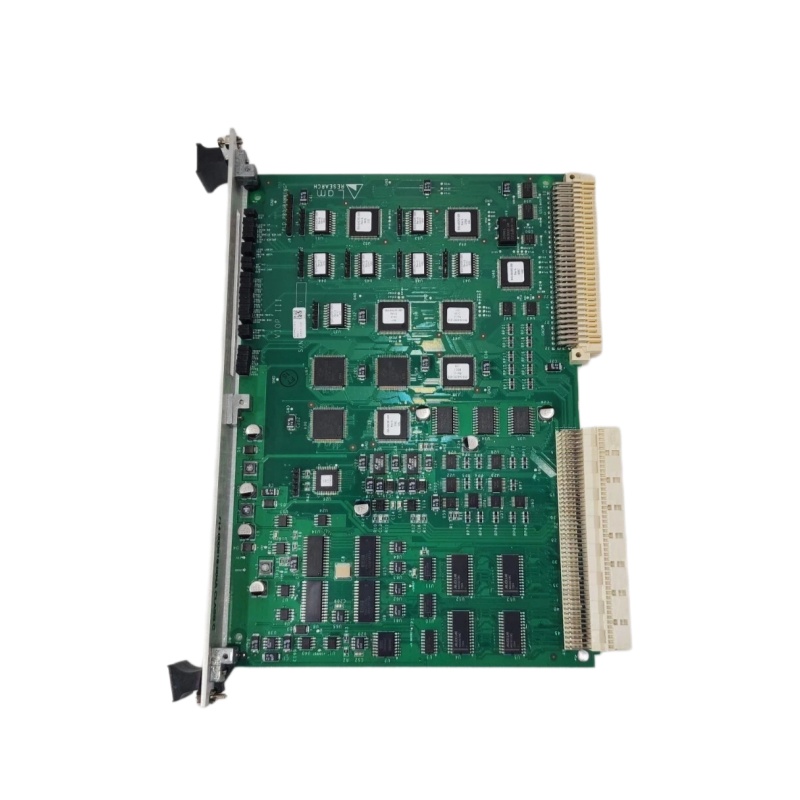

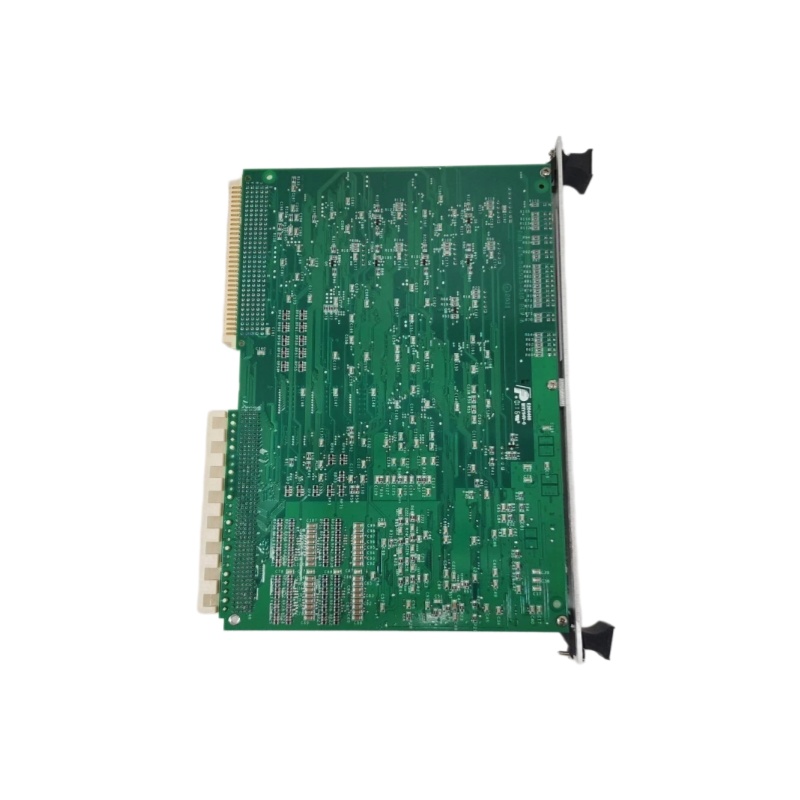

The 810-046015-010 is a VIOP III (Versatile I/O Processor Phase III) control board assembly developed by Lam Research. It is a core control component dedicated to Lam Research semiconductor manufacturing equipment. Designed for advanced wafer processing systems, the board undertakes real-time signal processing, equipment internal communication and I/O management tasks.
It acts as a high-performance connection hub for equipment sensors, actuators and the main control system, guaranteeing the stable operation of semiconductor process tools. Semiconductor manufacturing requires ultra-precise control of chamber conditions, gas supply, motion and interlock parameters. As a key processing and communication platform, this VIOP III board coordinates system signals and ensures consistent and reliable equipment operation throughout the fabrication process.
This product is widely applied in maintenance, repair and spare part replacement scenarios for Lam Research platforms, especially the Lam 2300 series and other mainstream wafer processing systems.
Technical Specifications
|
Parameter
|
Description
|
|---|---|
|
Manufacturer
|
Lam Research
|
|
Part Number
|
810-046015-010
|
|
Product Type
|
VIOP III Control Board / PCBA
|
|
Board Name
|
Versatile I/O Processor Phase III
|
|
Application
|
Semiconductor Manufacturing Equipment
|
|
Core Function
|
I/O processing, signal transmission, equipment control interface
|
|
Board Architecture
|
Industrial-grade control PCB
|
|
Communication Framework
|
VME-based system architecture
|
|
Installation Position
|
Semiconductor process equipment controller
|
|
Compatible Devices
|
Lam Research full-series wafer processing platforms
|
|
Main Usage
|
Equipment maintenance and spare part replacement
|
Functional Description
The 810-046015-010 VIOP III board serves as an intelligent interface module for semiconductor processing equipment. It mainly collects, processes and transmits operating data between on-site hardware components and the main equipment controller.
It supports multiple core equipment operation functions:
- Real-time I/O signal processing
- Control subsystem intercommunication
- Real-time equipment status monitoring
- Interlock signal management and protection
- Sensor and actuator collaborative control
- Process sequence execution assistance
In semiconductor fabrication, minor signal delays or errors will compromise wafer processing quality. The optimized VIOP III architecture delivers stable data processing and accurate control coordination, sustaining consistent and high-quality production performance.
Hardware Structure and Composition
High-Density Industrial PCBA
This product adopts a high-density industrial printed circuit board assembly design. It integrates multiple professional electronic components, adapting to long-term continuous operation in complex semiconductor production environments. The core components include processor circuits, memory modules, signal conditioning circuits, communication interfaces, power regulation units and precision connector assemblies. Its compact integrated design consolidates multiple control functions, effectively simplifying the internal structure of equipment cabinets.
VIOP Core Processing Unit
The core processing module undertakes real-time data calculation and control logic execution. Its main functions cover receiving sensor input signals, parsing control commands, managing communication protocols, feeding back operating data and supporting equipment self-diagnosis, enabling fast and precise interaction of all modules in wafer processing tools.
I/O Interface Module
The board is equipped with comprehensive input and output signal interfaces to match full-scenario equipment operation. It supports digital input/output signals, equipment interlock signals, status feedback signals and control communication data, realizing efficient data interaction between hardware modules and the central control system.
Industrial Communication Interface
Built with industrial-grade communication architecture, the board supports multi-device data interaction. It realizes controller interconnection, module synchronous operation, real-time status transmission and instant data exchange, laying a solid foundation for precise and stable semiconductor process control.
Key Features
- Professional Semiconductor Equipment Control: Customized for wafer manufacturing scenarios, it provides stable control and reliable communication for complex process equipment.
- High-Speed Real-Time Signal Processing: Advanced VIOP III architecture accelerates signal response and improves the sensitivity and accuracy of process control.
- Superior System Reliability: Designed for long-cycle industrial operation, it adapts to continuous production needs and minimizes equipment downtime.
- Modular Replaceable Design: The independent PCBA structure allows targeted replacement of faulty boards without dismantling the entire control system, greatly shortening maintenance time.
- Precision Manufacturing Support: Stable signal transmission and data processing ensure consistent equipment operation and qualified wafer processing results.
Standard Installation Steps
- Safely shut down the semiconductor equipment and cut off the system power supply;
- Carefully remove the original faulty VIOP board;
- Install the 810-046015-010 replacement board and fix all mounting positions;
- Stably connect all interface connectors;
- Start the equipment and complete system diagnosis and function verification.
Daily Maintenance Guidelines
- Keep the control cabinet clean and dust-free to avoid component contamination;
- Regularly inspect connectors for looseness and oxidation;
- Monitor equipment alarm information and diagnostic data in real time;
- Implement strict electrostatic protection measures during operation and storage;
- Store spare boards in ESD-safe packaging;
- Carry out regular preventive inspections in accordance with equipment maintenance schedules.
Standardized daily maintenance effectively improves equipment operation stability and avoids unexpected production interruptions.
