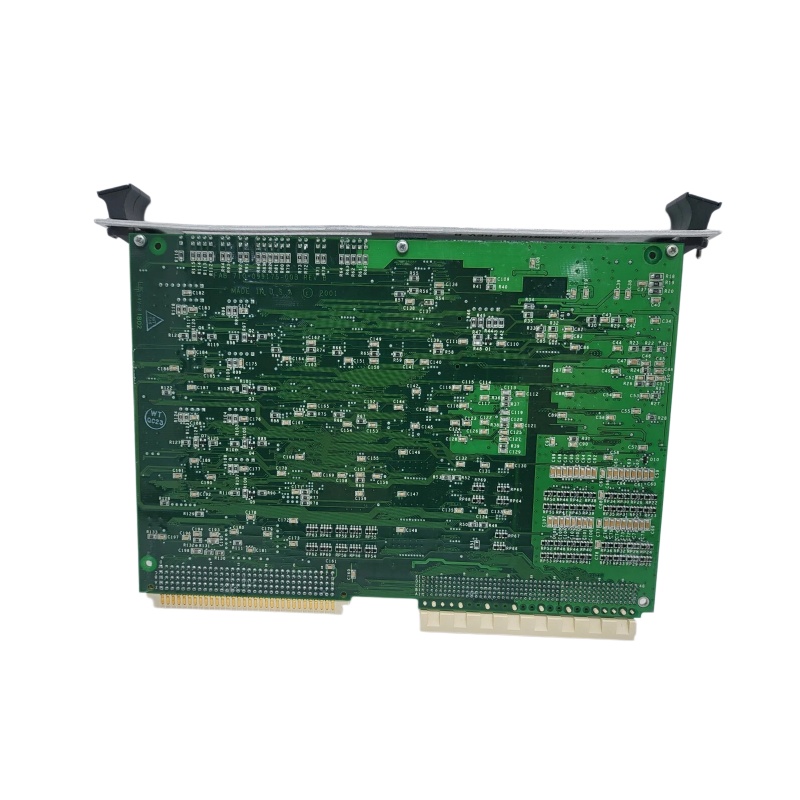

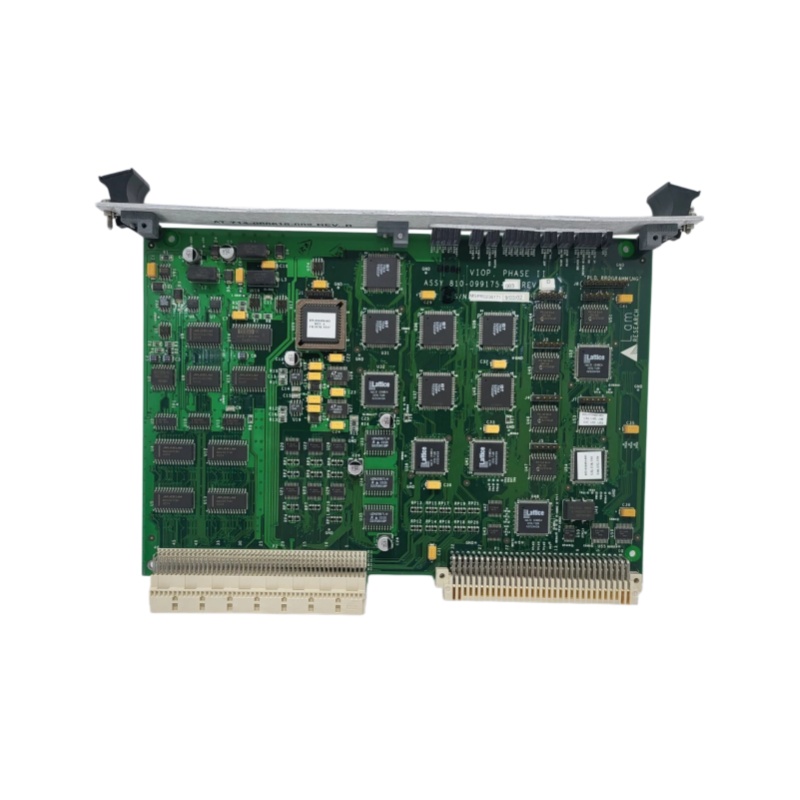

Lam Research 810-099175-003 Control Panel
Lam Research 810-099175-003
Product Overview
The Lam Research 810-099175-003 is a high-performance Printed Circuit Board Assembly (PCBA) exclusively designed and manufactured by Lam Research for its industry-leading semiconductor plasma etching and deposition equipment. Classified officially as a Gas Panel Control Board, this original 810-series spare part is core to the precision control, real-time monitoring, and safety interlock of the equipment’s process gas supply system.
In semiconductor manufacturing, critical process parameters including gas flow rate, pressure, mixing ratio, and switching timing directly determine wafer etching rate, process selectivity, and thin-film uniformity. Serving as the neural center of the precision fluid delivery system, the Lam Research 810-099175-003 executes commands from the main controller and converts them into precise drive signals for key actuators such as Mass Flow Controllers (MFCs), pneumatic switching valves, and pressure regulators. Meanwhile, it collects real-time status feedback from pressure sensors and flow meters, ensuring all process gases are delivered to the reaction chamber accurately and safely in strict accordance with customized process recipes.
This control board is functionally associated with the Alliance Gas Box, serving as the core control component of the integrated, modular gas path management unit deployed in Lam Research semiconductor equipment. The Alliance Gas Box is a critical subsystem responsible for precisely mixing multiple process gases and distributing them to different chamber inlets, which demands ultra-high control accuracy and rapid response speed.
Product Specifications
|
Parameter Name
|
Parameter Value
|
|---|---|
|
Product Model
|
810-099175-003
|
|
Manufacturer
|
Lam Research
|
|
Product Type
|
Gas Panel Control Board
|
|
Functional Description
|
Precise control and real-time status monitoring of process gas flow, pressure, and valve switching
|
|
Associated Subsystem
|
Alliance Gas Box (Gas Distribution Box)
|
|
Compatible Platforms
|
Lam Research semiconductor etching and deposition equipment
|
|
Application Environment
|
Class 1000 or higher cleanroom / Semiconductor Fab environment
|
|
Main Interfaces
|
Analog (0-10V / 4-20mA), Digital I/O, Equipment field bus interface
|
|
Product Status
|
Original spare part / Replacement part
|
Structure and Composition
The internal structure of the Lam Research 810-099175-003 embodies the premium design principles of high-reliability industrial process control boards. Built on a multi-layer Printed Circuit Board (PCB) with high-quality FR-4 flame-retardant material, the board layout is optimized for thermal management, signal integrity, and electromagnetic interference (EMI) resistance. Functionally, the board is divided into three core modular units: analog signal processing & drive unit, digital logic & communication unit, and power management & safety interlock unit.
The analog signal processing & drive unit serves as the executive module of the board. It integrates multi-channel high-precision Digital-to-Analog Converters (DACs) and voltage/current drive circuits to output standard 0-10V or 4-20mA control signals for accurate MFC flow threshold configuration. Additionally, it is equipped with high-sensitivity signal conditioning circuits to amplify and process weak bridge signals transmitted by pressure sensors.
The digital logic & communication unit functions as the brain and data interaction hub of the board. Composed of a Microcontroller Unit (MCU) or Field Programmable Gate Array (FPGA) and peripheral circuits, it parses digital commands from the main controller, executes local logical judgments including timing interlock protection, and realizes high-speed data exchange with the upper system via industrial field buses such as DeviceNet and EtherCAT.
The power management & safety interlock unit is a critical safety module featuring an independently isolated power supply and hardware watchdog circuit, as well as an Emergency Off (EMO) interface. In case of equipment abnormalities, this unit can immediately and unconditionally cut off the drive power of all pneumatic valves, switching the entire gas path system to a safe state. The seamless collaboration of the three functional units ensures precise, stable, and safe management of complex semiconductor gas delivery processes.
Key Features and Advantages
1. Ultra-High Precision Flow and Pressure Control
Equipped with on-board high-resolution DACs and high-stability voltage reference sources, the Lam Research 810-099175-003 delivers ultra-precise control over MFCs and pressure regulators. It maintains a minimal deviation between actual on-site gas ratios and standardized process recipes throughout wafer fabrication. This high precision guarantees uniform critical dimension (CD) distribution in etching processes and consistent thin-film thickness in deposition processes, which is essential for stabilizing the yield of nanometer-scale semiconductor manufacturing.
2. Multi-Layer Safety Interlock and Intrinsic Safety Design
Targeting the risks of flammable and toxic process gases widely used in semiconductor manufacturing, the control board integrates comprehensive hardware-level safety interlock logic. It enforces standardized process sequences, such as completing full purge cycles before specific valve activation, and automatically cuts off hazardous gas supplies when abnormal chamber pressure is detected. The independent safety monitoring channel is physically and electrically isolated from the main control channel. Even if the main control software malfunctions, the hardware emergency cut-off circuit operates reliably, providing a robust safety barrier for equipment and factory personnel.
3. High Reliability and Low Failure Rate
As an original certified component, the 810-099175-003 adopts industrial-grade components optimized for process control scenarios and undergoes strict temperature cycle aging and full-functional testing. The board is structurally optimized for EMI suppression, maintaining stable and drift-free analog signal control and acquisition for MFCs and pressure sensors even in high-interference environments near radio frequency (RF) generators. This effectively reduces process anomalies caused by signal jitter and data deviation, ensuring long-term stable equipment operation.
Application Fields
The Lam Research 810-099175-003 is exclusively applied to core semiconductor manufacturing processes: plasma etching and Plasma-Enhanced Chemical Vapor Deposition (PECVD). It is widely integrated into Lam Research mainstream equipment platforms, including the 2300®, Kiyo®, and Versys® series etchers and corresponding deposition systems, serving as the core control component of the Alliance Gas Box in the production of logic chips (CPU, GPU), memory chips (DRAM, 3D NAND flash), power devices, and Micro-Electro-Mechanical Systems (MEMS).
Its core application scenarios cover two key dimensions. First, as the command center of the gas path system, it controls the sequential switching of pneumatic valves and sets multi-channel MFC parameters in each process cycle to complete complex gas switching and proportional mixing, such as C₄F₈/CO/Ar mixed gas for silicon dioxide etching and SiH₄/NH₃/N₂ mixed gas for silicon nitride deposition. Second, as the safety monitor of the gas supply system, it continuously monitors gas path pressure, flow rate, and operating status. It triggers hardware interlock protection, cuts off hazardous gas sources, and outputs alarm signals immediately once gas leakage or pressure abnormalities are detected.
A fully functional 810-099175-003 is the core hardware guarantee for accurate recipe execution, safe equipment operation, and high wafer yield. Meanwhile, it is a key spare part for fabs to maintain gas system stability and respond to sudden equipment failures.
Related Products
- Lam Research 810-800256-004 / 005: 810-series Node Board, a universal control node for equipment control systems, working in coordination with the gas panel control board.
- Lam Research 810-107813-004: Electrostatic Chuck (ESC) control PCB, responsible for ESC drive and control, serving as a high-value core spare part for independent functional subsystems.
- Lam Research 810-341681-102: RF sensor board installed inside equipment matchers, cooperating with the gas panel control board to stabilize process parameters.
- Lam Research 810-707103-001: I/O bus control board, managing internal equipment data communication and belonging to the high-value core spare part system of Lam Research equipment.
- Lam Research 810-495659-308: ESC power supply and control PCBA (Bicep II DC-Probe), a key component of the ESC subsystem.
Installation and Maintenance
Pre-Installation Preparation
Installation of the 810-099175-003 must be performed by professional technicians with official Lam Research training and gas safety qualifications in a Class 1000 or higher controlled cleanroom environment. Before operation, cut off the main equipment power supply, compressed air source, and all process gas sources, and complete Lockout/Tagout (LOTO) procedures to fully purge and depressurize the gas path system.
Operators must wear complete cleanroom garments and ESD protective equipment (ESD wrist strap with grounding wire), and additional personal protective equipment such as acid and alkali resistant gloves is required for contact with corrosive gases. The board connects to the internal wiring and backplane of the Alliance Gas Box via on-board connectors. During installation, align the connectors accurately and insert the board evenly to ensure full mechanical engagement and firm fixation. Connect all auxiliary cables correctly and verify polarity strictly. Touching on-board components and gold fingers is strictly prohibited to avoid electrostatic damage and surface contamination.
————————————————————————————————————-
