Lam Research 810-800256-107

Overview

The Lam Research 810-800256-107 is a Type 3 Node Board PCB and control card designed for use in Lam Research semiconductor manufacturing equipment. Available industry listings identify this part as a Rev. B Node Board PCB Control Card with Screen. It is also listed as a Type 3 node board with an integrated display module.

As part of a semiconductor equipment control architecture, the board can provide localized control, monitoring, and communication functions between equipment subsystems. Its integrated display can also assist technicians with equipment status checking and troubleshooting.

The 810-800256-107 is therefore a useful replacement component for maintenance teams supporting compatible Lam Research systems.

Technical Parameters

The exact electrical ratings, connector assignments, firmware configuration, and supported equipment models should be verified against the specific machine configuration before replacement. A Lam Research 2300 equipment checklist references the 810-800256-107 as a Node Board 2 option.

Key Functions

The 810-800256-107 is built around several practical functions:

• Local equipment control
• Process-system monitoring
• Communication with connected equipment modules
• Status indication through the integrated display
• Support for machine diagnostics
• Interface between control electronics and other system components

Its combination of control electronics and display functionality makes the board particularly useful when technicians need both machine-level control and direct visual status information.

Board Construction

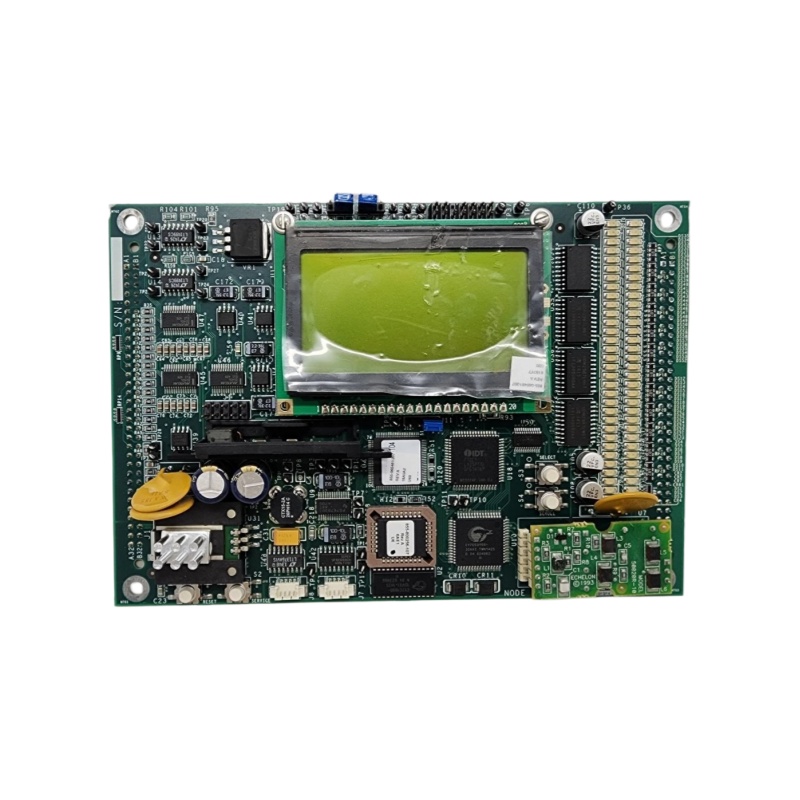

The assembly consists primarily of a printed circuit board populated with electronic control components, interface circuitry, connectors, and an integrated display module. One industry listing specifically identifies the assembly as “NODE BD CTRL TYPE 3 W/NMTG.S12864BFYHSGY.C,” indicating the presence of a display component within the assembly.

The PCB format allows the board to be installed within the equipment’s existing electronic architecture without replacing the entire control system.

Because semiconductor equipment operates in demanding environments, careful handling of the PCB is important. Electrostatic discharge, contamination, connector damage, and improper storage can affect electronic assemblies.

Where It Is Used

The Lam Research 810-800256-107 is intended for semiconductor equipment applications. Typical maintenance scenarios may include:

• Wafer processing equipment
• Semiconductor fabrication systems
• Process control systems
• Equipment refurbishment
• Factory equipment maintenance
• Replacement of defective node boards
• Spare-parts inventory programs

Its identification in Lam Research 2300 equipment documentation makes compatibility checking especially important when sourcing this component.

Installation and Maintenance

Before installation, technicians should verify the complete part number, board revision, machine configuration, and existing board arrangement. The replacement should match the original hardware as closely as possible.

Power should be completely isolated before removing or installing the PCB. Use appropriate ESD protection and avoid touching exposed electronic components or connector contacts unnecessarily.

After installation, inspect all connections carefully. The integrated display should also be checked during equipment startup to confirm that the board is communicating correctly with the system.

For used or refurbished units, functional testing is recommended before putting the board into production service.

Replacement Value

For fabs operating mature Lam Research equipment, maintaining an appropriate spare node board can reduce repair time when a control PCB fails. The 810-800256-107 is a specialized OEM part, so correct part-number matching is more reliable than attempting to substitute a generic industrial controller.

We supply Lam Research 810-800256-107 Node Board Control Cards for semiconductor equipment maintenance and replacement requirements. Availability, revision, condition, and testing status can be confirmed according to your project needs.
