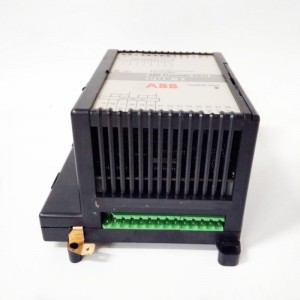

ABB 07EA63R1

1. Overview

The ABB 07EA63R1 is an analog input module developed by ABB, designed primarily to acquire and process analog signals from sensors or other devices. This module is commonly used in industrial automation systems to enable precise measurement and control of continuous variables such as temperature, pressure, and flow rate. It supports multiple communication protocols, ensuring seamless integration with other equipment.

2. Technical Parameters

• Input Channels: Typically features 4 analog input channels, supporting 0-10V or 4-20mA signal inputs.
• Resolution: Typically 16-bit or 24-bit, delivering high-precision signal acquisition.
• Operating Voltage: Typically 24V DC.
• Input Impedance: Typically 100kΩ, ensuring accurate signal capture.
• Output Signal: Converts to digital signals for transmission to control systems.
• Communication Interface: Supports multiple industrial protocols such as Profibus, Profinet, and Modbus for easy integration.

3. Key Features

• High Precision: Utilizes a high-resolution ADC (Analog-to-Digital Converter) for accurate signal processing.
• Flexible Configuration: Compatible with various input signal types and ranges for diverse applications.
• Easy Integration: Supports multiple communication protocols for seamless connectivity with other systems.
• High Reliability: Designed for industrial-grade durability, suitable for harsh environments.
• Low Power Consumption: Energy-efficient design reduces overall system power usage.

4. Structure and Components

The ABB 07EA63R1 consists of the following key components:

• Input Channels: 4 analog input channels, each operating independently (supports 0-10V or 4-20mA).
• ADC (Analog-to-Digital Converter): Converts analog signals into stable, high-accuracy digital signals.
• Signal Processing Unit: Calibrates and processes acquired signals to ensure output accuracy.
• Communication Interface: Supports Profibus, Profinet, Modbus, etc., for system integration.
• Power Module: Provides stable power supply to the module.

5. Applications

The ABB 07EA63R1 is widely used across industries, including:

• Process Control: Measures and controls variables like temperature, pressure, and flow rate.
• Energy Sector: Signal acquisition in power generation, transmission, and distribution.
• Manufacturing: Automation of production lines (e.g., assembly, inspection, packaging).
• Building & HVAC: Building automation systems (e.g., HVAC, lighting, ventilation).
• Transportation: Control systems for automotive, railways, and aviation.
• Water Treatment: Monitoring and control in wastewater, supply, and drainage systems.

———————————————————————————————————————————
