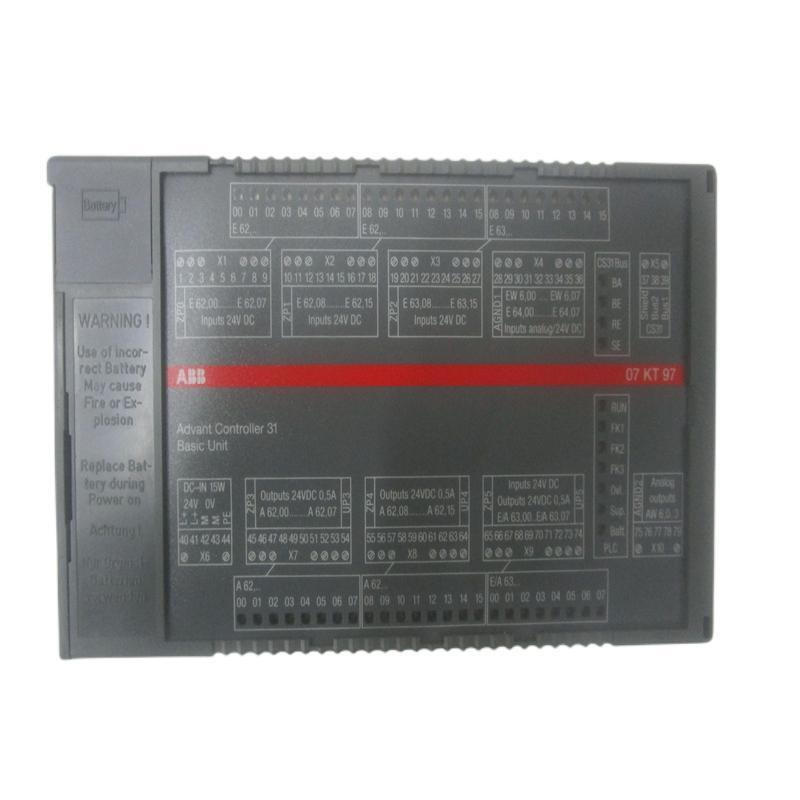

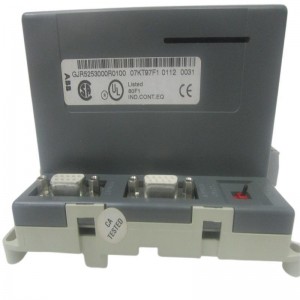

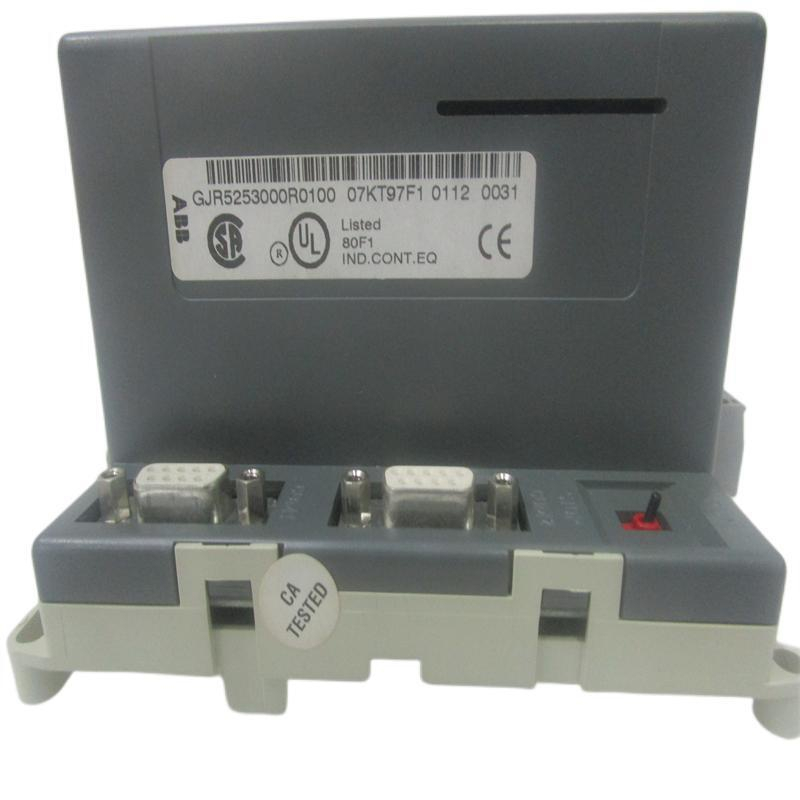

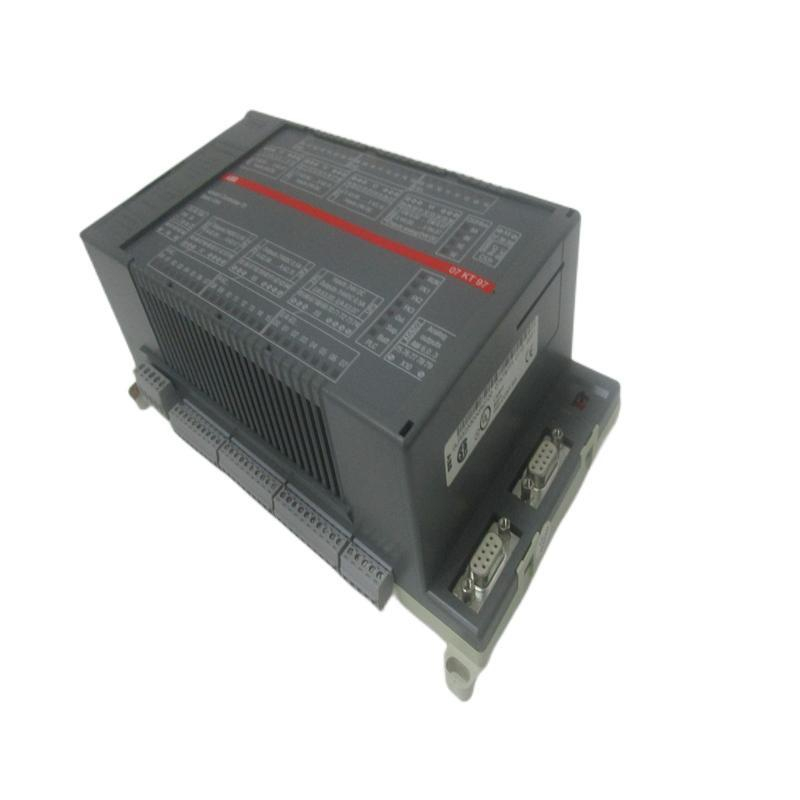

ABB 07KT97F1

I. Overview

II. Parameters

• Input voltage: 24VDC
• Output voltage: 24VDC
• Input signal types: digital, analog
• Output signal types: digital, analog
• Communication interfaces: RS232, RS485, Ethernet
• Dimensions: 120mm x 120mm x 40mm
• Weight: 0.5kg
• Operating temperature: -40℃ ~ 85℃
• Protection class: IP67
• Sampling period: 10ms
• Accuracy: 0.1%
• Number of channels: 8 input channels
• Operating frequency: F
• Contact configuration: R630F
• Electromagnetic system: LSI
• Terminal block: 221 DS
• Rated current: 30A
• Rated voltage: AC 380-480 V
• Operating voltage: 3P
• Protection level: IP65
• Communication interface: RS485
• Supports multiple industrial communication protocols: such as Modbus, Ethernet/IP, etc.

III. Product Features

• High reliability: Adopts industrial-grade design with high reliability.
• Flexibility: Supports multiple voltage and current levels to meet various application requirements.
• Ease of use: Equipped with easy-to-follow installation and wiring instructions.
• High precision: Utilizes advanced ADC chips and signal processing circuits, featuring high precision and high stability.
• Multi-channel input and output: Has 8 channels, supporting input and output of digital and analog signals.
• Multiple communication protocols: Supports various communication protocols such as RS232, RS485, and Ethernet.
• Modular design: Facilitates installation and maintenance.
• High durability: Adopts R630F contact configuration, ensuring higher durability.
• High efficiency: Uses LSI electromagnetic system, achieving higher efficiency and reliability.

IV. Structure and Composition

• Basic unit: As the basic unit of the Advant Controller 31 series, it is responsible for controlling and coordinating the operation of other equipment.
• Modular design: Composed of multiple intelligent controllers, each with independent control functions to complete specific production tasks.
• Communication network: Controllers are connected to each other through a communication network to realize information interaction and coordinated control.
• Interfaces: Provides multiple communication interfaces such as RS232, RS485, and Ethernet for easy connection with external devices.
• Power supply: Uses DC power supply with an operating voltage of 24VDC.
• Storage: Has a storage capacity of 480KB and supports multiple programming languages such as ladder logic, ST, and FBD.

V. Application Fields

• Industrial automation: Used in automated production lines, robot control, process control, and other fields.
• Power engineering: Applied to the control and monitoring of power systems.
• Water treatment: Used for the control and monitoring of water treatment systems.
• Food and beverage: Employed in the automated control of the food and beverage industry.
• Petrochemical industry: Utilized in the automated control of the petrochemical industry.
• Iron and steel industry: Applied to the automated control of the iron and steel industry.
• Sewage treatment: Used for the control and monitoring of sewage treatment systems.
• Building automation: Employed in the control and monitoring of building automation systems.

VI. Installation and Maintenance

• Preparation before installation: Before installation, ensure that the equipment is powered off and all safety operating procedures are followed.
• Installation steps:Post-installation inspection: After installation, appropriate calibration and testing should be conducted to ensure the accuracy and stability of the module.
  • Connect the input signal to the analog input port of the 07KT97F1.
  • Connect the 07KT97F1 to the upper computer or other control devices via the RS485 interface.
  • Configure the parameters of the 07KT97F1, such as the number of channels and sampling period.
  • Start signal collection and transmission.
• Maintenance: Regularly check the operating status of the module to ensure its normal operation. If any abnormality is found, timely repair or replacement should be carried out.

———————————————————————————————————————————
