1. Overview

2. Main Parameters

• Input Type: Digital input (usually supports 24V DC or 110/230V AC, which should be confirmed with the specific wiring diagram).
• Output Type: Digital output (relay or transistor).
• Number of Channels: Usually 8 channels or 16 channels (depending on the definition of the “432″ suffix, 16 points are common).
• Electrical Isolation: Electrical isolation is provided between input and output, and between channels, with strong anti-interference ability.
• Operating Voltage: The auxiliary power supply is usually 24V DC.
• Environmental Requirements: Operating temperature -20°C – +60°C, storage temperature -40°C – +85°C.
• Protection Level: Usually meets IP20 (panel mounting) or IP65 (in-cabinet dustproof) standards.

3. Product Features

• High Reliability: Designed specifically for harsh industrial environments with strong electromagnetic interference (EMC) resistance.
• Modular Design: Can be easily inserted into the ABB controller backplane and communicate with the main controller through a bus (such as the backplane bus of AC 800M).
• Status Indication: The module panel is usually equipped with LED indicators to display the input/output status, power status and communication status of each channel.
• Fast Response: Supports real-time data collection and control output to meet high-speed control needs.
• Easy Maintenance: Supports hot swapping (specific system configuration needs to be confirmed), facilitating fault diagnosis and module replacement.

4. Structure and Composition

• Housing: Sturdy plastic or metal housing with mounting rail buckles.

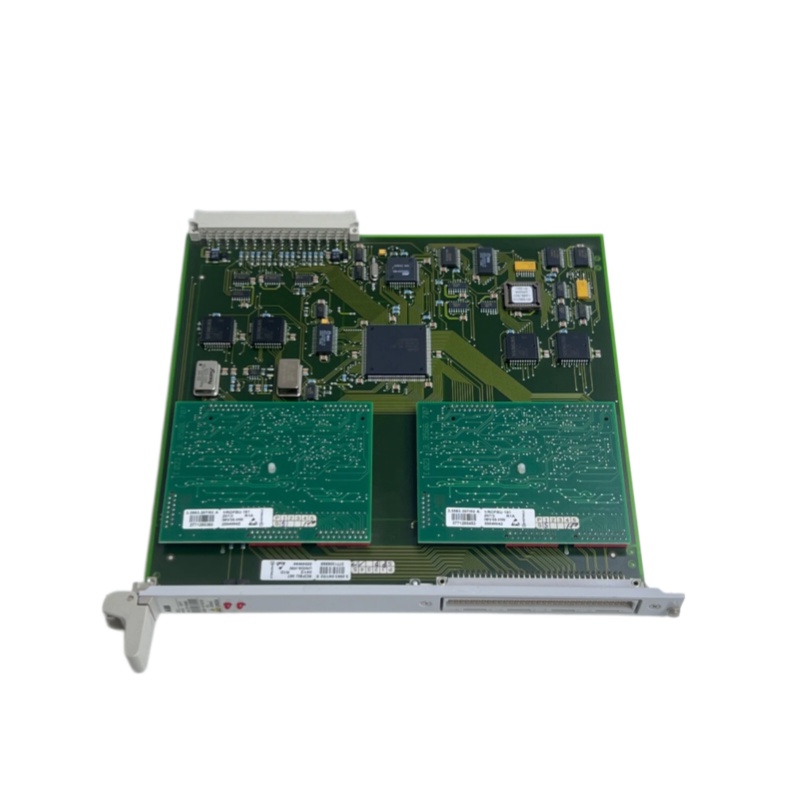

• Circuit Board: The core PCB includes a microprocessor, optocoupler, power management chip and communication interface.
• Terminal Blocks: Top or bottom terminal blocks for connecting on-site signal lines and power lines.
• Connector: Backplane connector for communicating with the controller rack.
• Indicating Devices: Multiple groups of LED lights for real-time monitoring.

5. Application Fields

• Power Industry: Substation automation, generator control.
• Petrochemical Industry: Process control, safety interlock system.
• Water Treatment: Pump station control, liquid level monitoring.
• Heating, Ventilation and Air Conditioning (HVAC): Fan and valve control.
• Mechanical Manufacturing: Production line automation, equipment monitoring.

6. Installation and Maintenance

6.1 Installation

1. Ensure the control system is powered off.
2. Insert the module vertically into the expansion slot of the controller until it is locked.
3. Connect the on-site signal lines to the terminal block, paying attention to the wiring polarity (for DC).
4. Check the LED status after power-on.

6.2 Maintenance

1. Regularly check if the terminal blocks are loose.
2. Clean the dust on the module surface (to be done after power-off).
3. If the fault light is always on, check the status of the corresponding channel and replace the module if necessary.
4. Record the operation log and replace spare parts in time if abnormalities are found.
