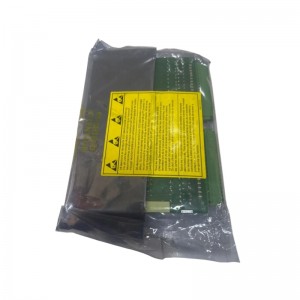

ABB 1MRK000508-ADr05 Transformer
ABB 1MRK000508-ADr05
1. Product Overview
ABB 1MRK000508-ADr05 is a specific model of intelligent electronic device (IED) for transformer protection under the ABB RET670 series, categorized into the ABB Relion®670 series. Designed to deliver reliable protection and control for various power transformers and reactors, this device is optimized for power transmission scenarios, and provides pre-configured or customized protection solutions for field application.
2. Technical Parameters
2.1 Basic Electrical Parameters
|
Parameter Item
|
Specification
|
|---|---|
|
Operating Voltage
|
24V DC / 48V DC / 110V AC-DC / 220V AC-DC (varies by specific model)
|
|
Operating Frequency
|
50Hz or 60Hz
|
|
Rated Current
|
1A or 5A
|
|
Accuracy Class
|
0.2S, 0.2, 0.5S, 0.5, 1.0
|
2.2 Environmental & Physical Parameters
|
Parameter Item
|
Specification
|
|---|---|
|
Operating Temperature Range
|
-40°C to +70°C or -20°C to +55°C (varies by specific model)
|
|
Ingress Protection Class
|
IP20 to IP67 (subject to specific configuration)
|
|
Overall Dimension
|
Approx. 110mm × 70mm × 35mm (modular version) / 483mm × 135mm × 497mm (panel-mounted version)
|
|
Weight
|
Approx. 0.2kg – 0.5kg (modular version) / 5kg – 16kg (panel-mounted version)
|
2.3 Communication Interface
- Compliant with IEC 61850 standard (supporting GOOSE message and SV sampling)
- Compatible with mainstream communication protocols including Modbus, DNP3.0, IEC 60870-5-103
- Communication Port: Dual optical fiber Ethernet port
3. Product Features
3.1 Core Protection Functions
Transformer Differential Protection (87T): Equipped with fast low-impedance differential protection function. It can automatically match CT ratios and compensate vector groups, applicable to multi-circuit breaker configurations with up to six restrained CT inputs. The differential protection integrates second harmonic and waveform blocking functions to avoid false tripping caused by CT saturation and transformer inrush current; it also adopts fifth harmonic blocking logic to prevent tripping triggered by transformer over-excitation.
Overcurrent Protection: Supports definite-time and inverse-time overcurrent protection, covering three-stage overcurrent protection, negative-sequence overcurrent protection and other sub-functions.
Earth Fault Protection: Built with low-impedance earth fault protection (REFPDIF) and high-sensitivity zero-sequence current protection.
Distance Protection: Supports three-stage distance protection, directional impedance elements and Mho impedance supervision logic.
Voltage & Frequency Protection: Realizes overvoltage, undervoltage, over-frequency and under-frequency protection functions.
Over-excitation Protection: Provides real-time monitoring and protection against transformer over-excitation faults.
3.2 Other Technical Advantages
- Stable operation within a wide frequency range to adapt to frequency fluctuation of power systems
- Low requirements for main CT, no intermediate CT required for field wiring
- Built-in disturbance recorder and event recorder to facilitate post-fault analysis and troubleshooting
- Powerful self-diagnosis function to monitor real-time operating status of internal modules
- Supports local and remote control, with built-in safety interlock function
- Pluggable modular design for convenient on-site installation, replacement and maintenance
4. Structure & Composition
4.1 Hardware Structure
- The RET670 series adopts standard IED structure and digital protection technology
- Equipped with high-performance microprocessor and advanced algorithm processing capability
- Integrated human-machine interface (HMI) for local viewing of operating status, parameter data, event records and disturbance data
- Supports position indication and monitoring of 30 primary equipment (partial models)
4.2 Main Component Modules
- Protection Module: Realizes core protection functions including differential protection, overcurrent protection and earth fault protection
- Communication Module: Provides Ethernet and optical fiber communication ports, fully compliant with IEC 61850 protocol
- Power Supply Module: Supplies stable operating power for the whole device
- I/O Module: Receives analog and digital signals, and outputs field control signals
- HMI Module: Implements local parameter configuration, operation control and data display functions
————————————————————————————————————-
