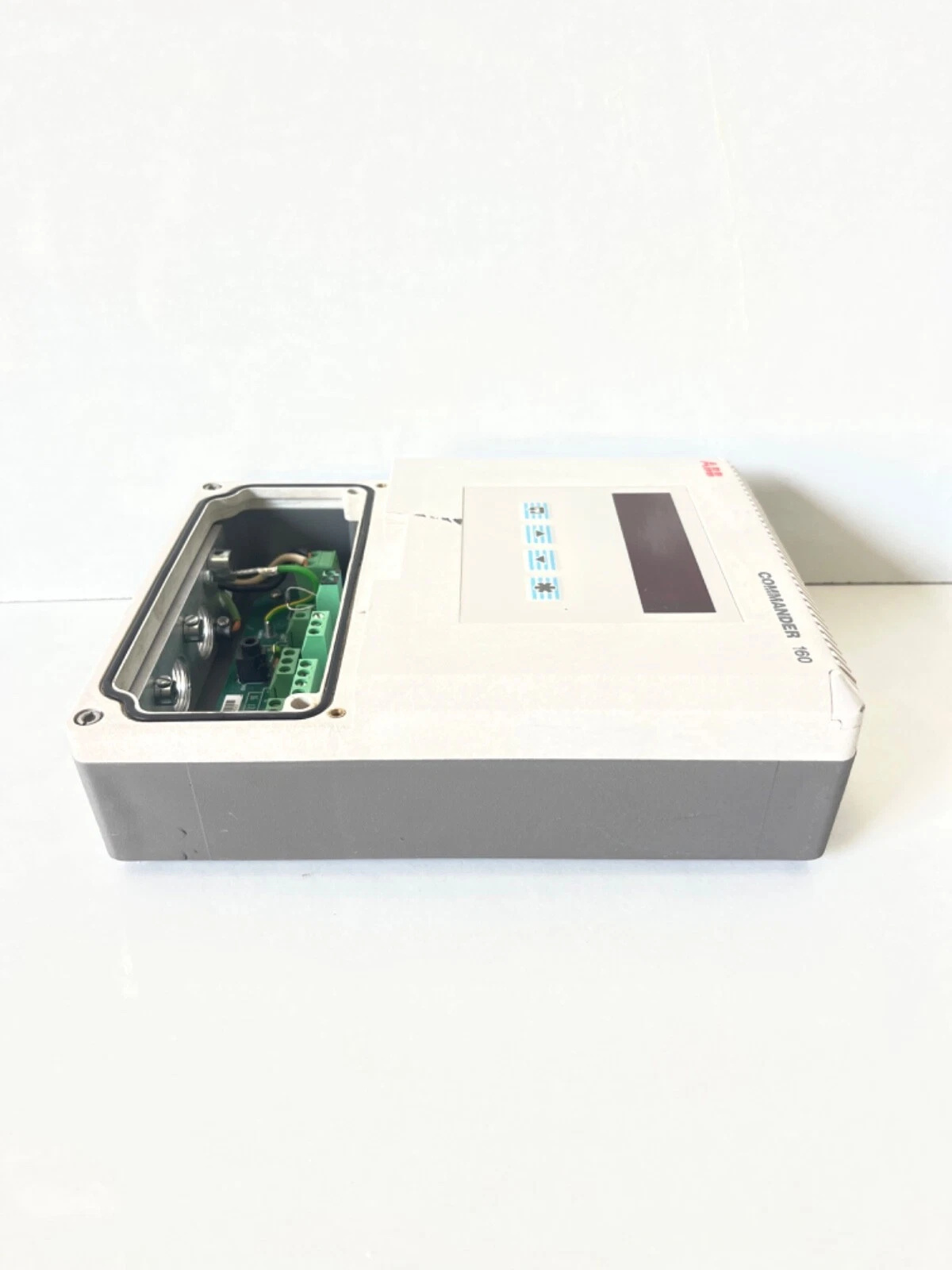

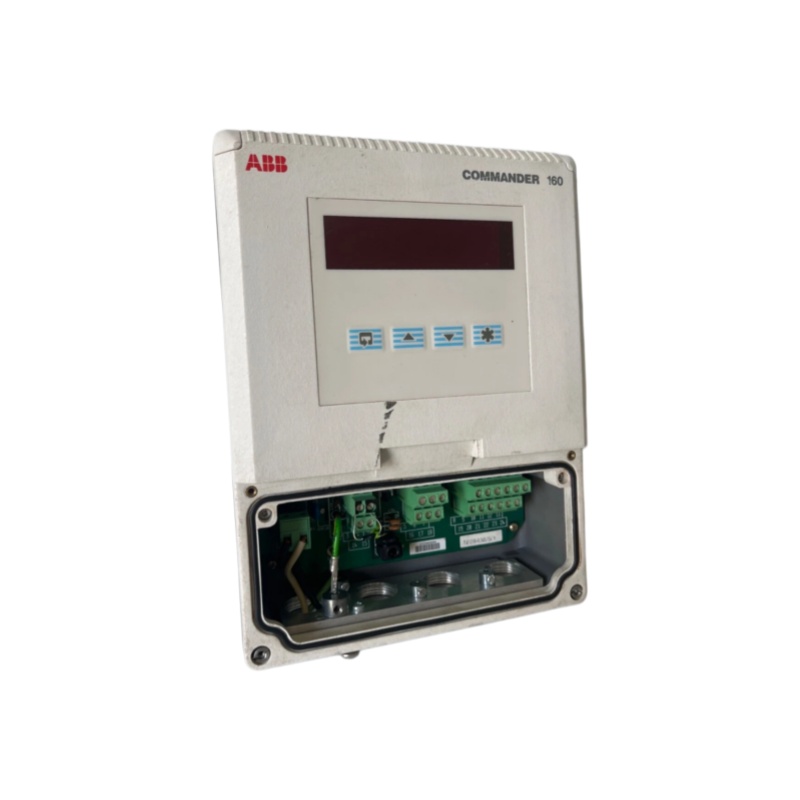

ABB C160 0100 STD Process Indicator
ABB C160 0100 STD
1. Product Overview
The ABB C160 is an industrial process indicator with high versatility and high reliability, applicable to a wide range of industrial environments. As a product under the ABB COMMANDER series, it is designed to measure and display process variables including temperature, pressure, flow rate and liquid level. Featuring high measurement accuracy, high ingress protection rating (IP66/NEMA4X) and diversified output interfaces, this device supports pipe-mounted and wall-mounted installation modes.
2. Configuration Code Analysis (0100 STD)
|
Configuration Item
|
Code
|
Definition
|
|---|---|---|
|
Relay Option
|
01
|
2 relays + 1 digital input + 4-20mA retransmission output + logic output
|
|
Power Supply Option
|
0
|
85-265V AC power supply (M20 threaded connection with compression terminals)
|
|
Version
|
0
|
ABB Standard Version
|
|
Programming / Special Functions
|
STD
|
Standard factory configuration
|
3. Main Technical Parameters
3.1 Display Specifications
- Display Screen: 1 x 6-digit high-brightness LED display
- Display Range: Process value from -9999 to +99999
- Total Accumulation Range: 0 to 999999
- Measurement Accuracy: 0.1%
- Analog Output Accuracy: ≤0.25% of full scale
3.2 Input and Output Specifications
- Input Type: Universal input (thermocouple, RTD, mV, current, voltage signal)
- Built-in Power Supply: 24V/30mA transmitter power supply
- Analog Output: 4-20mA retransmission output, 500V DC isolation protection
- Relay Output: 2 standard 5A relay alarm outputs (1 additional relay optional)
- Digital Input: Passive input, minimum pulse width: 250ms
- Communication Interface: Optional RS485/Modbus RTU (Modbus slave mode)
3.3 Physical Specifications
- Dimensions: 160mm (W) × 250mm (H) × 68mm (D)
- Weight: Approx. 2kg
- Ingress Protection Rating: IP66/NEMA4X
3.4 Power Supply and Environmental Parameters
- Power Supply Options: 85-265V AC 50/60Hz or 24V DC (M20 or NPT connection)
- Power Consumption: <6VA
- Operating Temperature: -10°C to 55°C
- Humidity: 5% to 95% RH (non-condensing)
4. Product Features
4.1 Display and Alarm Functions
- High-visibility LED display: Realizes clear viewing of real-time process status
- Dual alarm relays: Supports high/low process value alarm trigger
- Tricolor LED alarm indication: Configurable for high/low process alarm, high/low latching alarm, fast/slow rate alarm
- Alarm status indication: Triggered via flickering LED lights
4.2 Data Processing Functions
- 6-digit totalization function: Applicable to flow totalization, batch control and safety accumulation statistics
- Mathematical operation function: Maximum/minimum value detection, average value calculation
- Custom linearization: Supports 20-point linearization, suitable for volume conversion calculation
4.3 Environmental Adaptability
- Sensor break protection: High/low temperature drive protection and automatic cold junction compensation
- RF Immunity: Excellent radio frequency immunity, adaptable to harsh industrial working environments
- Power interruption protection: No operational impact within power failure less than 60ms; controllable reset and automatic recovery after power failure longer than 60ms
5. Structure and Composition
5.1 Hardware Structure
- Front Panel: Equipped with LED display and physical operation keys
- Wiring Terminal: M20 threaded compression terminal (standard configuration)
- Relay Module: 5A relays (2 standard relays, 3 relays optional)
- Communication Module: RS485 module (optional accessory)
5.2 Software Configuration
- User Local Setting: Basic parameter setup via front panel operation keys
- PC Configurator: Supports factory parameter modification, linear curve editing and advanced setting
- Standard Configuration: STD (Default factory standard setting)
- Custom Configuration: CUS (Customized setting) or SPXX (Special characteristic setting)
6. Application Fields
- Industrial Process Monitoring: Measures and indicates temperature, pressure, flow rate, liquid level and other core process variables
- System Integration: Realizes system docking and data retransmission with SCADA, PLC and open industrial control systems
- Flow Metering: Cooperates with differential pressure equipment (e.g. WEDGEMASTER) to complete flow totalization calculation
- Industrial Vertical Application: Applied in industrial automation industries including chemical, petroleum, electric power and water treatment
- Harsh Environment Application: On-site monitoring scenarios requiring high-precision indication under poor environmental conditions
————————————————————————————————————-
