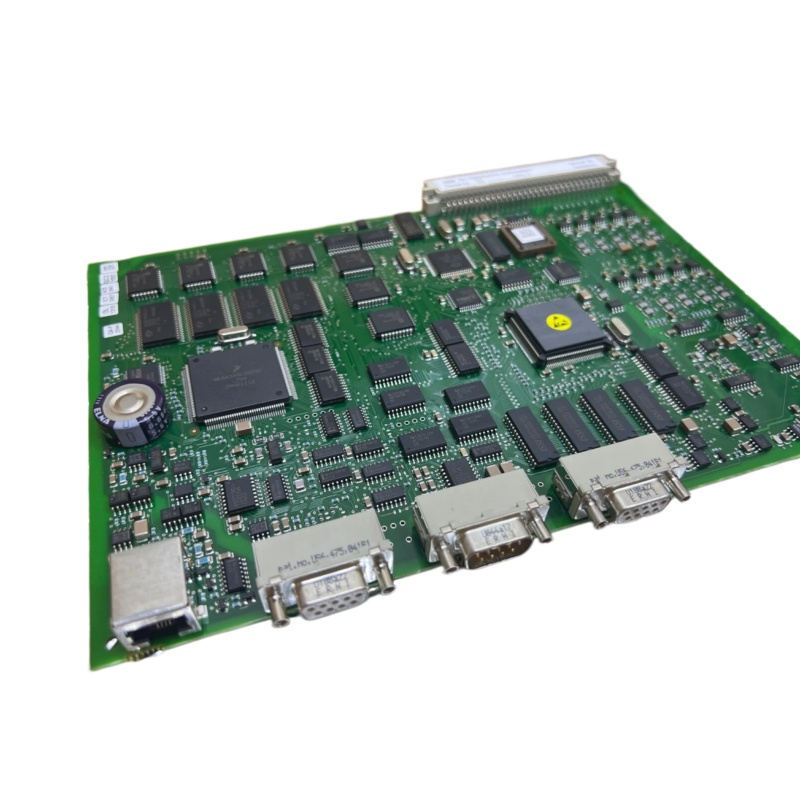

ABB 1MRS050396 Circuit Board Product
ABB 1MRS050396
1. Product Overview
The ABB 1MRS050396 is a dedicated circuit board for industrial automation control systems manufactured by ABB. Classified as a CPU control unit module, it primarily performs the Drive Control Unit (DCU) function for ABB AC800M series controllers. As a core component of industrial automation power systems, this module plays a pivotal role in control systems and is designed to significantly enhance overall system reliability and operational safety.
2. Product Specifications
Based on the general specifications of the AC800M series controllers, the key technical parameters of the CPU/DCU module are listed as follows:
|
Parameter Category
|
Specification Description
|
|---|---|
|
Product Series
|
AC800M Industrial Control System
|
|
Module Type
|
CPU/DCU Control Board
|
|
Control Unit Code
|
Compliant with ABB control unit coding system
|
|
Power Supply Voltage
|
+5V and +3.3V (isolated power supply via power board)
|
|
Operating Ambient Temperature
|
0°C – 60°C
|
|
Storage Temperature
|
-40°C – +85°C
|
|
Communication Interfaces
|
2 Ethernet ports, 2 RS232 ports
|
|
Memory Type
|
RAM + Compact Flash memory card interface
|
|
Real-Time Clock
|
Integrated with battery backup
|
Note: For accurate and detailed parameters, please refer to the official ABB technical manual or contact ABB technical support.
3. Product Features
3.1 High Performance and Reliability
Equipped with an industrial-grade core processor to ensure stable operation in harsh industrial environments. The modular structure facilitates convenient system maintenance and flexible function expansion.
3.2 Versatile Communication Capabilities
The onboard Ethernet interfaces support redundant configuration to improve system availability. The module is compatible with multiple industrial fieldbus communication protocols, meeting diverse on-site communication requirements.
3.3 Strong Compatibility
It can be seamlessly integrated into the ABB 800xA DCS system, supports integration with ABB drives and motors, and is compatible with the S800 I/O system for direct connection, realizing efficient system docking.
3.4 Redundancy Configuration Support
Supports controller redundant mode to guarantee high system availability. Status and control information can be exchanged between the primary and backup CPUs through redundant cables, ensuring uninterrupted system operation.
4. Structure and Composition
The control module consists of core main components and supporting auxiliary components, with the detailed composition as follows:
4.1 Main Module Components
CPU Board: The core control component, integrated with a microprocessor, RAM, real-time clock, LED status indicators, INIT initialization button, and Compact Flash memory card interface, undertaking the core data processing and control tasks of the system.
Power Board: Provides isolated +5V and +3.3V power supply for CPU and I/O circuits. It is equipped with opto-isolated RS-232C drive/receive ports and a battery compartment to back up memory and real-time clock data.
4.2 Supporting Components
Base Module: Adopts TP830 series base to provide reliable electrical connection and standardized mechanical installation support.
Communication Interface Module: Optional with various fieldbus communication interfaces to adapt to different industrial communication scenarios.
Expansion I/O Module: Supports direct on-site connection and fieldbus integrated expansion, realizing flexible function extension.
5. Application Fields
The ABB 1MRS050396 module and its matched AC800M system are widely applied in multiple industrial scenarios, covering:
- Power Industry: Automatic control of power plant operation
- Petrochemical Industry: Production process monitoring and optimization
- Metallurgical Industry: Equipment control and process management
- Water Treatment Industry: Pump station control and water quality monitoring
- Food Industry: Production line automatic control
- Chemical Industry: Process safety monitoring and control
- Heat Treatment Industry: High-precision temperature control
- Transportation Industry: Automatic track operation control
This product is applicable to various control scenarios ranging from small-scale Programmable Logic Control (PLC) to advanced Distributed Control System (DCS) applications.
6. Installation and Maintenance
6.1 Installation Requirements
6.1.1 Installation Environment
- Adopt standard industrial guide rail installation mode
- Ensure the ambient temperature and humidity meet the specified technical specifications
- Reserve sufficient heat dissipation space to avoid equipment overheating
6.1.2 Electrical Connection
- Connect +5V and +3.3V power supplies correctly
- Access Ethernet and RS232 communication interfaces as required
- Follow the official ABB wiring diagram for standardized connection
6.1.3 System Configuration
- Complete system configuration via Control Builder software
- Support configuration through Compact Control Builder or 800xA Control Builder
- Download dedicated control software to realize independent or integrated system control
6.2 Maintenance Guidelines
6.2.1 Daily Inspection
- Regularly check the LED status indicators to confirm normal module operation
- Monitor the real-time operating status of the control system
- Check the battery power regularly to ensure normal backup of real-time clock and memory data
6.2.2 Periodic Maintenance
- Clean dust on the module surface to ensure good heat dissipation
- Check and fasten connecting terminals to avoid poor contact
- Verify the integrity and stability of the system redundant function
————————————————————————————————————-
