1. Product Overview

2. Product Specifications

Communication Interface Configuration

• 1 × Communication module slot
• 2 × Ethernet RJ45 interfaces
• 1 × Serial COM interface
• 1 × CAN interface

3. Product Features

Core Advantages

• Modular Design: Equipped with one communication expansion slot, supporting flexible configuration of various communication modules including PROFIBUS, EtherCAT, PROFINET and more to meet diverse industrial communication requirements.
• High Scalability: Different from the TB5600-2ETH without a communication expansion slot, the TB5610-2ETH features an additional communication module slot, allowing flexible function expansion according to subsequent application demands.
• Multi-Communication Capability: Integrated with dual Ethernet interfaces, one COM interface and one CAN interface to support multiple industrial protocols, making it suitable for complex automated control systems.
• High Compatibility with AC500 Platform: Fully compatible with mainstream CPU modules such as PM5630-2ETH, PM5650-2ETH, PM5670-2ETH and PM5675-2ETH. It supports communication modules including CM579-PNIO, CM579-ETHCAT, CM589-PNIO and NetX series communication modules.
• Industrial-Grade Reliability: Compliant with international standards such as EN 60204-1, ensuring stable operation in harsh industrial environments.
• Optional XC Version: The extreme environment (-XC) variant is available for deployment under more severe and demanding working conditions.

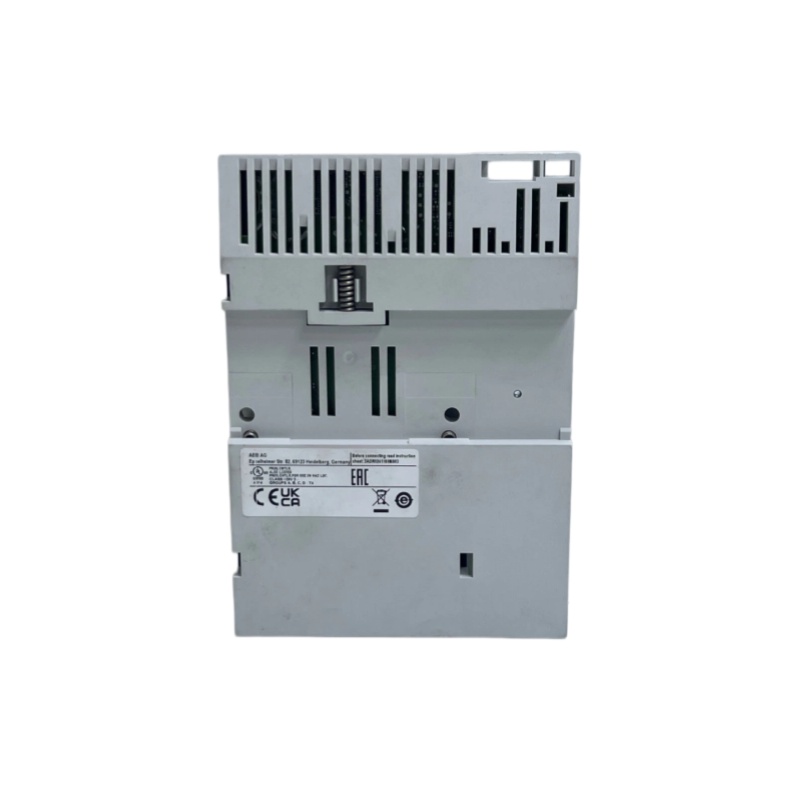

4. Structure and Composition

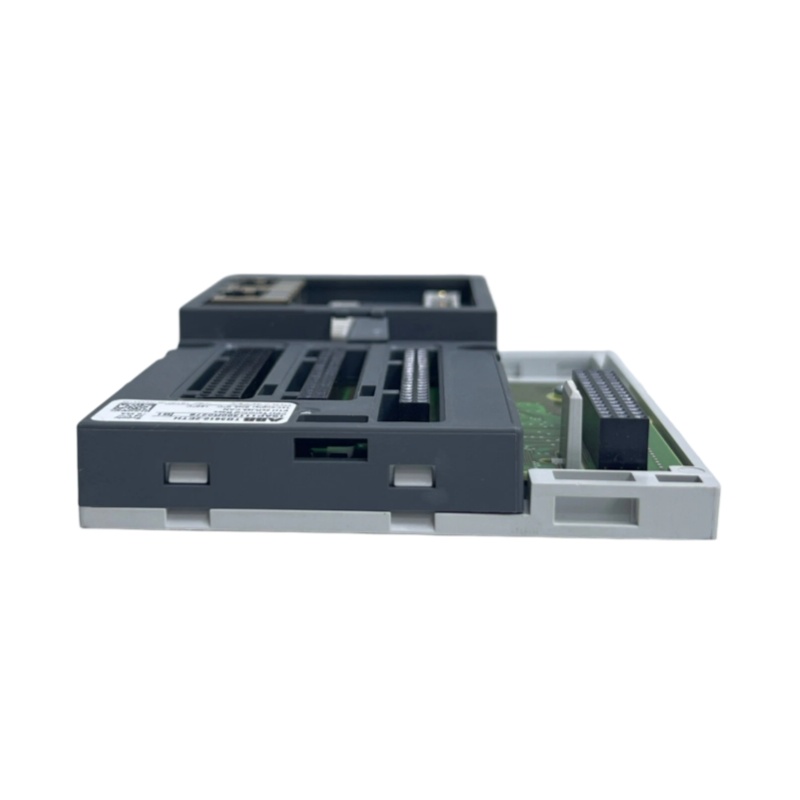

Basic Structure

• CPU Module Mounting Slot: 1 processor module slot for installing AC500 V3 series CPU units
• Communication Module Slot: 1 expansion slot for additional communication cards
• Power Input Terminal: 24VDC spring-loaded wiring terminal

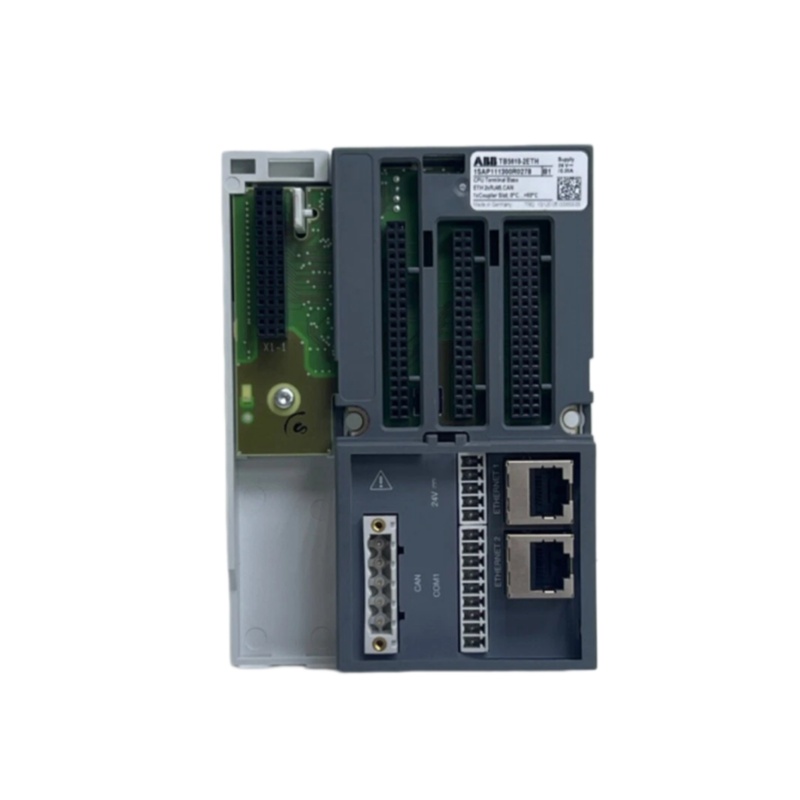

• Communication Interface Panel: 2 × RJ45 Ethernet ports, 1 × COM serial port, 1 × CAN connector
• I/O Interface: Supports direct connection of up to 10 I/O modules

Matching Components

• Optional Communication Modules: CM574-RS, CM574-RCOM, CM579-PNIO, CM579-ETHCAT, CM589-PNIO and other series modules
• Optional Terminal Board: TA5212-TSPF
• Mounting Method: Standard 35mm DIN rail mounting

System Kit Examples

• PM5630-2ETH + CM579-ETHCAT + TB5610-ETH + PS5611-MC (Kit No.: 1SAP131000R0379)
• PM5650-2ETH + CM579-ETHCAT + TB5610-ETH + PS5611-MC (Kit No.: 1SAP141000R0379)
• PM5670-2ETH + CM579-ETHCAT + TB5610-ETH + PS5611-MC (Kit No.: 1SAP151000R0379)

5. Application Fields

• Wind Turbine Control Systems: Centralized monitoring and data acquisition for wind farm equipment
• Solar Tracking Systems: Position control and data communication for photovoltaic tracking devices
• Marine Automation: Control of ship propulsion systems and cargo monitoring systems
• Tunnel Automation: PLC-based control of tunnel ventilation, lighting and monitoring systems
• Traffic Control Systems: Control of traffic signals, ETC systems and subway signal systems
• Packaging Machinery: Automatic control of packaging production lines
• Printing Machinery: Motion control and operational synchronization of printing equipment
• Robot Control: Unit control and data communication for industrial robot systems
• Water Treatment Systems: Pump station control and water quality real-time monitoring
• General Industrial Automation: Production line automation and process control for various factory scenarios

6. Installation and Maintenance

Installation Guidelines

Safety Precautions

• Improper installation and maintenance may cause personal injury and product damage
• All installation and maintenance operations must be performed by qualified professional technicians
• Installation must comply with relevant technical regulations, industry specifications and international standards such as EN 60204-1

Installation Steps

• Power-off Inspection: Ensure the entire system is completely powered off before any operation
• DIN Rail Mounting: Fix the terminal base on a standard 35mm DIN rail
• CPU Module Installation: Insert the PM56xx-2ETH series processor module into the dedicated CPU slot
• Communication Module Installation: Insert the communication expansion module into the specified communication slot
