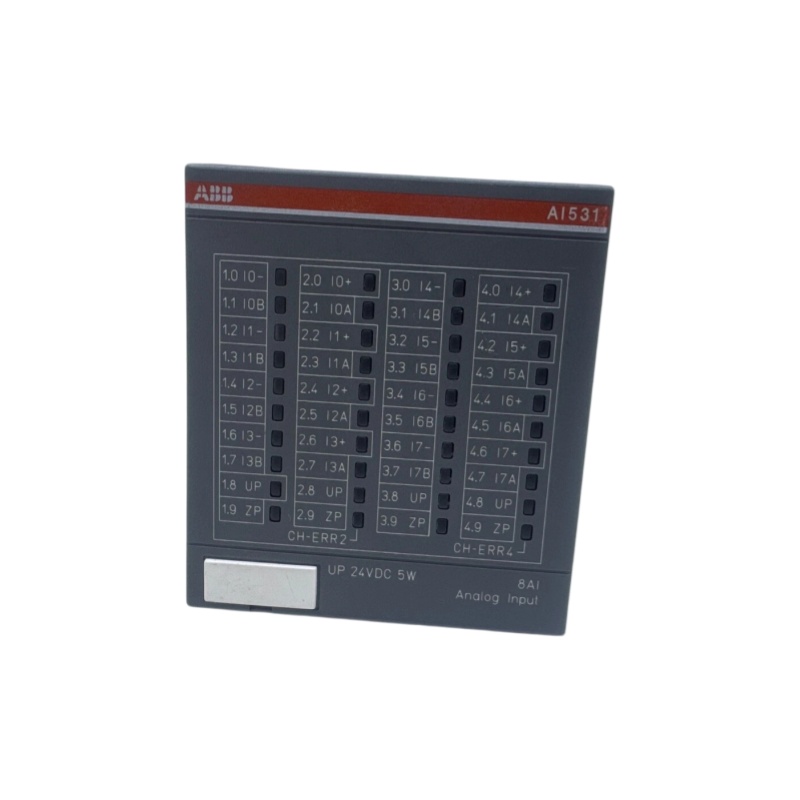

ABB 1SAP250600B0001 AI531

1. Product Overview

2. Technical Parameters

3. Product Features

• Multi-functionality: The AI531 module supports processing 8 types of signals including voltage, current, RTD, resistance, thermocouple and digital input in a single unit, meeting diverse industrial signal acquisition demands.
• High Precision Resolution: Equipped with 15-bit + sign bit high resolution, the module effectively eliminates data acquisition errors and ensures high-precision collection and transmission of industrial field data.
• Robust and Durable: Adopting industrial-grade design, the module features excellent shock resistance and vibration resistance, adapting to harsh and complex industrial operating environments.
• Easy Configuration: Compatible with ABB Control Builder IEC 61131-3 programming software, supporting flexible parameter setting and program configuration for different application scenarios.
• Intelligent Monitoring Function: Built-in signal authenticity verification, wire break and short circuit detection functions, which can timely identify equipment and circuit faults to ensure system operational safety.
• Compact Structure: Supporting standard DIN rail mounting, the module occupies minimal installation space and is convenient for cabinet layout and equipment integration.

4. Structure and Composition

4.1 Hardware Composition

• Module Main Body: Integrated with independent circuit design and professional signal processing units for 8 analog input channels, realizing accurate collection and processing of multiple industrial signals.
• Wiring Terminals: Matched with TU515 screw terminals or TU516 spring terminals, ensuring stable and reliable circuit connection and convenient wiring operation.
• Bottom Connection Interface: Connects with the AC500 CPU module through the S500 I/O bus to realize real-time data interaction and system linkage.
• Status Indicators: Equipped with LED status indicator lights to intuitively display the module’s operating status, working faults and running parameters.

4.2 System Connection Modes

• Centralized Expansion: Directly connected to the local I/O bus of the AC500 CPU module, realizing integrated control of local on-site signals.
• Distributed Expansion: Cooperates with FBP interface modules (such as DC505-FBP) to connect remote I/O devices via fieldbus, realizing long-distance signal acquisition and distributed system control.

5. Application Fields

• Industrial Automation Control: Widely used in process control, discrete manufacturing and other industrial scenarios to support automatic production line operation and parameter regulation.
• Process Monitoring System: Continuously collects and monitors changing physical parameters such as temperature, pressure and flow in industrial production processes.
• Power and Automation Industry: Applicable to various links of power generation, power transmission and industrial automation production, serving global industrial automation upgrading.
• Building Automation System: Used for real-time monitoring and intelligent control of building indoor environment, equipment operation status and auxiliary electrical systems.
• Environmental Monitoring: Matches with various environmental sensors to monitor environmental parameters such as temperature and humidity, realizing data-based environmental management.

6. Installation and Maintenance

6.1 Installation Instructions

6.1.1 Installation Methods

• DIN Rail Mounting: Fix the terminal base on the standard DIN rail, then press the module body until it is firmly locked in place to complete stable installation.
• Wall Mounting: Fix the terminal base on the wall or equipment panel with screws, and realize reliable grounding through the base grounding interface.

6.1.2 Connection Steps

1. Install the S500 I/O module firmly on the matched terminal base;
2. Connect on-site signal lines to the corresponding positions of the terminal row in accordance with the wiring specifications;
3. Complete standard grounding operation to avoid equipment interference caused by static electricity and electromagnetic signals;
4. Access the 24V DC power supply to power on the module.

6.1.3 Configuration Requirements

1. Complete hardware parameter configuration through the supporting ABB Control Builder software;
2. Set accurate module addresses and matching signal types according to on-site application requirements;
3. Debug the system to ensure normal signal acquisition and data transmission.

6.2 Maintenance Suggestions

• Regular Cleaning: Periodically remove dust and dirt on the module surface to keep the equipment clean and ensure good ventilation and heat dissipation performance.
• Routine Inspection: Regularly check the LED indicator status to judge the operating state of the module; inspect the terminal wiring for looseness, aging and corrosion; verify the real-time signal acquisition quality to ensure stable system operation.

6.3 Precautions

• Do not plug or unplug the module when the equipment is powered on to prevent circuit burnout and equipment failure;
• Ensure the equipment operating environment temperature is within the standard range of 0…+60°C to avoid affecting service life and accuracy;
• Strengthen environmental protection, avoid long-term operation of the module in humid, dusty and corrosive environments.
