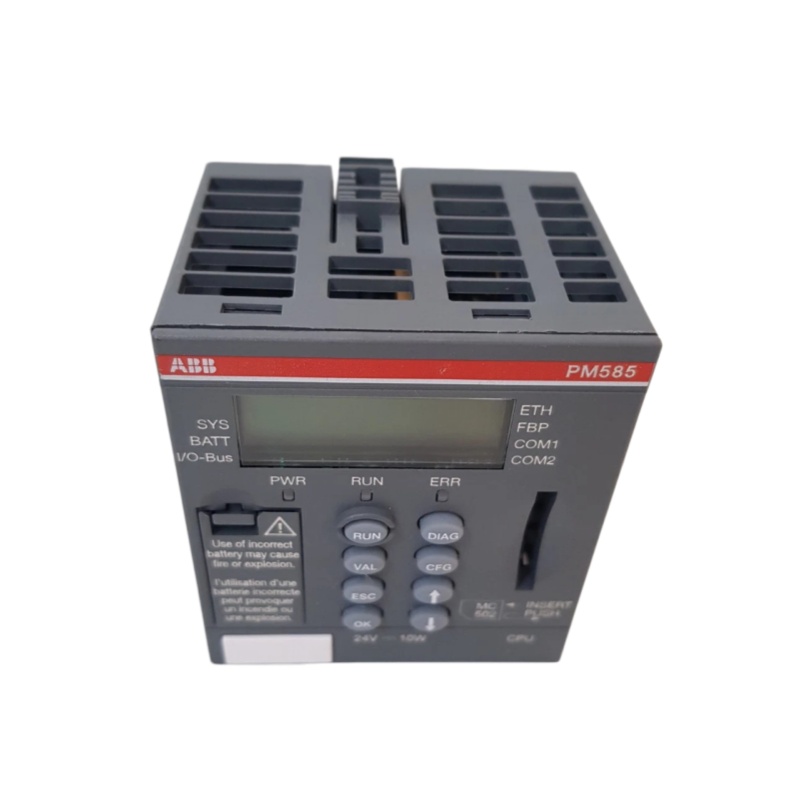

ABB PM585-ETH 1SAP140500R0271 CPU module

Short Description:

The ABB PM585-ETH (Model No.: 1SAP140500R0271) is a CPU module of the ABB AC503 series PLC system, belonging to the ABB AC500 DCS/PLC control system family.

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Brand: ABB

Manager: Jinny

E-mail: sales5@xrjdcs.com

Tel: + 86-15359273791

( WhatsApp )Wechat: + 86-15359273791

Warranty: one year

In stock: In stock

Send email to us Download as PDF

Product Detail

Product Tags

ABB PM585-ETH 1SAP140500R0271

1. Overview

The ABB PM585-ETH (Model No.: 1SAP140500R0271) is a CPU module of the ABB AC503 series PLC system, belonging to the ABB AC500 DCS/PLC control system family. As a programmable logic controller with a modular design, it supports Ethernet communication and multiple bus protocols, delivering flexible and reliable control performance for industrial automation systems.

2. Main Technical Parameters

Parameter Item	Specification
Program Memory	1MB
Power Supply Voltage	DC 24V
Scan Cycle	Single instruction scan cycle: 0.004/0.008/0.008 μs
Communication Interfaces	Ethernet, 2×RS232/RS485 serial interfaces, FBP bus, SD card slot
I/O Expansion Capability	Supports expansion of up to 10 I/O modules on the main unit
Communication Module Expansion	Supports simultaneous expansion of up to 4 external communication modules/protocols
Display Function	Equipped with display screen and function keys
Product Code	3ABD00038876

3. Product Features

Modular Design: Adopts a modular structure, supporting flexible expansion of I/O modules and communication modules to adapt to diverse industrial control requirements.
Multi-protocol Support: Enables parallel connection of multiple bus systems. With FBP bus technology, it supports automatic protocol switching and identification without manual user configuration.
Programming Compatibility: The supporting programming software AC500 Control Builder complies with the IEC61131-3 international standard and supports five mainstream programming languages.
Powerful Diagnosis Function: Integrated comprehensive diagnosis and alarm processing functions, which can quickly locate system faults and improve operation and maintenance efficiency.
Future Upgrade Compatibility: Reserved system upgrade space to meet current and future system iteration and expansion demands, effectively protecting users’ existing equipment investment.

4. Structure and Composition

The physical structure of the PM585-ETH controller consists of the following core components, achieving integrated control, communication and human-computer interaction functions:

CPU Processing Unit: The core processor module responsible for program operation, logic calculation and system control.
LCD Display: Used for real-time display of system operating status, parameter viewing and system debugging.
Function Keys: Matches the display screen to realize manual parameter setting, function switching and operation control.
Ethernet Interface: Supports standard TCP/IP network communication for remote monitoring and system interconnection.
2×COM Serial Ports: Configurable RS232/RS485 serial interfaces for connecting peripheral devices and serial communication equipment.
FBP Bus Interface: Professional field bus communication interface for on-site industrial equipment connection and data transmission.
SD Card Slot: Used for program storage, data backup and program offline upgrade.
I/O Expansion Interface: Dedicated interface for connecting extended I/O modules to expand system control points.

5. Application Fields

With its stable performance and strong scalability, the PM585-ETH controller is widely used in general industrial fields and professional industrial scenarios, covering multiple industries as follows:

5.1 General Fields

Water treatment (including SBR sewage treatment process)
Building automation control
Data center operation control
Renewable energy equipment control
Factory automated production
Industrial material handling
Marine industry equipment control

5.2 Special Industrial Applications

Building Materials Industry: Cement rotary kiln production line, slag grinding control, lime kiln control, new brick factory, ceramic production line, glass factory and various industrial kiln control systems
Chemical and Pharmaceutical Industry: Production process control and equipment monitoring
Textile Industry: Automated textile production and process control
Municipal Transportation: Urban traffic scheduling and municipal facility control
Urban Water Supply: Urban water supply and pipeline pressure control
Mine Hoisting: Mine hoisting equipment safety control
Environmental Protection Monitoring: Industrial environmental data collection and emission monitoring

6. Installation and Maintenance

The PM585-ETH controller features simple installation and convenient maintenance. The core installation and maintenance specifications are as follows:

Assembly: Standardized controller assembly procedures and professional operation precautions to ensure standardized installation and stable equipment operation.
Disassembly: Complete disassembly methods and standardized operation processes to avoid equipment damage during disassembly.
Dimensions: Standard external dimension specifications, convenient for cabinet installation and layout design.
Connection: Detailed wiring specifications and port connection guidelines for accurate circuit and signal connection.
Process Supply Voltage: Clear power supply configuration requirements to ensure compliant power access and prevent voltage abnormality failures.
Inputs/Outputs: Comprehensive I/O interface parameter descriptions and usage specifications to support accurate signal input and output control.
