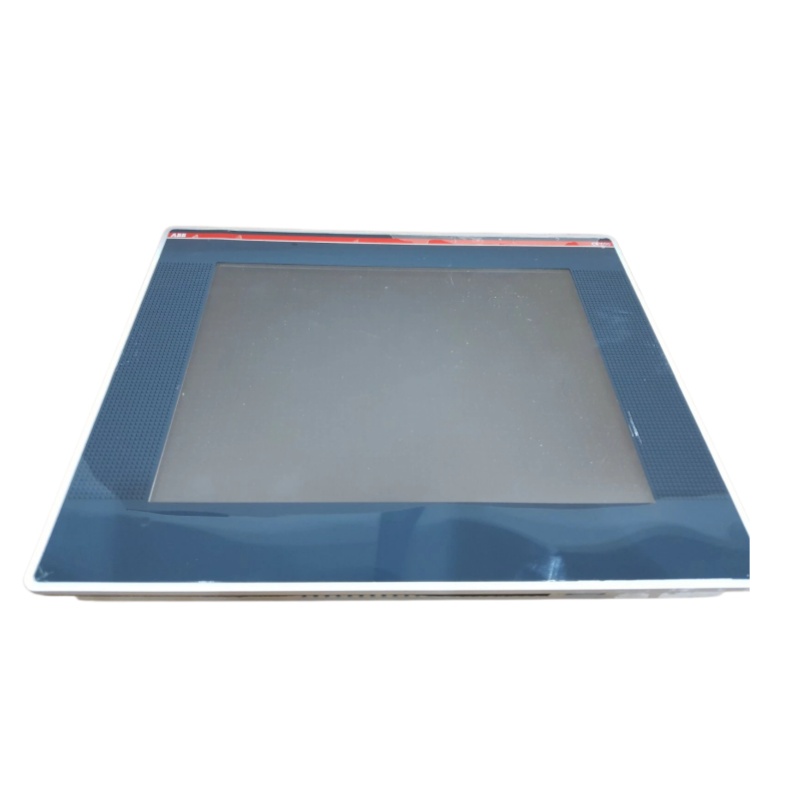

ABB 1SAP550200R0001 CP650-WEB Controller
ABB 1SAP550200R0001 CP650-WEB
1. Overview
The CP650-WEB is a model of the ABB CP600 series controllers, an operator interface product specifically designed for industrial environments. As a Human-Machine Interface (HMI) device, it is equipped with a 10.4-inch TFT color touch screen and supports multiple communication protocols, making it suitable for demanding HMI application scenarios. Complying with the 2004/108/CE directive, the product can be programmed via the PB610 Panel Builder 600 software.
2. Technical Specifications
|
Item
|
Specification
|
|---|---|
|
Display Screen
|
10.4-inch diagonal TFT color display, 800×600 pixel resolution, 64K colors, LED backlight
|
|
Touch Screen Technology
|
Resistive type, with a reliability of more than 1 million operations
|
|
Power Input
|
18-30 V DC, rated current 0.75A (at 24V DC)
|
|
Battery
|
3V 50mAh rechargeable primary lithium battery (Panasonic VL2330) for hardware real-time clock retention
|
|
Storage Capacity
|
128 MB user flash memory, 32 kB FRAM recipe memory
|
|
Operating Temperature
|
0°C to +50°C
|
|
Storage Temperature
|
-20°C to +70°C
|
|
Humidity Range
|
5% to 85% RH (non-condensing)
|
|
Ingress Protection Rating
|
IP66 for front panel (with gasket installed correctly)
|
|
Physical Weight
|
2 kg
|
|
Installation Dimensions
|
276 mm (width) × 221 mm (height) × 42 mm (depth)
|
Communication Interfaces
|
Interface Type
|
Specification Description
|
|---|---|
|
PLC Port (COM1)
|
Configurable RS-232/485/422
|
|
PC/Printer Port (COM2)
|
Configurable RS-232/485/422, baud rate: 300 to 38400
|
|
Ethernet Port
|
10/100 Mbit/s
|
|
USB Port
|
Host Interface Version 2.0
|
|
AUX Port
|
DB-9 female connector; functions depend on optional communication modules
|
3. Product Features
- Graphic Display Capability: Natively supports full SVG vector graphics, transparency and alpha blending effects
- Dynamic Object Control: Supports control of on-screen objects including visibility, transparency, movement, resizing and rotation
- Multi-language Support: Enables multi-language application development, covering Far Eastern languages
- Comprehensive HMI Functions: Equipped with complete functions including data acquisition, alarm processing, daily/weekly schedule management, recipe management, user & password management and RSS feed access
- Script Automation: Integrated with a powerful scripting language to realize automated HMI application operation
- Status Indication: An LED indicator is located at the upper left of the front panel (green for normal operation, red for hardware faults, flashing for communication errors or low battery power)
- Compliance & Certification: Complies with RoHS Directive (2002/95/EC) and CE certification; meets electromagnetic compatibility standards such as EN 61000-6-4
- Modular Design: Adopts a modular structure for convenient expansion and maintenance
4. Structure and Composition
|
Component
|
Description
|
|---|---|
|
Front Panel
|
Consists of TFT touch screen, frame and cleaning protective film
|
|
Internal Components
|
Includes main board, flash memory, RTC clock battery and backlight lamp
|
|
Rear Interface Area
|
Equipped with power terminal block (XCFR2, Weidmüller), COM1, COM2, Ethernet, USB and AUX slot
|
|
Supporting Accessories
|
Fixing brackets, rectangular gasket (for IP66 protection guarantee) and cleaning protective film
|
5. Application Fields
- Factory Automation
- Building Automation
- HMI applications in factory environments
- Special Note: Installation in residential, commercial or light industrial environments is permitted only with special protective measures to comply with the EN 61000-6-3 standard
6. Installation and Maintenance
6.1 Installation Requirements
- Notch Processing: The notch edge must be smooth and the dimensions shall conform to the requirements specified in the official manual
- Sealed Installation: The rectangular gasket must be installed in accordance with regulations to maintain the IP66 ingress protection rating
- Grounding Connection: The device must be grounded via the screw near the power terminal or quick terminal to reduce electromagnetic interference
- Environmental Requirements: Avoid direct contact with corrosive chemicals and long-term direct sunlight exposure
6.2 Daily Maintenance
|
Maintenance Item
|
Precautions
|
|---|---|
|
Panel Cleaning
|
Only clean with soft cloth and neutral soap; solvents are strictly prohibited
|
|
Gasket Inspection
|
Replace the gasket regularly after long-term use or device disassembly to retain the original ingress protection level
|
|
Battery Disposal
|
The battery shall not be disposed of as unsorted waste and must be handled in accordance with local regulations
|
|
Programming Method
|
Connect the device to a PC installed with PB610 Panel Builder 600 software via Ethernet for programming, with the device in configuration mode
|
————————————————————————————————————-
