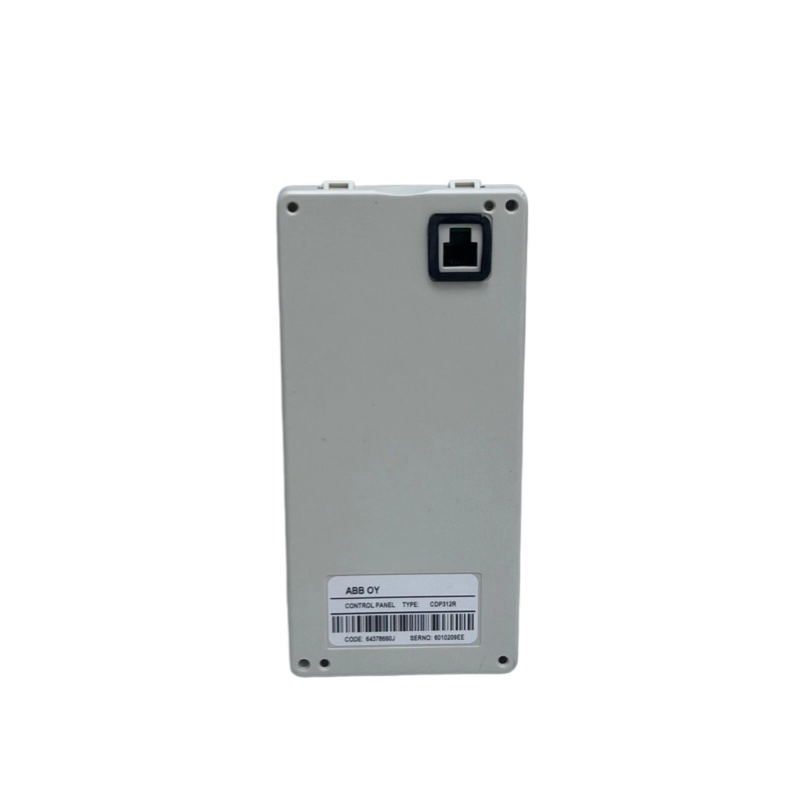

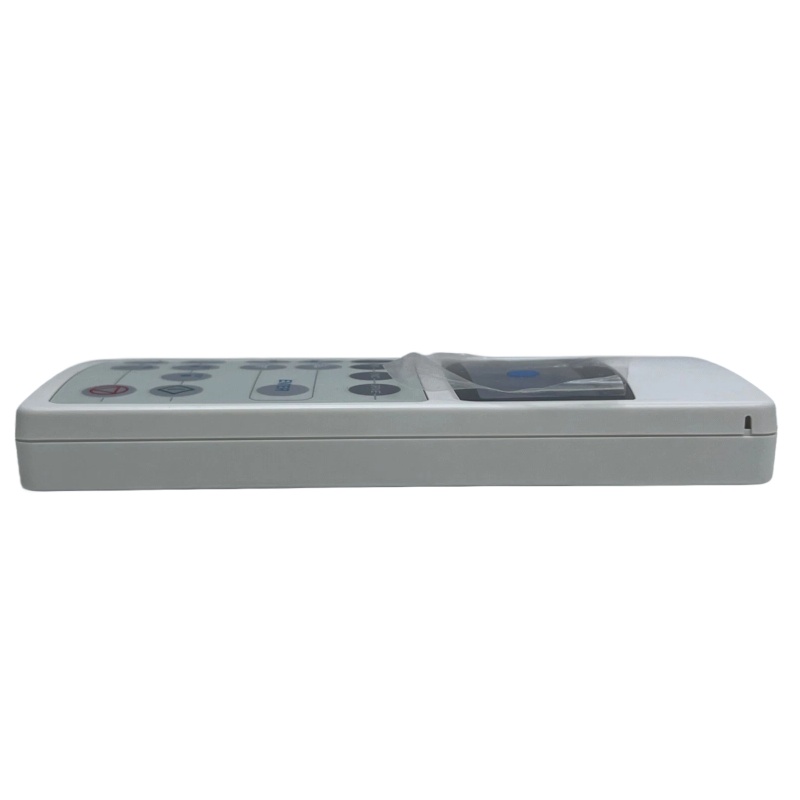

ABB 3ADT220071R0050 Control Panel
ABB 3ADT220071R0050
1. Product Overview
2. Technical Parameters
|
Parameter Item
|
Specification
|
|---|---|
|
Model
|
CDP312R-Rev.J (3ADT220071R0050)
|
|
Display Screen
|
4-line LCD display, 20 characters per line
|
|
Key Type
|
Mechanical type or membrane type
|
|
Ingress Protection Rating
|
IP65 or IP21 (UL type 1)
|
|
Operating Temperature
|
-10℃ to 50℃
|
|
Communication Interface
|
Modbus Protocol (RTU/TCP/IP)
|
|
Input Voltage
|
AC 100V-400V
|
|
Output Voltage
|
24V DC
|
|
Dimensions
|
Approx. 100mm x 80mm x 45mm
|
|
Weight
|
Approx. 0.5kg
|
3. Product Features
- Actual Signal Display Mode (ACT key)
- Parameter Setting Mode (PAR key)
- Function Operation Mode (FUNC key)
- Drive Selection Mode (DRIVE key)
4. Structure and Composition

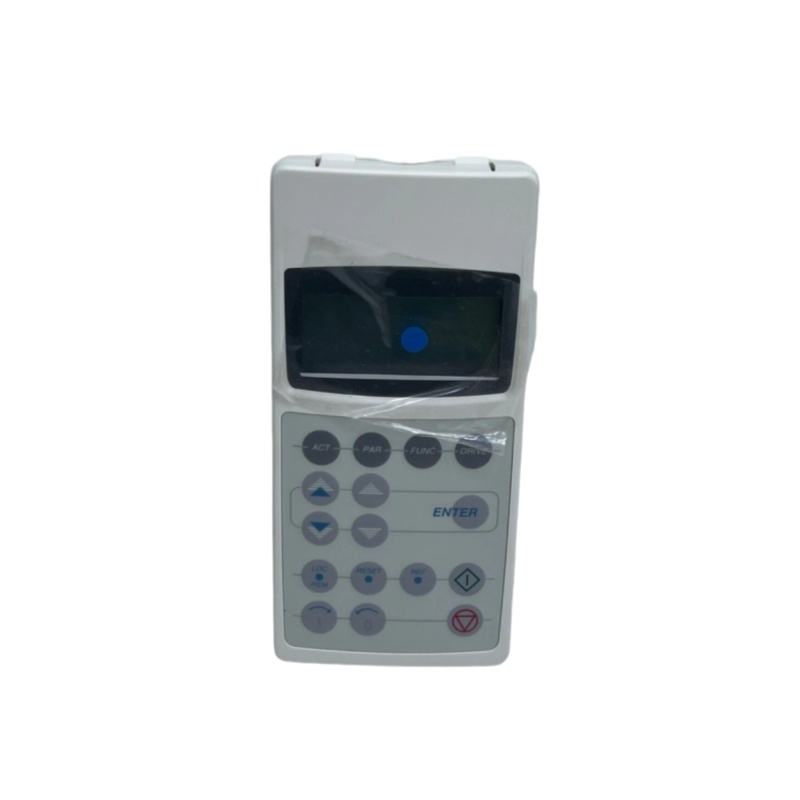

- Control Panel Main Body: The front panel is equipped with an LCD display screen and multi-function control keys for daily parameter viewing and operation control.
- Heat Sink: Installed at the bottom of the panel, it efficiently dissipates heat generated during equipment operation to prevent overheating failure.
- Front Cover Plate: Effectively isolates external dust, debris and moisture, protecting internal electronic components from environmental damage.
- Connection Terminals: Arranged at the bottom of the device, used for stable connection of power supply and signal transmission circuits.
5. Application Fields
|
Application Field
|
Specific Applications
|
|---|---|
|
Industrial Control
|
Factory automated production line control
|
|
Machine Control
|
CNC machine tools, industrial robots
|
|
Pump & Fan Control
|
Variable frequency control of water pumps and ventilation fans
|
|
Conveying Machinery
|
Belt conveyors, material elevators
|
|
Textile Machinery
|
Spinning machines, weaving machines
|
|
Packaging Machinery
|
Packaging machines, filling machines
|
|
Power System Protection
|
Relay protection, power system monitoring
|
6. Installation and Maintenance
6.1 Installation Steps
- Turn on the auxiliary power supply to activate the control board and CDP312R control panel to a working state.
- Confirm that the control panel is correctly connected to the main control unit (A43).
- Verify the device connection by checking the node number displayed on the screen.
- Release the emergency stop button (if the device is equipped with one).
- Configure the grounding parameters according to actual application requirements (if necessary).
- Reset all fault codes on the control board to eliminate abnormal states.
- Confirm that the inverter is in local control mode (the screen displays the letter “L”).
6.2 Maintenance Recommendations
|
Maintenance Item
|
Frequency
|
Instructions
|
|---|---|---|
|
Internal Cleaning
|
Regular
|
Remove internal dust, debris and foreign matter to ensure smooth heat dissipation and stable circuit operation.
|
|
Air Filter Replacement
|
Regular
|
Replace the filter element timely according to the on-site environmental dust concentration and usage conditions.
|
|
Cooling Fan Inspection
|
Regular Inspection
|
Check the fan operating status regularly to ensure normal rotation and no abnormal noise or stalling.
|
|
Electrolytic Capacitor Inspection
|
Regular Inspection
|
High ambient temperature will accelerate capacitor aging and shorten service life; regular inspection and replacement are required.
|
|
Troubleshooting
|
Immediate
|
Timely check and resolve indicator light alarms and system warning information to eliminate potential faults.
|
