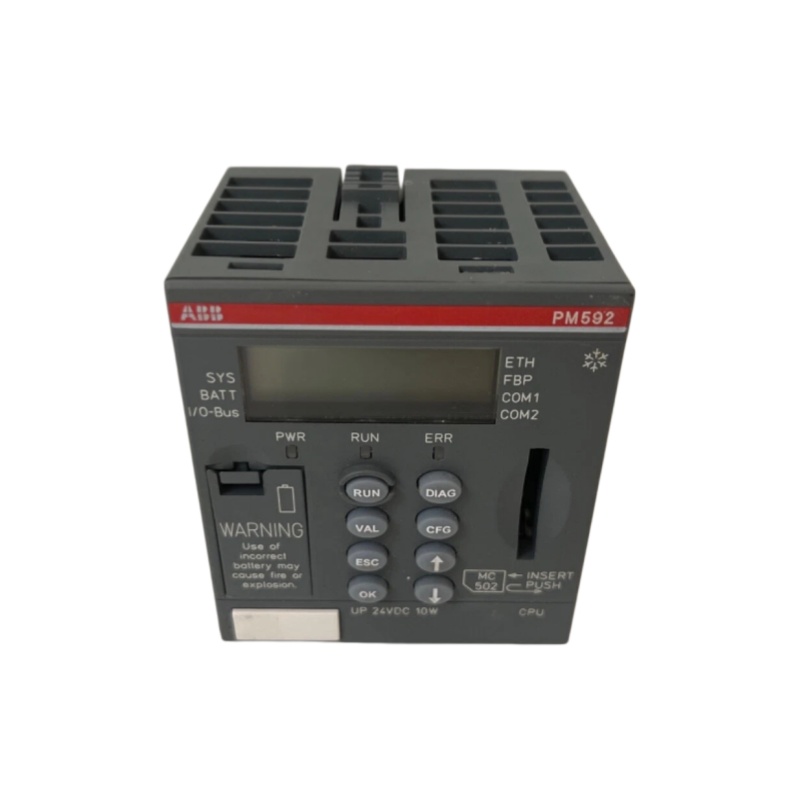

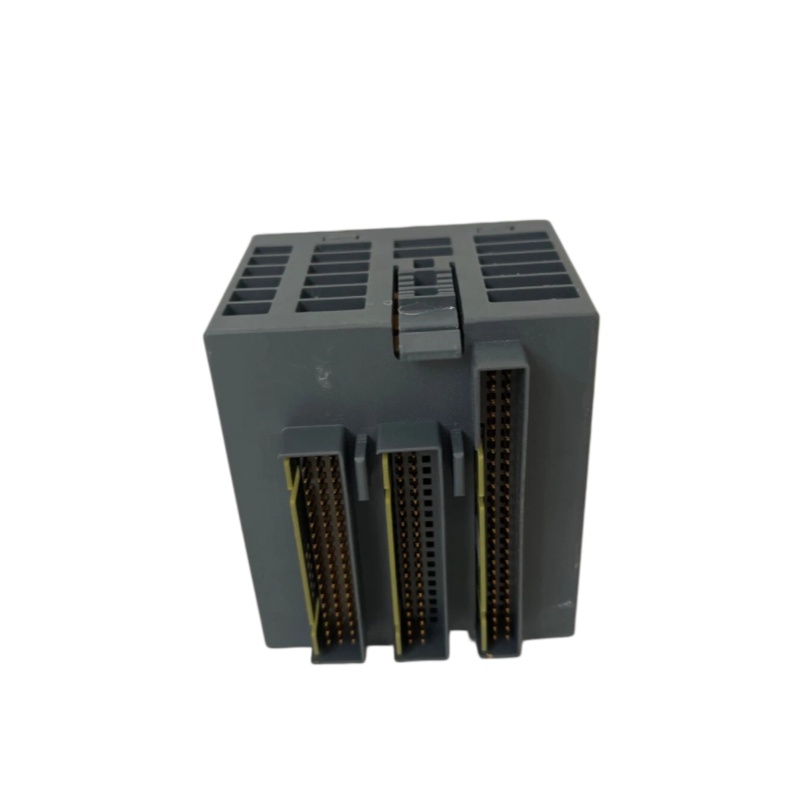

ABB PM592-ETH-XC 1SAP350200R0271 CPU Module

Short Description:

The ABB PM592-ETH-XC is a high-performance PLC CPU module of the AC500-XC series, specially designed for industrial automation applications in extreme environments.

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Brand: ABB

Manager: Jinny

E-mail: sales5@xrjdcs.com

Tel: + 86-15359273791

( WhatsApp )Wechat: + 86-15359273791

Warranty: one year

In stock: In stock

Send email to us Download as PDF

Product Detail

Product Tags

ABB PM592-ETH-XC 1SAP350200R0271

1. Product Overview

The ABB PM592-ETH-XC is a high-performance PLC CPU module of the AC500-XC series, specially designed for industrial automation applications in extreme environments. Upgraded from the PM590-ETH series, this module integrates 4 MB user program memory and 4 GB flash memory, delivering powerful data processing capability and high real-time performance. It is suitable for large-scale and high-reliability industrial control systems.

As the core controller of the AC500-XC series, the PM592-ETH-XC maintains stable performance under extreme operating temperature conditions. It is widely applied in multiple scenarios including wind power, photovoltaic power generation, water treatment, construction machinery, mining, and electric power industries.

2. Main Technical Parameters

Parameter Item	Technical Specifications
Product Model	PM592-ETH-XC
Order Code	1SAP350200R0271
Series	AC500-XC S500
User Program Memory	4096 kB (4 MB)
Data Memory	5632 kB
Flash Memory Capacity	4 GB
Operating Voltage	24 V DC
Power Consumption	< 80W
Operating Temperature	0°C – +60°C (Storage Temperature: -40°C – +70°C)
Ingress Protection Rating	IP20
Weight	Approx. 0.5 kg
Dimensions	120 × 120 × 100 mm
Certifications	CE, RoHS

Communication Interfaces

2 × RS232/RS485 serial interfaces (programmable, Modbus/RTU compatible)
1 × Ethernet interface (TCP/IP protocol, supporting Web server, SNTP, IEC 60870-5-104 protocol)
4 × Ethernet ports (recorded in partial technical documents)

3. Product Features

3.1 High-Performance Processing Capability

Adopting advanced microprocessor technology, the module supports high-speed data processing and precise control. Its real-time task cycle ranges from 20μs to 1s, fully meeting high real-time operation requirements of industrial control systems.

3.2 Large-Capacity Storage

Equipped with 4096 kB dedicated user program storage space and 4 GB flash memory, which is used for long-term data logging and data backup, effectively ensuring industrial data security and integrity.

3.3 Versatile Communication Functions

Built-in Web server realizes remote equipment monitoring and online maintenance. It supports the IEC 60870-5-104 remote control protocol and is compatible with multiple fieldbus expansion protocols, including PROFIBUS-DP, PROFINET, EtherCAT and more, delivering flexible communication compatibility for diverse industrial scenarios.

3.4 High Scalability

The centralized expansion mode supports up to 10 S500 series I/O modules. It can process a maximum of 320 digital I/O points or 160 analog I/O points. In addition, it allows simultaneous operation of 4 external communication modules with arbitrary combination configurations.

3.5 User-Friendly Design

Configured with an LCD display and 8 functional keys for convenient system status diagnosis and real-time information display. It supports SD card storage for easy program backup and data logging. The module can be configured as a CANopen slave station when matched with the CM588-CN-XC coupler.

3.6 Extreme Environment Adaptability

Developed specifically for harsh working conditions, the XC series products comply with strict industrial environment standards. The module meets IEC anti-interference specifications, featuring strong operational stability and reliability in extreme industrial environments.

4. Structure and Composition

4.1 Hardware Structure

Main CPU Module: Integrated with main processor, memory units and multiple communication interfaces to realize core control and data processing functions.

LCD Display Screen: Used for real-time display of system operating status, fault diagnosis information and parameter data.

Functional Keys: 8 programmable functional keys for manual operation, parameter setting and function switching.

Communication Terminals:

COM1: 9-pin pluggable wiring terminal
COM2: 9-pin SUB-D socket interface

Ethernet Ports: Built-in network interfaces with complete TCP/IP protocol stack for high-speed network communication and data transmission.

Memory Slot: Supports SD card expansion for extended program storage and data recording functions.

4.2 System Composition

CPU Base Plate: Serves as the carrier for installing CPU modules and extended communication modules to ensure stable hardware connection.

I/O Expansion Modules: Compatible with various digital and analog I/O modules to expand system signal acquisition and control output capabilities.

Communication Modules: Supports multiple mainstream industrial communication protocols such as PROFIBUS, PROFINET, EtherCAT and CANopen to adapt to different industrial network architectures.

Power Supply Module: Provides stable 24 V DC power supply for the whole control system.

————————————————————————————————————-
