ABB 560PSU01 1KGT006600R0001

1. Product Overview

2. Technical Specifications

3. Product Features

• Customized for RTU560 Platform: Optimized exclusively for the RTU560 Remote Terminal Unit series to achieve perfect matching and stable compatibility.
• Hot-Swap Support: Enables online module replacement without system shutdown, effectively improving maintenance efficiency.
• Redundant Power Supply Option: Supports redundant operation configuration, allowing two power supply units to work in parallel for enhanced system stability.
• Industrial-Grade Reliability: Adopts industrial-grade design standards to adapt to complex and harsh industrial operating environments.
• High Availability Design: Ideal for automation and utility industry applications that require ultra-high system availability.
• Compact Structure: Features small size and light weight, which simplifies on-site installation, layout and daily maintenance work.
• Built-In Voltage Buffering: Equipped with an interrupt buffer with a buffering time of ≤50ms, which can effectively tolerate transient input voltage drops and avoid system power failure.

4. Structure and Composition

4.1 Core Power Supply Function

4.2 Applicable Sub-Racks

• 560MPR03 Sub-rack
• 560SFR02 Sub-rack

4.3 Redundant Configuration

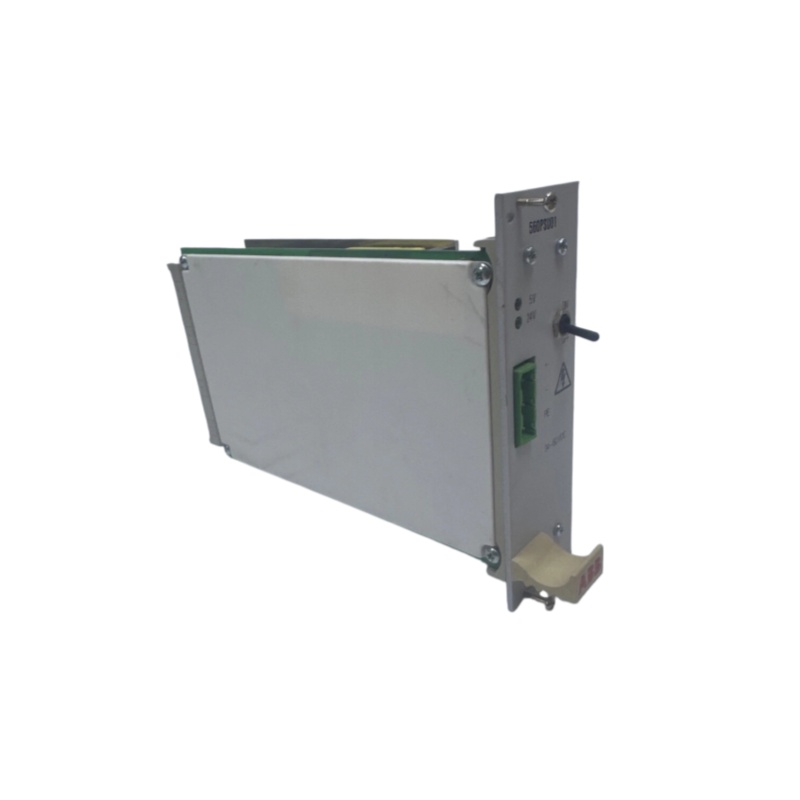

4.4 Physical Structure

• Adopts metal chassis design, featuring compact size, sturdiness and durability, with strong anti-interference and anti-vibration capabilities.
• Equipped with standard industrial interfaces and unified connection modes for universal applicability.

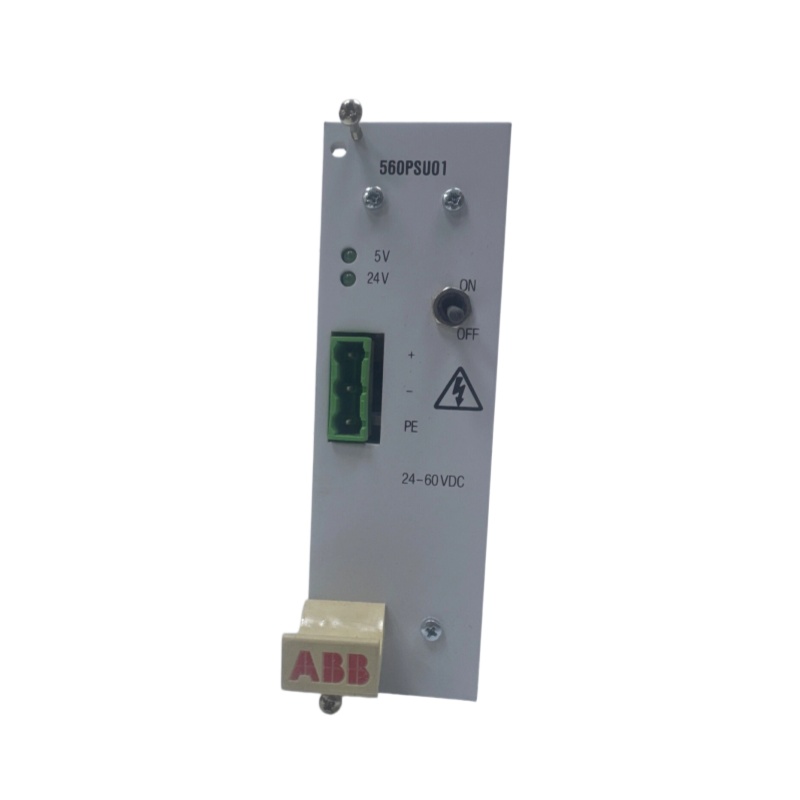

• The front panel is integrated with status indicator lights and terminal areas for convenient status observation and wiring operation.

5. Application Fields

• Substation Automation System: Provides continuous and stable power guarantee for substation equipment to ensure reliable system operation.
• Power Dispatching Automation: Applied to power grid real-time monitoring and power system automatic control scenarios.
• Oil and Gas Pipeline Monitoring: Suitable for remote terminal monitoring of distributed oil and gas pipeline networks.
• Water Conservancy Telemetry: Used for real-time monitoring, data collection and automatic control of water resources.
• Renewable Energy Power Stations: Supplies stable power for controllers of wind farms and solar power stations to ensure stable operation of new energy power generation systems.
• Smart Grid: Adaptable to all power grid scenarios requiring RTU supporting equipment.
• Industrial Automation: Widely used in industrial process control, factory automated production and other scenarios.

6. Installation and Maintenance

6.1 Installation Guidelines

• Installation Mode: Supports rack mounting and DIN rail mounting, flexible for different cabinet layout requirements.
• Protection Grade: IP20, suitable for indoor installation inside standard control cabinets.
• Interface Configuration
• Redundant Installation: For redundant configuration, two power supply units need to be connected in parallel as required.

6.2 Maintenance Guidelines

• Heat Dissipation Requirements: Relies on natural convection cooling with no fan components, zero daily fan maintenance required.
• Operating Environment: Ensure the ambient operating temperature is maintained within the range of -25°C to +70°C to guarantee optimal performance.
• Regular Inspection: Periodically check the power status indicator lights and wiring terminals to ensure firm connection and normal equipment status.
• Hot-Swap Maintenance: Supports online hot-swap module replacement, which does not affect the normal operation of the overall system and greatly simplifies maintenance work.
