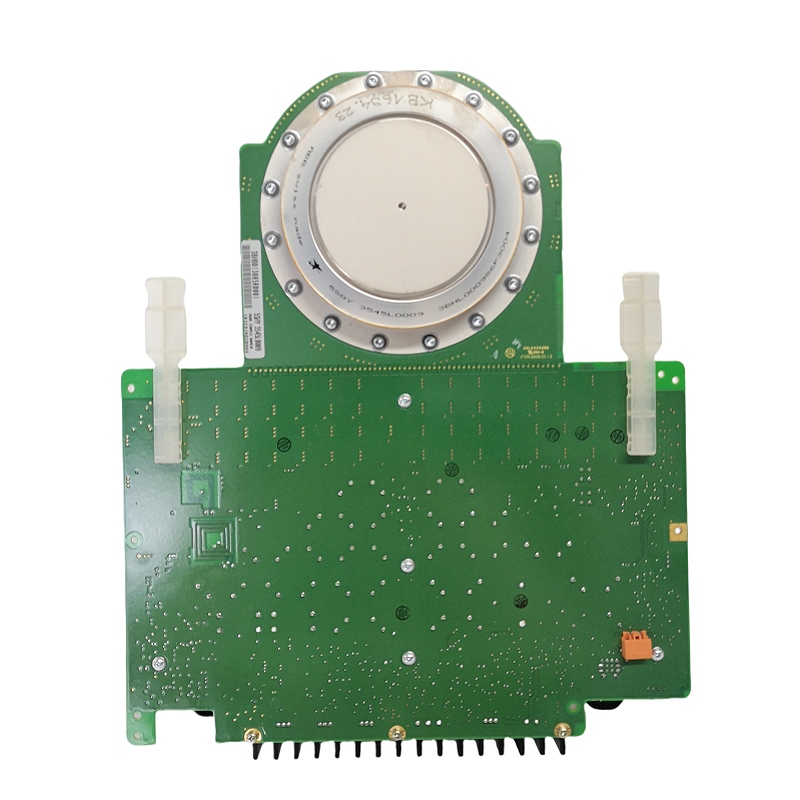

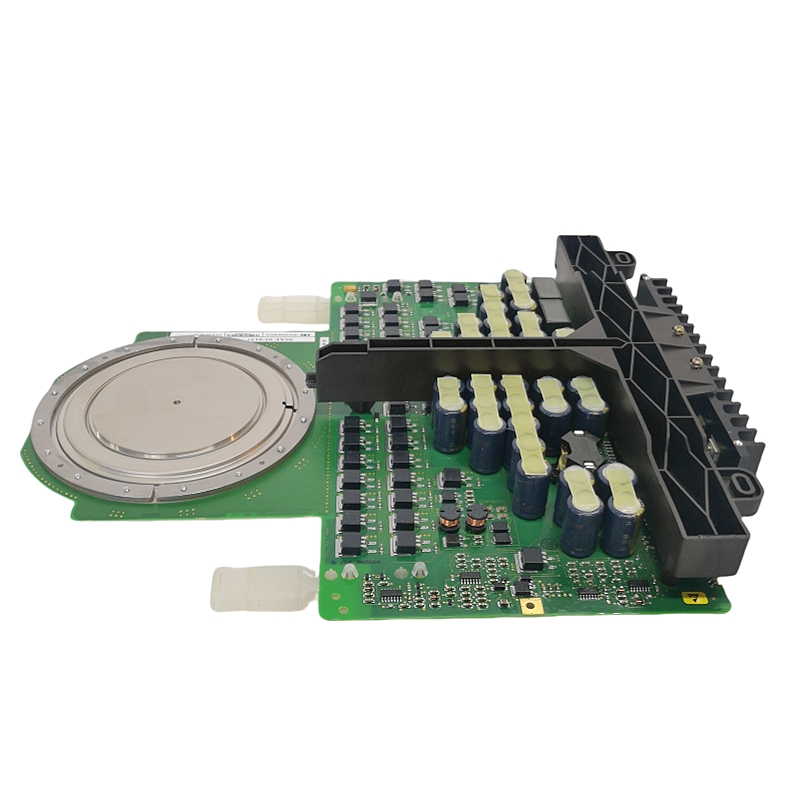

ABB 5SHY3545L0009 3BHB013085R0001 Control Unit
ABB 5SHY3545L0009 3BHB013085R0001
1. Overview
This product is a modular power electronics/control unit provided by ABB for high-voltage/high-current industrial applications. It adopts IGCT (Integrated Gate-Commutated Thyristor) or thyristor technology to achieve high-speed switching, low conduction loss and high reliability, compatible with various automation systems. As a standardized rack/panel-mounted component, it can be used in combination with other ABB series (such as 3BHE009681R0101, GVC750BE101).
2. Main Specifications (Typical Values)
| Specification | Typical Value | Notes |
|---|---|---|
| Rated Voltage | 4.5 kV ~ 45 kV (depending on specific model) | 4.5 kV version for medium-voltage switchgear; 45 kV version for high-voltage systems |
| Rated Current | 3,500 A ~ 4,500 A | Up to 6,750 A maximum |
| Rated Power | 750 W (drive module) or corresponding IGCT power level | Depending on specific sub-model |
| Input Voltage | 24 V DC ± 20% (control signal) or AC 100-240 V (driver) | - |
| Cooling Method | Natural cooling / Water cooling (high-power version) | - |
| Protection Class | IP20 (standard) | Some high-voltage versions can reach IP21-IP23 |
| Dimensions | Approximately 700 mm × 450 mm × 450 mm (45 kV version) | - |
| Weight | Approximately 160 kg (45 kV version) | - |
3. Product Features
- High Reliability: Complies with IEC 60044-2 standard, featuring compact structure and long service life.
- Fast Switching: Semiconductor technology enables millisecond-level switching, suitable for motor drive, traction, inversion and other scenarios.
- Low Conduction Loss: IGCT/thyristor structure reduces power consumption and improves system efficiency.
- Easy Installation & Maintenance: Modular design, standardized wiring and visual indicators facilitate on-site replacement.
- Multi-Protocol Compatibility: Supports industrial communications such as Profibus, Profinet, Modbus TCP and EtherNet/IP.
- Protection & Environmental Adaptability: IP20 protection, operating temperature from -20 ℃ to +60 ℃, suitable for harsh industrial environments.
4. Structure and Composition
- IGCT/Thyristor Converter Unit – Core power semiconductor module.
- Heat Dissipation System – Natural air cooling or water cooling radiator.
- Enclosure – Metal case providing mechanical protection and grounding.
- Terminal Block/Wiring Box – High-current terminals and signal terminals.
- Control/Communication Interface – Relay output, digital/analog input and fieldbus ports.
- Indicators/Status Display – Local fault indication.
5. Typical Application Fields
- High/Medium Voltage Switchgear (power distribution, power transmission)
- Motor Drive Systems (frequency converters, servo drives)
- Traction & Railway Electrical (electric traction, urban rail transit)
- Solar Inversion & New Energy (photovoltaic inverters)
- Welding Power Supplies (industrial welding)
- Robots & Automated Production Lines (robot control units)
6. Installation and Maintenance Guidelines
| Step | Key Points |
|---|---|
| On-site Inspection | Confirm that cabinet dimensions, grounding and ventilation meet technical specifications. |
| Mechanical Installation | Fix the module with standard bolts, keep it horizontal and avoid vibration. |
| Electrical Wiring | Select copper wires of appropriate cross-section according to rated current, follow ABB wiring diagrams; distinguish between high-voltage, low-voltage and signal terminals. |
| Cooling System | For water-cooled versions, check cooling pipelines, flow rate and leakage; ensure ventilation openings are unobstructed for natural cooling versions. |
| Communication Configuration | Set parameters such as address and baud rate according to on-site bus (Profibus/Profinet/Modbus). |
| Functional Testing | Conduct insulation resistance and ground continuity checks before power-on; verify switching, fault indication and communication response after power-on. |
| Regular Maintenance | Inspect fasteners, clean dust and measure radiator temperature every 6-12 months; perform thermal cycle testing on thyristor/IGCT modules. |
| Fault Diagnosis | Locate faults based on indicators and communication alarm codes; replace the entire unit or individual power semiconductor modules if necessary. |
————————————————————————————————————-
