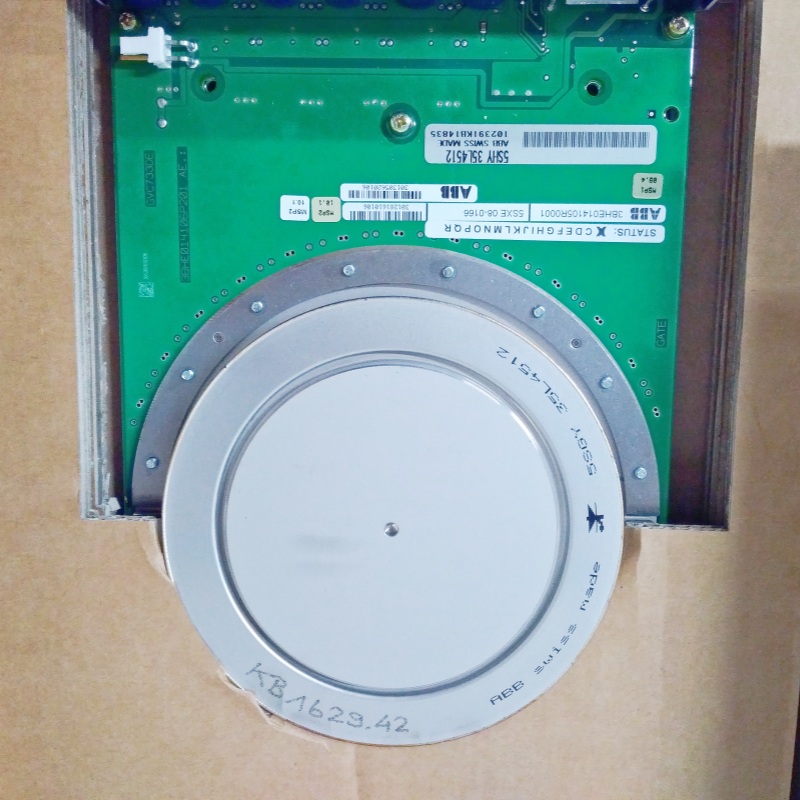

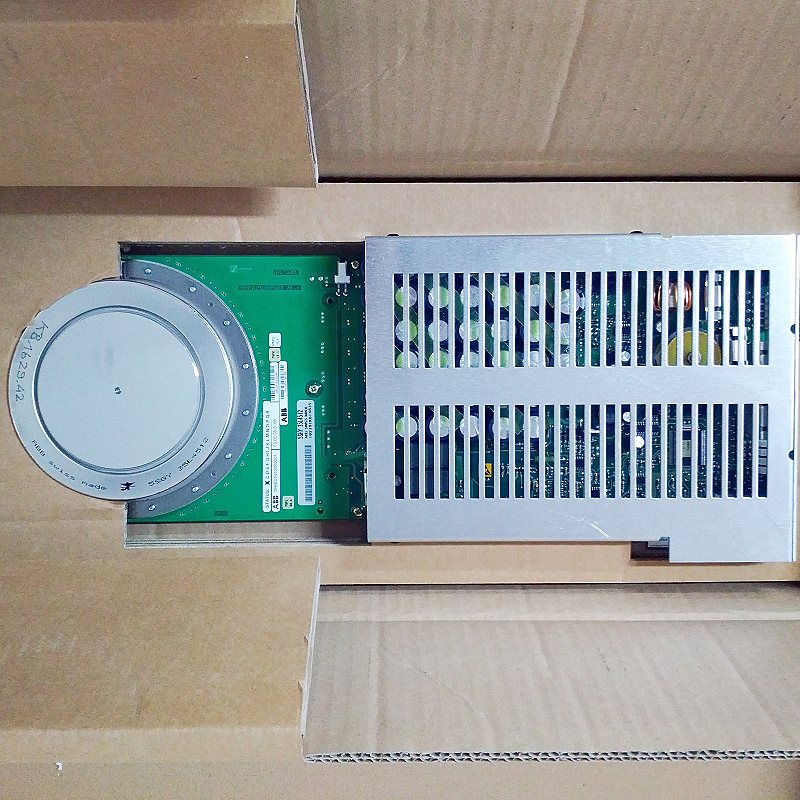

ABB 5SHY35L4512

5SHY35L4512 is a high-power semiconductor switch module manufactured by ABB. It belongs to the asymmetric Integrated Gate-Commutated Thyristor (IGCT)/Thyristor module of the 5SHY series. Designed for harsh industrial environments, this product delivers microsecond-level response, low on-state voltage drop, and high electromagnetic compatibility, making it suitable for power electronic systems with high current and high voltage requirements.

Key Technical Specifications

• Rated Voltage: 1200 V ~ 4500 V
• Rated Current: 35 A ~ 3500 A (standard 35 A, up to 3500 A for IGCT version)
• On-State Voltage Drop: Approximately 2 V @ 4000 A, low power consumption
• Switching Speed: Response time ≤ 1.2 µs, suitable for high-frequency (< 100 Hz) and wide temperature range operations
• Power Loss: On-off loss approximately 12 kW
• Operating Temperature: -40 ℃ ~ +150 ℃, with high-temperature stability
• Package: TO-247, requires external heat sink, weight approx. 0.3 kg
• Protection Features: Built-in overcurrent, overvoltage, and short-circuit protection to simplify system design

Product Features

• High Efficiency & Low Loss: Microsecond-level switching and low on-state voltage drop significantly reduce system energy consumption.
• High Reliability: Industrial-grade design with anti-interference and radiation-resistant capabilities, adapting to harsh environments.
• High Integration: Built-in gate drive and protection circuits reduce external components, facilitating system integration.
• Wide Voltage/Current Range: Covers multiple power levels from 1200 V/35 A to 4500 V/3500 A.
• Fast Response: Suitable for high-frequency switching applications such as variable frequency drives and power conversion.

Structure & Composition

• IGCT Main Body: Integrated gate-commutated thyristor providing the main current path.
• Gate Drive Circuit: Optical or electrical triggering mode, supporting 1:1 drive ratio.
• Protection Circuit: Detection and suppression of overcurrent, overvoltage, and short-circuit.
• Heat Dissipation Device: TO-247 package paired with external heat sink for effective thermal management.

Typical Application Fields

• Power Transmission & Distribution: High-Voltage Direct Current (HVDC) converter stations, distribution automation.
• Renewable Energy Generation: High-power switches for wind power and photovoltaic inverters.
• Power Drive Systems: Large motor speed control, frequency converters, soft starters.
• Industrial Control: Power modules for high-power servo systems, robots, and CNC machine tools.
• Power Grid Regulation & Reactive Power Compensation: High-frequency power electronic devices such as Static Synchronous Compensators (STATCOM).

Installation & Maintenance Guidelines

Installation

• Adopt standard DIN-rail or cabinet mounting, ensuring the module is fixed horizontally.
• Follow ABB’s recommended wiring diagram for connections, with gate, anode, and cathode corresponding to dedicated terminals.
• Equip with a heat sink that meets the rated power, ensuring good thermal conductivity between the heat sink and the module.

Electrical Wiring

• Use cables complying with IEC 61800-5-1 standard, with cross-sectional area matching the rated current.
• Use shielded cables for gate drive signals to avoid electromagnetic interference.

Commissioning

• Check all terminals for secure contact and no short circuits before initial power-on.
• Monitor key parameters such as on-state voltage drop and switching time using ABB’s diagnostic software or on-site instruments.

Maintenance

• Regularly inspect heat dissipation devices for dust accumulation and check if heat sinks are loose.
• Monitor module temperature to ensure it does not exceed the rated upper limit.
• Replace or send for factory repair promptly if abnormal switching noise or overcurrent alarms occur.

Safety

• Cut off power supply and wear qualified insulating protective equipment before operation.
• Comply with local electrical safety regulations and ensure reliable grounding.
