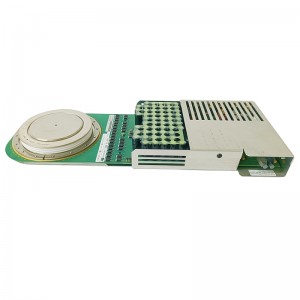

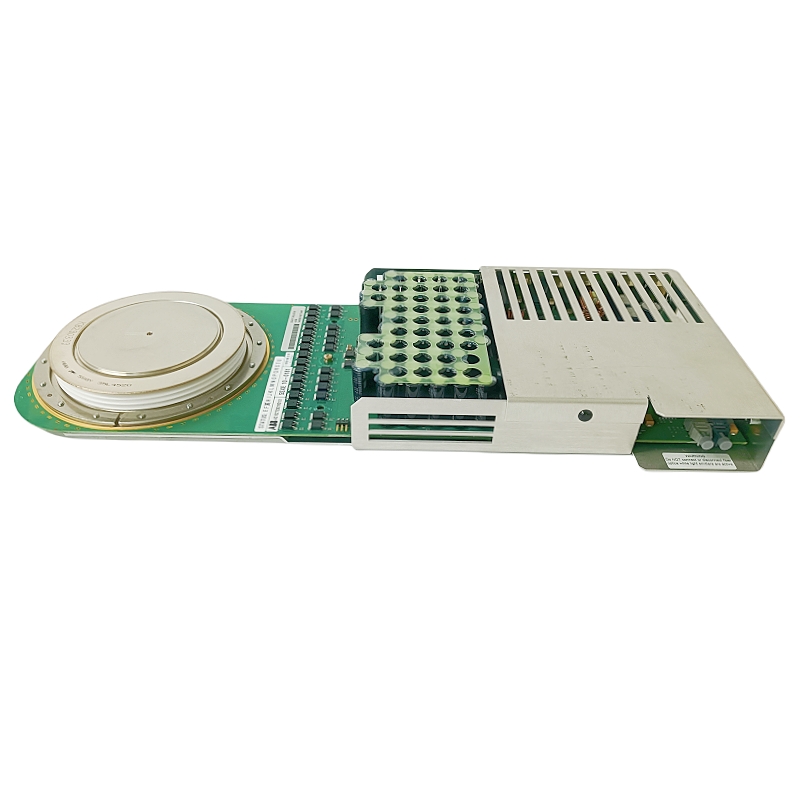

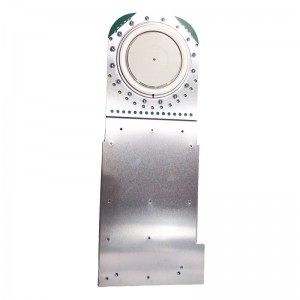

ABB 5SHY35L4520 5SXE10-0181

ABB 5SHY35L4520 5SXE10-0181 (Part Number: AC10272001R0101) belongs to ABB’s high-voltage power semiconductor series. It adopts advanced IGCT technology (evolved from GTO), achieving low loss, fast switching, and high reliability. Manufactured in Switzerland, this product is suitable for various industrial environments with a compact structure, facilitating on-site installation and maintenance.

Key Specifications

Product Features

• High Voltage/High Current: Capable of withstanding extreme working conditions of 4500 V-6500 V and over 3500 A.
• Low Conduction and Switching Losses: Conduction voltage drop < 2.5 V, switching loss < 5 V·µs, improving system efficiency.
• Fast Switching: 1 µs-level switching time, suitable for high-frequency inverter applications.
• High Reliability: Uses high-quality materials and a hard-driven gate circuit, with overcurrent, overvoltage, and overtemperature protection.
• Modular Design: Compact structure, facilitating on-site assembly, replacement, and maintenance.
• Multiple Interfaces: Supports industrial communication protocols such as IEC 61850 and Modbus, enabling easy integration into DCS/PLC systems.

Structure and Composition

• IGCT/IGBT Chip: Core power semiconductor device.
• Gate Drive Circuit: Hard-driven design, realizing low-inductance gate and high-speed retriggering.
• Heat Dissipation System: Water-cooled or air-cooled radiator, ensuring thermal management during high-power operation.
• Package Housing: Complies with industrial protection class (IP4X and above), providing mechanical protection.
• Connection Terminals and Communication Interfaces: Including RS‑485, Ethernet, etc., for communication with upper computers or protection devices.

Application Fields

• High-Voltage Direct Current (HVDC) Converter Stations: Power conversion for high current and high voltage.
• Power Electronic Inverters: Wind power, photovoltaic inverters, and electric vehicle charging piles.
• Industrial Drives and Traction: Large motor drives, rail transit traction systems.
• Power Grid Protection and Control: Cooperates with digital relay protection devices to achieve rapid disconnection and recovery.
• High-Power Heating and Welding: Industrial heating equipment requiring precise current control.

Installation and Maintenance Guidelines

• Installation: Use bolt fixing or snap-on assembly to ensure good contact between the radiator and the cooling medium; check the tightness of terminal connections.
• Wiring: Follow the rated voltage/current specifications and use cables and junction boxes that meet IEC standards.
• Heat Dissipation: Select water cooling or air cooling solutions according to power density; regularly check the flow rate and temperature of the cooling medium.
• Protection Settings: Configure overcurrent, overvoltage, and overtemperature protection thresholds in the control system, and use the module’s built-in diagnostic function for real-time monitoring.
• Regular Inspection: Conduct visual inspections, fastener checks, and heat dissipation system inspections every 6 ~ 12 months; perform thermal imaging tests if necessary to detect potential hot spots.
• Replacement: The module adopts a standardized plug-in structure and can be replaced after power failure. It is recommended to use original spare parts to ensure compatibility.

————————————————————————————————————-
