1. Product Overview

2. Technical Specifications

3. Product Features

3.1 Design and Installation Advantages

• Wall-mounted Design: Features a lightweight and compact wall-mounted structure, enabling quick installation and effective space saving.
• Cabinet-optimized Structure: Optimized structural size and heat dissipation layout for standard cabinet installation, adapting to most industrial electrical cabinet layouts.
• Integrated Compact Size: Adopts an all-in-one integrated design without redundant structural parts, minimizing installation space occupancy.

3.2 Core Control Functions

• Dual Control Modes: Supports V/F control and sensorless vector control, meeting different speed regulation precision and dynamic response requirements.
• Wide Motor Compatibility: Applicable to 3-phase AC induction motors, permanent magnet synchronous motors (PMSM) and ABB Synchronous Reluctance Motors (SynRM).
• Broad Speed Regulation Range: Provides a 0-599 Hz wide frequency range for flexible and precise motor speed control.

3.3 Safety Protection Features

• Built-in STO Function: Equipped with Safe Torque Off (STO) function to ensure safe motor shutdown and meet industrial safety standards.
• Dynamic Braking Support: Compatible with dynamic braking modules to realize fast motor stop and stable speed regulation.
• Comprehensive Protection Mechanism: Built-in over-current protection, over-voltage protection, under-voltage protection and over-temperature protection to avoid equipment damage caused by abnormal operating conditions.

3.4 Connection and Communication Performance

• Standard I/O Slots: Preserves universal input and output module slots for flexible function expansion.
• Modbus RTU Communication: Standardly supports Modbus RTU fieldbus interface for convenient connection with industrial control systems such as PLC.
• USB Keyboard Connection: Compatible with USB keyboard for simple parameter setting and device debugging.
• I/O Expansion Capability: Supports external I/O expansion modules to enrich signal collection and control functions.
• Bluetooth Connectivity: Partial models are equipped with Bluetooth function for wireless parameter monitoring and debugging.
• Advanced Protocol Compatibility: Optional PROFINET and PROFIBUS interfaces to adapt to high-end industrial network communication scenarios.

3.5 Energy Efficiency Management

• Built-in Energy Optimizer: Integrates professional energy optimization algorithm, which can automatically adjust motor operating parameters and directly view real-time and historical energy consumption data.
• High-efficiency Motor Adaptation: Perfectly matches high-efficiency synchronous brushless motors and permanent magnet motors, giving full play to the energy-saving advantages of high-efficiency motors.

4. Structure and Composition

4.1 Mechanical Structure

• Housing Material: Adopts industrial-grade high-strength protective housing, with good dustproof, anti-corrosion and anti-collision performance, suitable for harsh industrial environments.
• Heat Dissipation Design: Equipped with upper and lower through-type heat dissipation channels. A 75mm ventilation gap must be reserved at the top and bottom respectively to ensure unobstructed heat dissipation and avoid overheating failure.
• Frame Specification: Standard R3 frame size, with standardized installation dimensions and strong versatility.

4.2 Electronic Components

• Main Circuit System: Consists of rectifier, DC bus and inverter module, realizing AC-DC-AC power conversion.
• Main Control Board: Equipped with high-performance digital control processor, with firmware version V2.02.0.8, supporting stable operation and precise parameter adjustment.
• Power Supply Module: Independent control board power supply unit, providing stable and reliable working voltage for the control system.
• Expansion Slots: Reserved dedicated slots for fieldbus adapters and I/O expansion modules for subsequent function upgrading.

4.3 Accessories and Optional Configurations

• I/O Module: Standard built-in input and output modules, meeting basic signal control demands.
• Braking Resistor: External braking resistor is optional for fast braking and frequent start-stop working conditions.
• Communication Adapter: Fieldbus communication adapters need to be purchased separately for extended industrial communication functions.

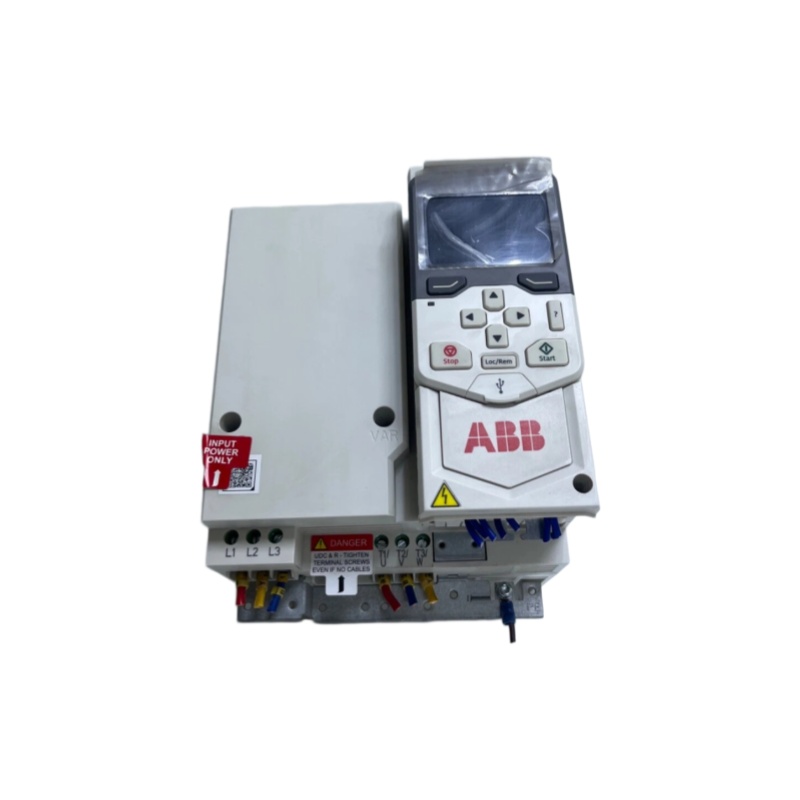

• Control Panel: Optional ACS-AP-x advanced control panel or ACS-BP-S basic control panel for on-site operation and parameter viewing.

5. Application Fields

5.1 Mechanical Equipment Applications

• Pump Equipment: Widely used in various water supply, drainage and fluid delivery pumping systems, realizing energy-saving speed regulation and constant pressure control.
• Fan Equipment: Suitable for industrial ventilation, cooling and exhaust fan equipment, effectively reducing fan energy consumption.
• Compressors: Applied to air compressors and gas compression equipment to stabilize operating speed and improve operation efficiency.
• Conveying Equipment: Used in automated conveying systems and belt conveyors, realizing stable start-stop and stepless speed regulation.

5.2 Industry Applications

• Food and Beverage Industry: Applied to automated production lines for food processing and beverage manufacturing, meeting hygienic and stable operation requirements.
• Logistics and Warehousing Industry: Suitable for automated warehousing, sorting and material handling systems to support efficient logistics operation.
• Water Treatment Industry: Used in urban water supply, sewage treatment and industrial wastewater treatment systems.
• Rubber and Plastics Industry: Matched with rubber and plastic processing machinery to meet variable speed operation demands of processing equipment.
• Textile and Auto Parts Industry: Applied to textile machinery and automobile parts manufacturing equipment, ensuring precise and stable equipment operation.

6. Installation and Maintenance

6.1 Mechanical Installation Requirements

• Installation Mode: Adopt vertical wall-mounted installation, ensuring the equipment is vertically fixed without inclination.
• Ventilation Clearance: Reserve a 75mm heat dissipation space at the top and bottom of the drive respectively to guarantee normal heat dissipation.
• Fixing Requirements: Install the drive firmly on a smooth and rigid vertical surface to avoid vibration and displacement during operation.

6.2 Electrical Installation Key Points

• Grounding Specification: Strictly comply with industrial electrical safety grounding standards to ensure equipment and personal safety.
• Cable Selection: Select matched power cables and control cables according to rated parameters to avoid cable overload and signal interference.
• Electrical Standards Compliance: The whole electrical installation conforms to IEC and UL (NEC) international product safety standards.
• EMC Processing: Follow electromagnetic compatibility installation specifications to reduce electromagnetic interference and ensure stable operation of surrounding electrical equipment.

6.3 Commissioning and Startup

• Pre-installation Inspection: Complete all items of the official installation checklist before power-on to eliminate hidden installation dangers.
• Quick Startup: Complete equipment startup and basic debugging in accordance with the ACS480 quick installation and startup guide.
• Parameter Configuration: Set and optimize operating parameters strictly in accordance with the official control program firmware manual.

6.4 Daily Maintenance Requirements

• Regular Inspection: Periodically check the on-site operating environment, dust accumulation and the working state of cooling fans.
• Temperature Monitoring: Real-time monitor the operating temperature of IGBT modules and ambient temperature to prevent over-temperature faults.
• Braking Resistor Inspection: For equipment equipped with braking resistors, regularly check the heating state to avoid overheating damage.
• Fault Reset: After troubleshooting equipment faults, manually reset the fault through the panel menu to restore normal operation.
