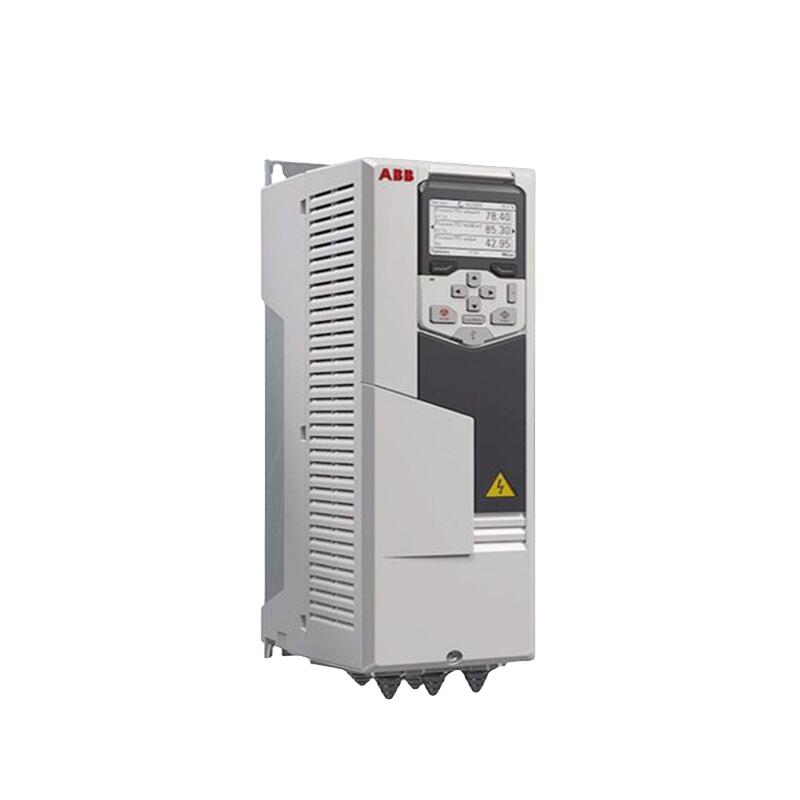

ABB ACS501-020

I. Overview

II. Parameters

• Rated Power: 0.37 kW
• Power Supply Voltage: 200 → 240 V
• Rated Current: 2.4 A
• Output Frequency: 500 Hz
• Ambient Temperature: -10 → +40°C
• Overall Width: 70 mm
• Overall Length: 239 mm
• Overall Depth: 142 mm
• Control Panel: Yes
• Includes Filter: Yes
• IP Protection Class: IP20

III. Product Features

• Compact Design: Integrates all components for easy installation and maintenance.
• Built-in Harmonic Filter: Reduces grid interference and improves system stability.
• Multi-functional Braking Options: Provides various braking methods to adapt to different load requirements.
• User-friendly Interface: Supports multi-language display for easy programming and operation.
• EMC Compliance: Complies with European EMC standards (EN61800-3, EN55011, EN61000-6-3/4), ensuring stable operation in various environments.
• Remote Monitoring Function: Equipped with an Ethernet adapter to support remote monitoring and diagnosis.
• Safety Features: Integrates Safety Torque Off (STO) function to enhance operational safety.

IV. Structure and Composition

• Hardware Components:
  • Control Panel: Equipped with a digital display and buttons for parameter setting and operation.
  • Motor Control Card: Controls the inverter stage and monitors the operation of the ACS501.
  • Control Interface Card: Serves as a bridge between the operator and the ACS501, providing external control connections.
  • Terminal Block: Used for external control connections.
• Optional Components:
  • Panel Mounting Kit: Suitable for different installation methods.
  • Relay Output Expansion: Increases output ports to meet complex control requirements.
  • Fieldbus Module: Supports communication protocols such as DeviceNet and LonWorks.
  • Filter Module: EMC filters and common-mode filters to reduce electromagnetic interference.

V. Application Fields

• Pumps and Fans: Used to adjust flow and pressure, improving energy efficiency.
• Conveyors: Used for material transportation to achieve precise control.
• Compressors: Used to adjust the output of compressors, improving system efficiency.
• Mixers: Used in mixing equipment in the food processing and chemical industries.
• Agricultural Equipment: Used to drive agricultural machinery, such as irrigation systems and harvesters.

VI. Installation and Maintenance

• Installation Steps:
  • Preparation: Ensure the installation environment meets requirements, including power supply, ventilation, and space.
  • Wiring: Perform power and motor wiring according to the wiring diagram in the manual.
  • Control Panel Installation: Panel mounting or wall-mounted installation can be selected.
  • Cooling System: Ensure sufficient air circulation to avoid overheating.
• Maintenance Recommendations:
  • Regular Inspection: Check if the wiring is firm and if there is any looseness or corrosion.
  • Cleaning: Regularly clean the surface and interior of the equipment to prevent dust accumulation.
  • Parameter Backup: Regularly back up parameters to prevent accidental loss.

———————————————————————————————————————————
