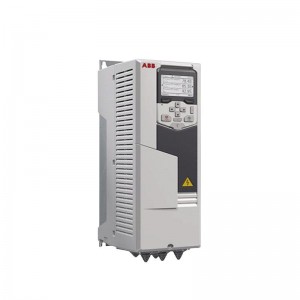

ABB ACS504-061-5

Overview

ABB ACS504-061-5 is a model in ABB’s general-purpose drive series, suitable for various industrial applications. Based on ABB’s standard drive technology, it provides efficient, reliable, and flexible motor control solutions. The drive is designed to simplify the installation, commissioning, and maintenance processes, making it suitable for occasions requiring quick start-up and operation.

Parameters
Power range: 0.75 kW to 500 kW (depending on the specific model)
Voltage range: 380 V to 480 V (standard configuration)
Control methods: Supports multiple control methods, including analog input, digital input/output, fieldbuses (such as DeviceNet, LonWorks), etc.
Protection functions: Built-in multiple protection mechanisms such as overcurrent, overvoltage, and overheating protection.
Communication interfaces: Supports multiple communication protocols such as Modbus RTU/ASCII, CANopen, DeviceNet, etc.

Product Features

High efficiency and energy saving: Adopts advanced vector control technology to achieve efficient operation of the motor.
Modular design: Supports various expansion options, such as I/O modules, brake units, filters, etc., to meet different application needs.
User-friendly: Equipped with an assistant-type control panel (ACS-AP-S), providing a multi-language display and operation interface for easy operation and maintenance.
Safety: Complies with UL, cUL, and CE certifications to ensure the safe operation of the equipment in various environments.
Remote monitoring: Supports remote monitoring and diagnosis through an Ethernet adapter (SREA-01).

Structure and Composition
ABB ACS504-061-5 consists of multiple modules, mainly including:

Inverter module: Responsible for the variable frequency control of the motor, which is the core part of the drive.
Control unit: Contains a control panel, I/O interfaces, and communication modules, used to realize user interaction and system control.
Power module: Provides stable power input and supports multiple power configurations.
Heat dissipation system: Built-in fans and radiators to ensure the stable operation of the equipment under high loads.
Installation options: Supports multiple installation methods, such as panel mounting and cabinet mounting.

Application Fields
ABB ACS504-061-5 is widely used in the following fields:

Fans and pumps: Used to adjust air volume and water volume to improve energy efficiency.
Conveyors and conveyer belts: Used to control the material conveying speed to achieve precise control.
Compressors: Used to adjust the output pressure of compressors to improve system efficiency.
Textile machinery: Used to control the running speed of textile equipment to improve production efficiency.
Food and beverage industry: Used to control the operation of equipment such as mixers and filling machines.
Water treatment: Used to control the operation of water pumps and filtration equipment.

Installation and Maintenance
Installation steps:

Environment preparation: Ensure that the installation environment meets the electrical and mechanical requirements of the equipment, including temperature, humidity, ventilation, etc.
Wiring: Connect the power supply and control signals according to the wiring diagram in the manual.
Grounding: Ensure good grounding of the equipment to prevent electrical interference.
Cabinet installation: Select the appropriate installation method as needed, such as panel mounting or cabinet mounting.

Maintenance recommendations:

Regular inspection: Regularly check the operating status of the equipment, including temperature, noise, vibration, etc.
Cleaning: Keep the surface and interior of the equipment clean to prevent dust accumulation.
Replacement of spare parts: Replace aged or damaged components as needed, such as filters, fans, etc.
Software update: Regularly update the firmware and software of the drive to obtain the latest functions and performance optimizations.

———————————————————————————————————————————

If you would like to learn more about our products and services, please feel free to contact us at any time!
