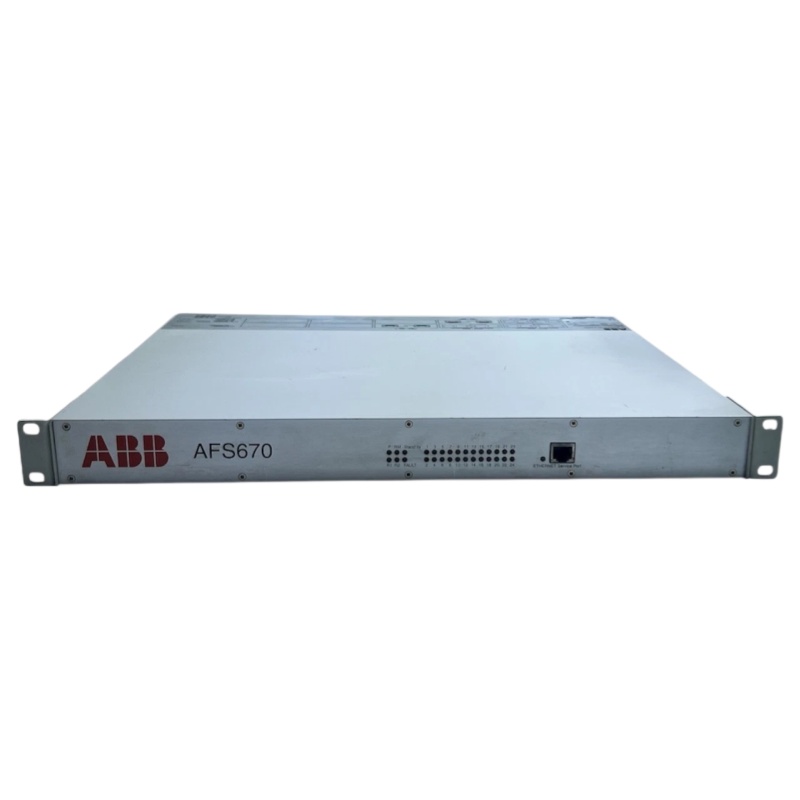

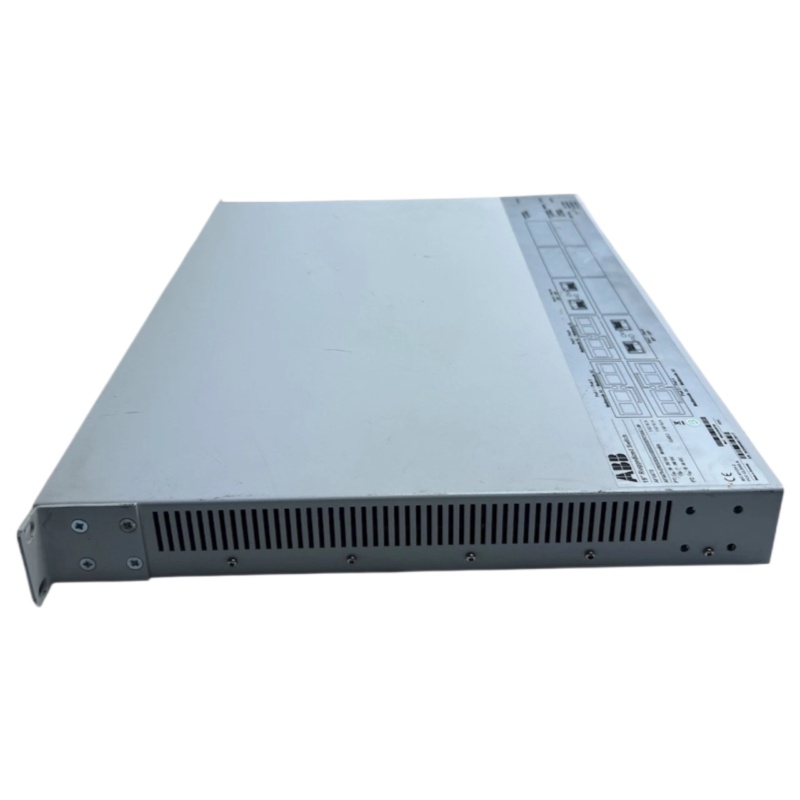

ABB AFS670 19 AFS670-EREEDDDSSEEEEEEEPZYX05.1.00 Management Switch
ABB AFS670 19 AFS670-EREEDDDSSEEEEEEEPZYX05.1.00
1. Product Overview
2. Technical Specifications
|
Item
|
Parameter
|
|---|---|
|
Dimensions
|
448mm × 44mm × 310mm (19-inch rack-mounted)
|
|
Weight
|
4.3kg
|
|
Total Ports
|
Up to 28 ports
|
|
Fast Ethernet Ports
|
Up to 24 ports (multiple media options available)
|
|
Gigabit Uplink Ports
|
2 or 4 ports (RJ45 or SFP fiber interface)
|
|
PoE Ports
|
Up to 4 ports (optional)
|
|
Port Position
|
Front panel or rear panel mounting (optional)
|
2.1 Electrical Parameters
- Low Voltage Power Supply: 9.6-60V DC
- High Voltage Power Supply: 48-320V DC or 90-265V AC
- Redundant power configuration supported
2.2 Environmental Parameters
- Operating Temperature: -40°C to +85°C
- Humidity: 5%-95% Non-condensing
- Ingress Protection Grade: IP30
3. Product Features
- Industrial-grade Design: Built with a sturdy metal housing, it delivers excellent durability and adaptability for harsh industrial environments.
- Fanless Heat Dissipation: Eliminates fan failure risks, effectively reducing equipment failure rates and daily maintenance costs.
- Redundant Power Supply Support: Ensures continuous network connection and stable operation in case of sudden power supply interruption.
- Multi-media Compatibility: Supports hybrid networking of fiber optics (SC, ST, SFP) and copper cables to meet diverse networking demands.
- PoE Power Supply Capability: Provides Ethernet power supply for up to 4 ports, simplifying on-site wiring and deployment.
- Network Isolation Function: Avoids data packet conflicts through reasonable network segmentation, ensuring stable and smooth data message transmission.
4. Structure and Composition
4.1 Physical Structure
- Standard 19-inch rack mounting design for convenient cabinet installation
- High-strength metal housing for comprehensive equipment protection
- Ports configurable for front or rear panel installation to adapt to different deployment scenarios
4.2 Functional Modules
|
Module
|
Functional Description
|
|---|---|
|
Switching Function
|
Supports Layer 2 switching, as well as VLAN, RSTP, GVRP and QinQ protocols
|
|
Management Function
|
Equipped with SSH, HTTPS, SNMP, port mirroring and self-detection functions
|
|
Security Function
|
Supports MAC address binding, 802.1X authentication, RADIUS authentication and access control mechanism
|
|
Time Synchronization
|
Supports Precision Time Protocol for accurate system time synchronization
|
|
Diagnostic Function
|
Provides port diagnosis, copper cable testing and network traffic analysis capabilities
|
4.3 EMC Electromagnetic Compatibility
- EN 55032 Class A
- FCC CFR47 Part 15 Class A
- IEC 61850-3 (for substation application scenarios)
- IEEE 1613 Standard
5. Application Fields
- Industrial Automation Networks: Applicable to PLC control systems and SCADA systems
- Substation Automation: Fully compliant with IEC 61850 standards for substation intelligent operation
- Power Infrastructure: Used for network monitoring of power generation, transmission and distribution systems
- Rail Transit: Applied to railway signal systems and communication transmission systems
- Process Control: Widely used in petrochemical, water treatment and manufacturing industrial control scenarios
6. Installation and Maintenance
6.1 Installation Guidelines
- Install the device on standard 19-inch cabinet guide rails to ensure fixed and stable installation
- Reserve sufficient space for natural ventilation and heat dissipation; fanless design relies entirely on natural air convection for cooling
- Complete ground connection in strict accordance with local electrical specifications and safety standards
- Adopt redundant power configuration for power connection to improve system operational reliability
