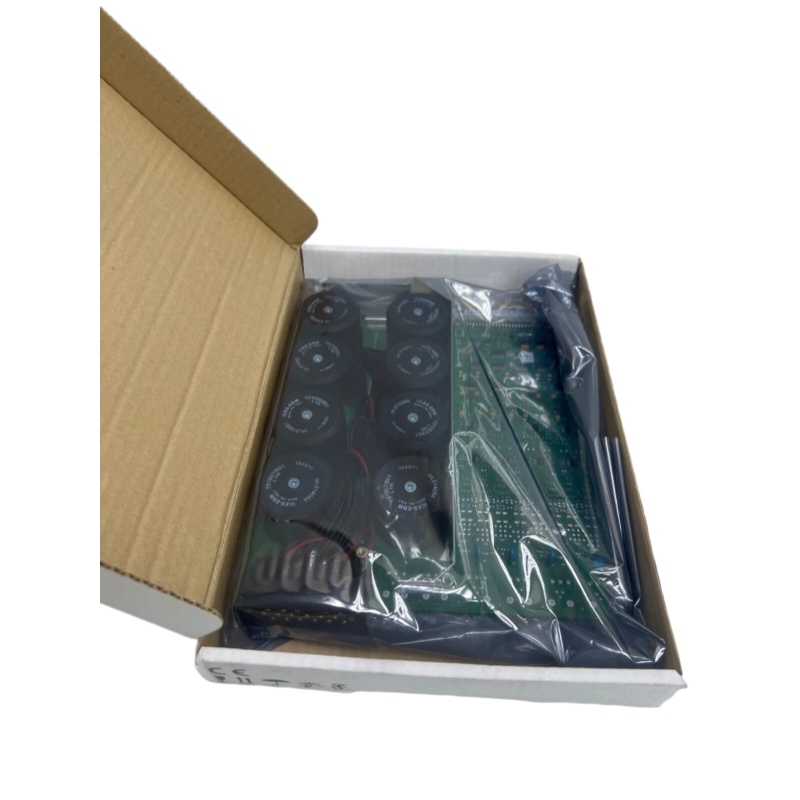

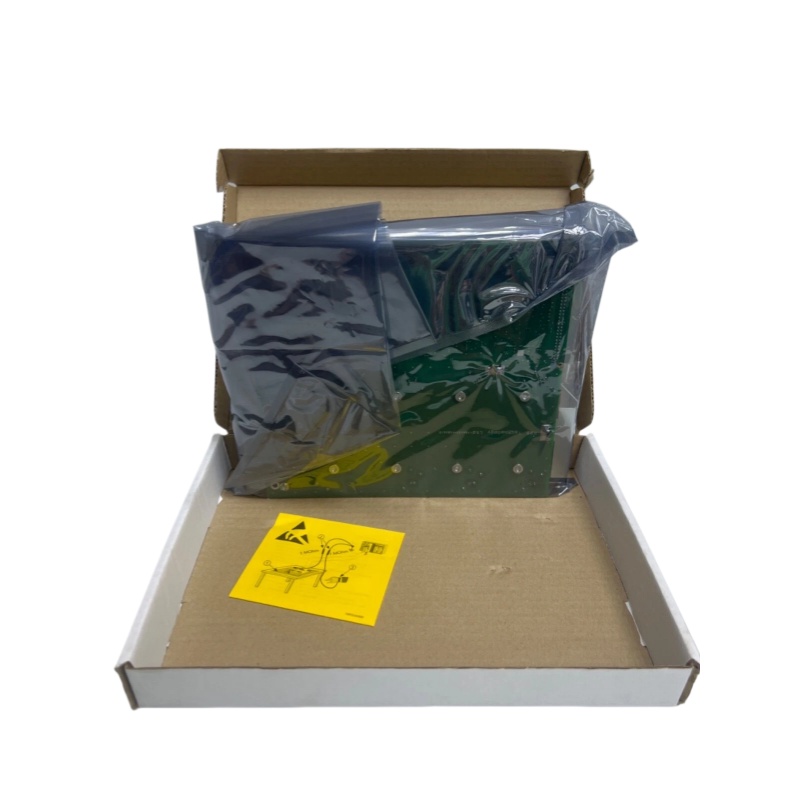

ABB 1VCF750170824 Interface Module

Short Description:

ABB 1VCF750170824 is an Automation Interface Module (AIM), which serves as a feedback component of the ABB Distributed Control System (DCS).

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Brand: ABB

Manager: Jinny

E-mail: sales5@xrjdcs.com

Tel: + 86-15359273791

( WhatsApp )Wechat: + 86-15359273791

Warranty: one year

In stock: In stock

Send email to us Download as PDF

Product Detail

Product Tags

ABB 1VCF750170824

1. Product Overview

ABB 1VCF750170824 is an Automation Interface Module (AIM), which serves as a feedback component of the ABB Distributed Control System (DCS). Designed for industrial automation scenarios, this module is mainly used to collect on-site operating data, feed valid signals back to the control system, and realize remote monitoring and automatic control of factory production equipment.

Originating from Finland, the module is a standard component in ABB industrial automation product series. It undertakes core tasks of on-site data acquisition and control signal feedback in DCS system configurations, featuring stable performance and strong compatibility.

2. Product Parameters

Item	Parameter
Product Model	1VCF750170824
Module Version	AIM Module Update to A2.2
Product Category	Module / Controller / Server / Touch Screen
Place of Origin	Finland
Weight	0.9 KG
Dimensions	35 × 28 × 5 cm
Color	Green / Black / Blue
Product Condition	Brand New
Warranty	12 Months
Minimum Order Quantity	1 Piece

3. Product Features

1. High Reliability

As a world-renowned enterprise in power and automation technology, ABB adopts strict production and testing standards. The module delivers excellent operating stability and environmental adaptability, supporting long-term uninterrupted operation in industrial environments.

2. Advanced Feedback Function

Equipped with displacement sensors, signal processors and signal output units, the module converts tiny valve position changes into standard electrical signals. It provides accurate data support for equipment operation optimization and industrial energy-saving renovation.

3. Modular Structure Design

The standardized modular design supports flexible assembly and combination, which greatly simplifies system integration, facilitates later function expansion and equipment upgrade, and reduces overall application costs.

4. Rich Communication Interfaces & High Control Accuracy

It supports multiple mainstream communication protocols and interfaces including RS-232, RS-485 and Ethernet. The control precision is up to 0.2%, fully meeting the high-precision control requirements of sophisticated industrial production processes.

5. Wide Temperature Resistance & High Protection Grade

The module can work stably in an ambient temperature range of -40°C to +70°C. With an IP65 protection level, it can resist dust, water splash and temperature changes, adapting to various harsh industrial working conditions.

6. Electronic Trip Function

It realizes efficient remote communication and real-time data feedback, helps users realize centralized unified management of on-site equipment, and improves the intelligence level of industrial control systems.

4. Structure and Composition

4.1 Main Components

Displacement Sensor: Accurately detects real-time position changes of industrial valves and captures original operating data.

Signal Processor: Filters, sorts and optimizes the collected original signals to eliminate interference and ensure data authenticity and accuracy.

Signal Output Module: Outputs the processed standard signals to the DCS control system for real-time monitoring and automatic adjustment.

Communication Interface Unit: Realizes stable data exchange and signal transmission between the module and the upper computer control system.

4.2 Structural Characteristics

The whole machine adopts integrated modular design with simple structure, which is convenient for on-site installation and daily maintenance. The rugged reinforced shell effectively resists external impact and environmental corrosion. It supports dual installation methods of DIN rail mounting and rack mounting, with strong installation flexibility.

4.3 System Connection

This module is perfectly compatible with the S800 I/O system and supports mainstream industrial fieldbus systems such as PROFIBUS DP/DP-V1 and FOUNDATION Fieldbus. It can be seamlessly connected with most mainstream industrial control systems on the market.

5. Application Fields

5.1 Process Industry

Petrochemical industry, power generation, metallurgical industry, paper making industry

5.2 Building Automation

Industrial buildings, civil buildings, commercial buildings

5.3 Distribution Network System

Substation operation, distribution network monitoring, power transmission system

5.4 Other Industrial Scenarios

Special low-voltage systems for wind power generation, industrial process control, remote monitoring and data acquisition systems

————————————————————————————————————-
