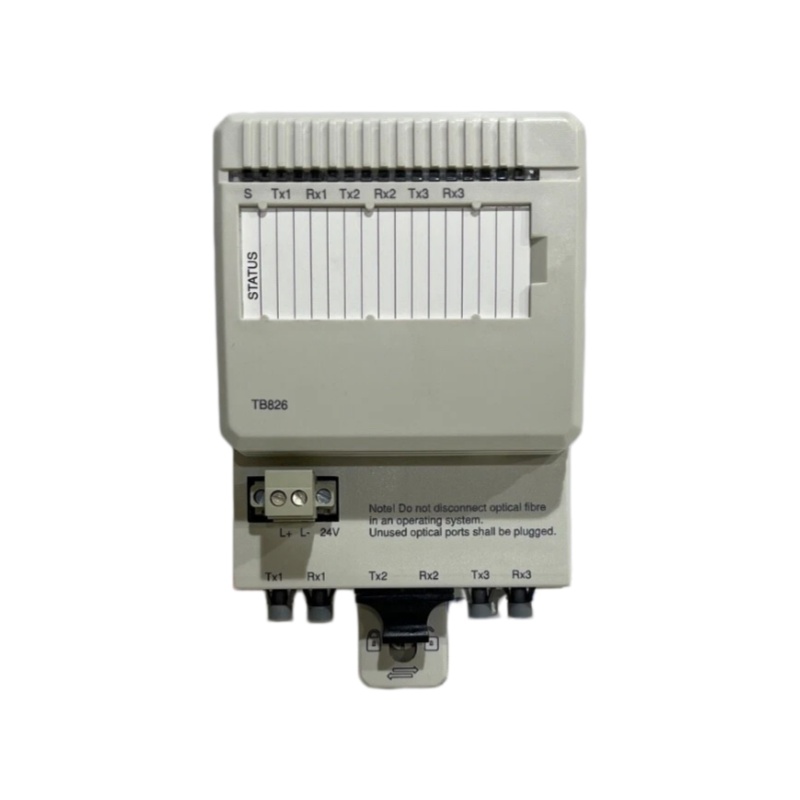

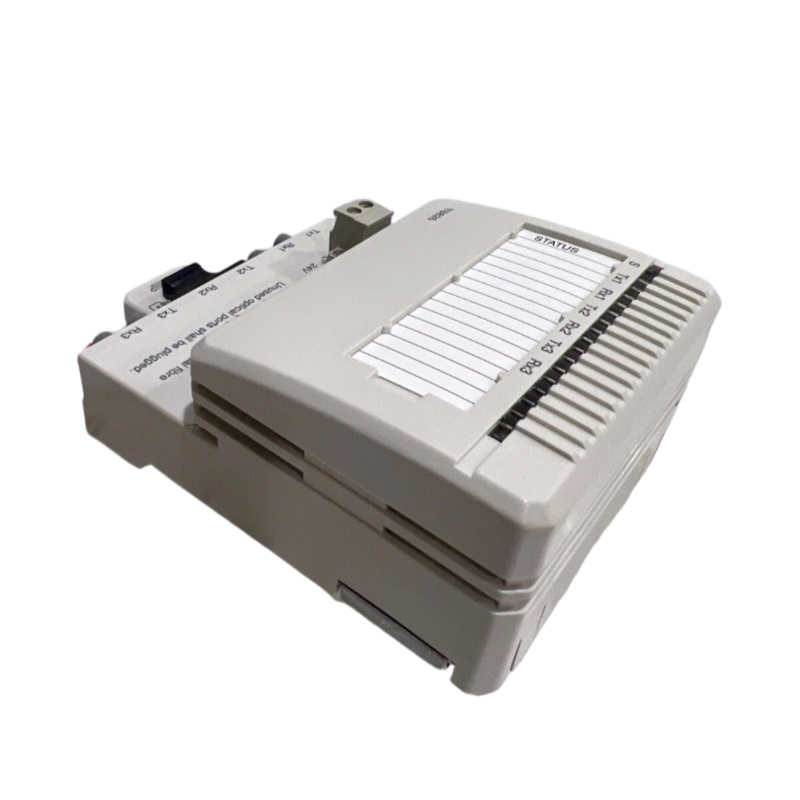

ABB 3BSE061637R1 TB826 Media Converter
ABB 3BSE061637R1 TB826
Main Technical Specifications
|
Parameter Category
|
Specification Description
|
|---|---|
|
Product Type
|
Single-mode Optical Media Converter
|
|
Communication Distance
|
Maximum 5000 meters (star topology configuration); up to 20000 meters for S800 I/O HI applications
|
|
Conversion Type
|
Conversion between plastic/HCS fiber and glass fiber
|
|
Connector Type
|
Versatile Link connector (for plastic/HCS fiber) + SC connector (for glass fiber)
|
|
Mechanical Structure
|
S800L mechanical structure, DIN rail mountable
|
|
Dimensions
|
85.6mm (W) × 58.5mm (D) × 136mm (H, including latch)
|
|
Weight
|
0.21kg
|
|
Ingress Protection Rating
|
IP20 (compliant with IEC 60529 standard)
|
|
Insulation Voltage
|
50V
|
|
Dielectric Strength
|
500V AC test voltage
|
|
Wiring Specification
|
0.2-2.5mm² solid wire or stranded wire (24-12 AWG)
|
|
Recommended Torque
|
0.5Nm
|
LED Indicator Status
- Red: Module fault
- Green: Module normal (FPGA configuration completed)
- Yellow: Data receiving/transmission status
Product Features
- High-speed Transmission: Equipped with high-speed data processing capability, fully meeting the real-time and high-speed transmission requirements of industrial control systems.
- Long-distance Communication: Supports ultra-long-distance transmission with a maximum communication range of 5000 meters, delivering superior performance compared with traditional optical fiber converters.
- Flexible Media Conversion: Enables seamless conversion between plastic/HCS fiber and glass fiber, effectively improving the compatibility and scalability of industrial control systems.
- Modular Design: Adopts standard S800L mechanical structure with DIN rail mounting design, which simplifies on-site installation, disassembly and daily maintenance operations.
- Multi-protocol Support: Compatible with multiple communication interfaces including Ethernet and serial communication, adapting to diverse industrial networking requirements.
- Excellent Safety and Anti-interference Performance: Built-in professional protection functions to effectively shield external electromagnetic interference and ensure stable operation of industrial systems and equipment.
- Low Maintenance Cost & High Reliability: Supports remote diagnosis and remote maintenance, reducing on-site operation costs and ensuring long-term stable availability of equipment.
Structure and Composition
- Optical Conversion Module: The core functional component that realizes bidirectional mutual conversion between optical signals and electrical signals.
- Dual Fiber Interfaces: Equipped with Versatile Link connector for plastic/HCS fiber connection and standard SC connector for single-mode glass fiber connection.
- DIN Rail Mounting Mechanism: Standard industrial mounting structure for fast and fixed installation on conventional DIN rails.
- LED Status Indication System: Real-time monitoring and visual display of equipment operating status, facilitating quick fault judgment and status inspection.
- Power Connection Terminal: Special terminal block for stable power input and connection.
- S800L Industrial Housing: High-strength protective housing compliant with industrial environmental standards, adapting to complex industrial working conditions.
Application Fields
- Power Industry: Distributed control systems for power plants and substations
- Petrochemical Industry: Automatic monitoring systems for petroleum refining and natural gas transmission projects
- Water Treatment Industry: Remote I/O data acquisition systems for sewage treatment plants and urban water supply systems
- Manufacturing Industry: Automatic control and real-time equipment monitoring of production lines
- Transportation Industry: Signal control systems for railways and rail transit
- Infrastructure Construction: Monitoring systems for smart buildings and energy management projects
