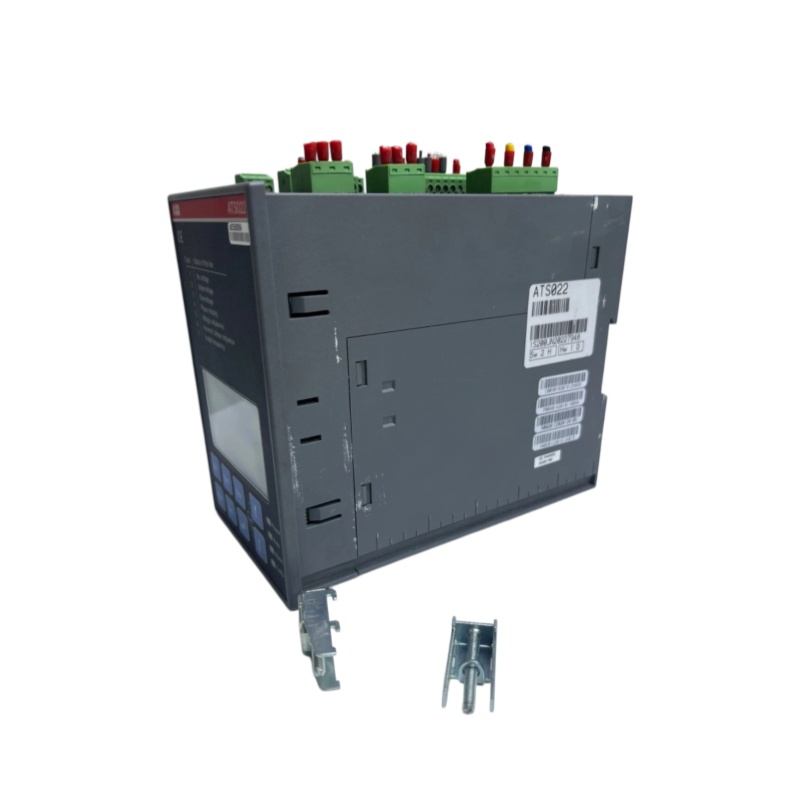

ABB ATS022 Switch Controller
ABB ATS022
1. Product Overview
2. Technical Parameters
|
Parameter Category
|
Technical Indicators
|
|---|---|
|
System Type
|
Single-phase system supported
|
|
Voltage Range
|
57.5-109VAC, 24VDC-110VDC
|
|
Operating Frequency
|
50Hz, 60Hz, 400Hz, 16 2/3Hz
|
|
Communication Protocol
|
Modbus RS485
|
|
Ingress Protection Rating
|
IP65 (partial configurations)
|
|
Mechanical Life
|
20,000 operations
|
|
Weight
|
0.90kg
|
|
Order Code
|
1SDA065524R1 / 10100414
|
Modbus Parameter Configuration
- Address Range: 1-247, factory default: 1
- Baud Rate: 9600/19200/38400 bps, factory default: 9600 bps
- Parity Check: Even parity / Odd parity / No parity, factory default: No parity
- Communication Mode: Local / Remote, factory default: Local
3. Product Features
3.1 Independent Operation Without Auxiliary Power Supply
3.2 Graphical Display & Human-Machine Interface
3.3 Multi-functional Protection
- Mains-generator automatic transfer
- Overvoltage and undervoltage alarm
- Grid frequency detection
- Neutral line misconnection alarm
- Fire emergency non-essential load cut-off
3.4 Fault Memory Function
3.5 Adjustable Operation Delay
3.6 Standard Compliance
3.7 Compatibility with ABB Circuit Breakers
4. Structure and Composition
- 2 or 3 sets of air circuit breakers / molded case circuit breakers
- Mechanical interlocking mechanism
- Motor operator (with key locking function)
Input & Output Signal Specifications
- DI10 programmable input: supports forced generator start function
- DI11 input: indicates the operating status of CB3 power switch
- Supports multiple application configurations including 2CBs and 3CBs NPL systems
5. Application Fields
|
Application Field
|
Specific Application Scenarios
|
|---|---|
|
Building Engineering
|
Dual-power supply for commercial buildings and high-rise buildings
|
|
Airport
|
Airport integrated power supply system
|
|
Power Plant
|
Dual-power backup system for power generation stations
|
|
Metro & Rail Transit
|
Railway transit power supply system
|
|
Medical Institution
|
Power continuity guarantee for medical sites
|
|
Data Center
|
IT server power supply and UPS power backup
|
|
Industrial Production
|
Power supply for production workshops and industrial plants
|
|
Port & Terminal
|
Power supply for port terminal facilities
|
Typical Application Functions
- Power supply for UPS units
- Line switching management during main grid power failure
- Non-priority load management and cut-off
- Switching control of two independent power circuits
- Automatic transfer between municipal mains and standby generator
————————————————————————————————————-
