ABB CMC 50-2 P72261-4-9280 Multi-function Module

Short Description:

CMC 50-2 is a Multifunction Module launched by ABB Automation Products, belonging to the CMC 50 series.

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Brand: ABB

Manager: Jinny

E-mail: sales5@xrjdcs.com

Tel: + 86-15359273791

( WhatsApp )Wechat: + 86-15359273791

Warranty: one year

In stock: In stock

Send email to us Download as PDF

Product Detail

Product Tags

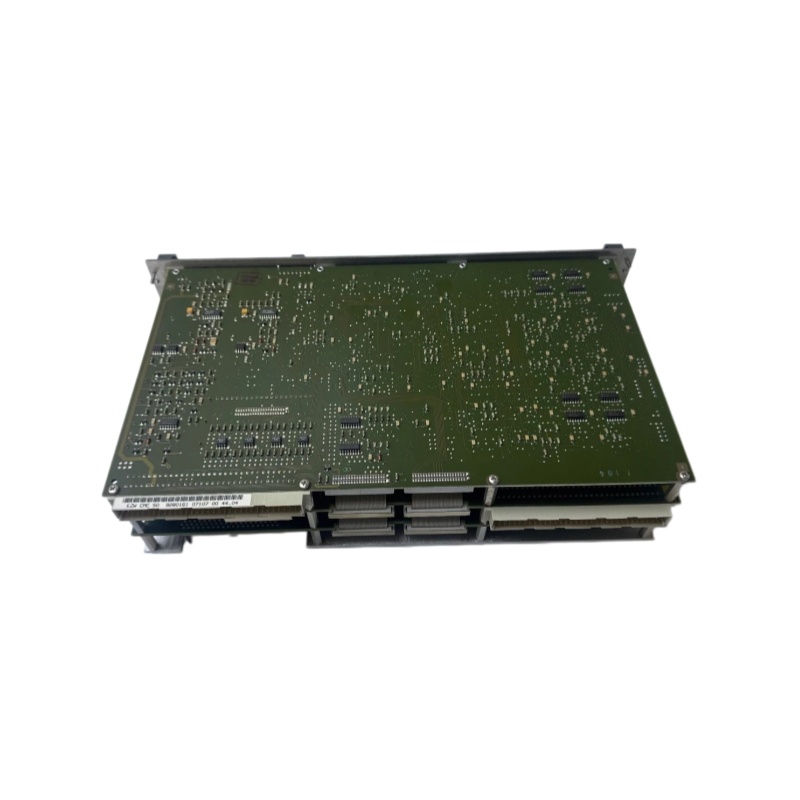

ABB CMC 50-2 P72261-4-9280

1. Product Overview

CMC 50-2 is a Multifunction Module launched by ABB Automation Products, belonging to the CMC 50 series.

CMC 50-2 is the replacement version of CMC 50 and CMC 50-1.

There is no difference in functional performance among the three models (CMC 50, CMC 50-1, CMC 50-2). The core distinction lies in the higher transmission rate of its redundant link.

All three models are managed as CMC 50 in the Composer software.

2. Technical Parameters

Parameter Item	Specification
Supply Voltage	20V to 33V
Maximum Overvoltage	35V (duration: 1s); 45V (duration: 10ms)
Fuse	5×20, optional models: M 3.15 E / T 3.15 H
Rated Current @ 24V Power Supply	0.8A
Maximum Current @ 20V Power Supply	0.92A
Maximum Power Dissipation	20W
Operating Temperature Range	0°C to 50°C (50°C refers to the temperature under rack ventilation conditions)

Processing and Storage Capacity

10,000 global process variables (PV)
50,000 local variables
16 tasks for function processing
Task cycle: 20ms to 2900 hours

3. Product Features

Redundancy Function

Supports redundant configuration; data can be retained when the module is powered off.

Communication Interfaces

2 redundant Fnet interfaces for communication with Melody I/O modules
Redundant Cnet (O) interface for vertical communication
Redundant Cnet (C) interface for horizontal communication

Monitoring Function

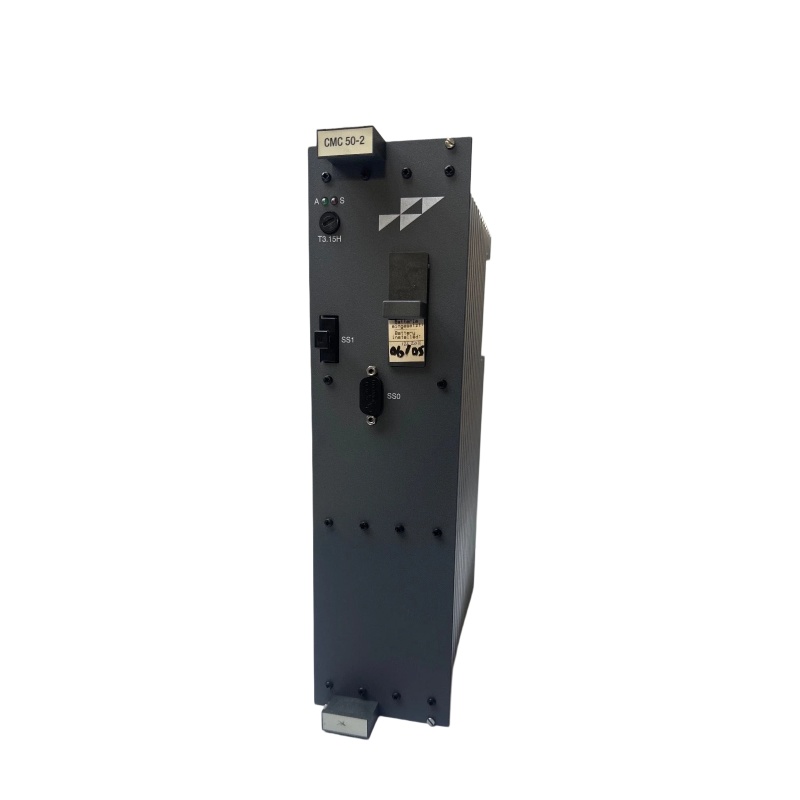

Built-in module monitoring function; fault LED indicators equipped on the front panel to indicate partial module faults.

Clock Synchronization

Equipped with a radio clock interface to support time synchronization.

Redundancy Restrictions

Only modules of the same model can be set as redundant partners.
If CMC 50-2 is paired with CMC 50 or CMC 50-1 for redundancy, the active unit will trigger an error message: “Redundancy link failure”.
Different-model modules are only allowed as redundant partners for online module replacement.
The defined redundant structure must be installed immediately after redundancy balancing is completed.

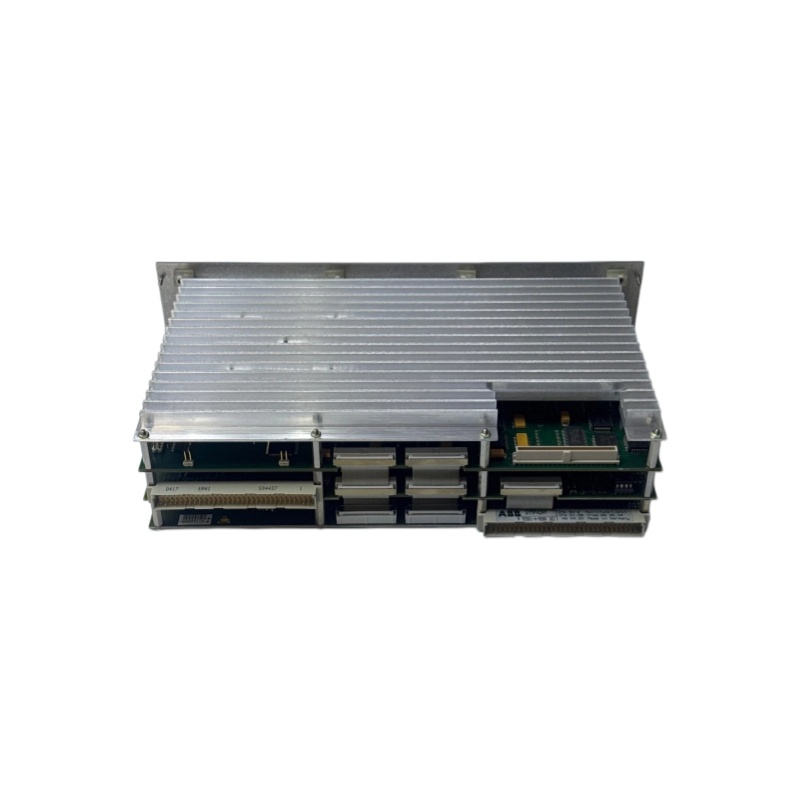

4. Structure and Composition

System Accessories

Front System Package (BA-No. 601)
Mandatory accessory: 3.6V lithium-ion battery (Part No.: 37921-4-0339111) for RAM buffer

Catalog Number Specification

Model	Catalog Number
CMC 50-2	72261-5-9280161
CMC 50-1	72261-4-0788763
CMC 50	72261-4-0788761

Note: No matching information is found for the user-inquired model “P72261-4-9280″. The model “P 72263-4-9280″ mentioned in relevant materials belongs to the CMC 70 series instead of the CMC 50 series.

5. Application Fields

Industrial Control and Automation System

Process Control
Industrial Automation

Description of Redundancy Application

The redundancy function prevents major system shutdowns caused by minor faults.
Supports hot swapping, allowing component replacement without system shutdown.
Logic of the backup controller can be updated without interrupting production processes.
Improves the recovery capability of the network and system against power failures, equipment faults and cable damage.
