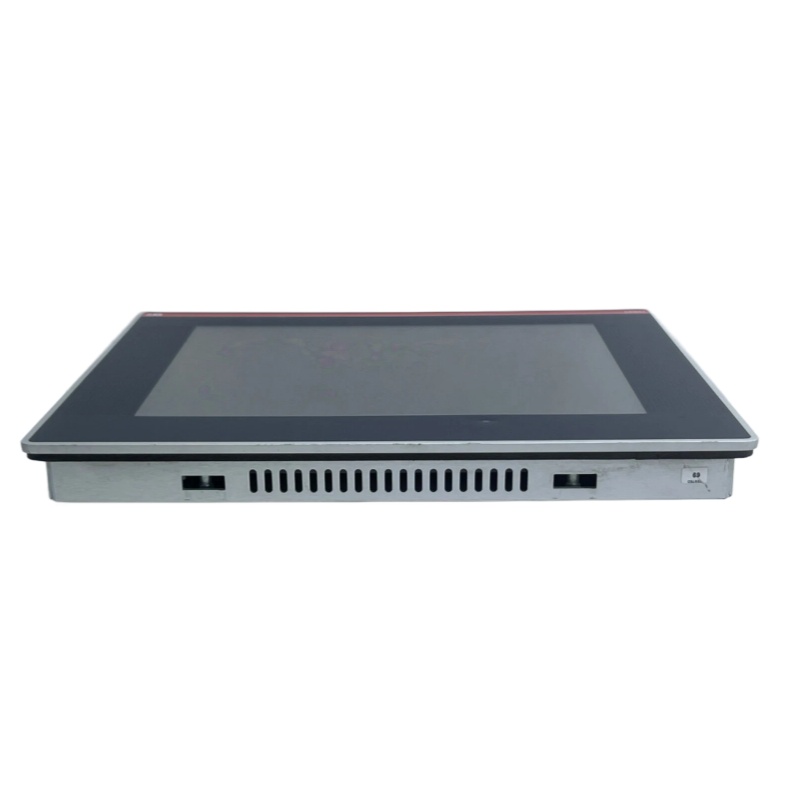

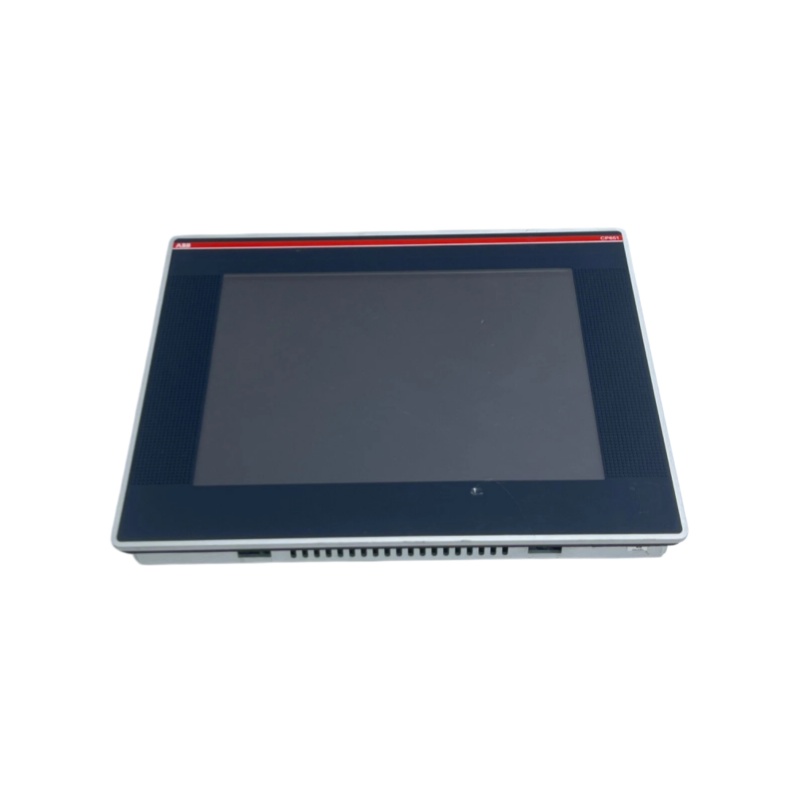

ABB CP651 C4 1SAP551100R0001 Operating Panel
ABB CP651 C4 1SAP551100R0001
1. Product Overview
2. Main Technical Specifications
|
Parameter Category
|
Technical Specifications
|
|---|---|
|
Screen Specification
|
10.4-inch TFT Touch Screen
|
|
Resolution
|
800×600 Pixels
|
|
Display Colors
|
64K Colors
|
|
Power Supply
|
24V DC (18-30V DC)
|
|
Power Consumption
|
24W
|
|
Operating Temperature
|
0°C to +50°C
|
|
Storage Temperature
|
-20°C to +70°C
|
|
Ingress Protection Rating
|
Front Panel: IP66; Housing: IP20
|
|
Product Dimensions
|
232mm (H) × 287mm (W) × 60mm (D)
|
|
Product Weight
|
2.05kg
|
3. Product Features
3.1 High-Performance Display
3.2 Rich Communication Interfaces
- 2 × 10/100 Mbps Ethernet Ports
- 1 × RS-232/-422/-485 Serial Interface
- 2 × USB 2.0 Host Ports
- 1 × SD Card Slot
- 2 × Expansion Slots
3.3 PB610 Platform Compatibility
3.4 Advanced Security Performance
3.5 Flexible System Expansion
3.8 Rugged & Durable Design
4. Structure and Composition
- Touch Detection Module: Accurately captures and identifies touch position signals from the screen surface
- Main Controller: Receives touch signal data and converts it into standard coordinate data for system recognition
- Display Unit: 10.4-inch high-definition TFT display screen for real-time data and interface presentation
- Communication Module: Integrated with Ethernet, serial port, USB and other multi-type communication interfaces for data transmission
- Control Circuit Board: Precisely controls current output, equipment start-stop status and the operation of internal electronic components
- Expansion Interfaces: Equipped with 2 expansion slots for functional extension and customized secondary development
5. Application Fields
- Communication Industry: Monitoring and parameter configuration of communication equipment
- Petrochemical Industry: Real-time production process monitoring and industrial data collection
- Automotive Manufacturing: Production line automatic control and human-machine interactive operation
- Light Industry: Intelligent control of packaging, printing and other processing equipment
- Metallurgical Industry: Continuous equipment monitoring and operation control in high-temperature industrial environments
- Construction Industry: Intelligent control of building automation systems
- Power Industry: Operational monitoring and safety protection of power generation equipment
- Weighing System: High-precision weighing control for floor scale systems, supporting dynamic weighing, quantitative weighing, single-point weighing and other working modes
6. Installation and Maintenance
6.1 Installation Requirements
- Operating ambient temperature: 0°C to 50°C
- Storage temperature: -20°C to 70°C
- Keep the installation environment clean and dry, free of oil contamination and corrosive gas
6.2 Maintenance Precautions
- Regular Inspection: Clean the screen surface regularly to remove dust and stains, and check whether all interface connections are firm and stable
- Data Backup: Periodically back up system configurations and operational data to prevent data loss
- Security Upgrade: BSP UN30 v1.76 and earlier versions have potential security vulnerabilities. It is recommended to upgrade the software version timely to ensure system security
- Programming Software: Adopt PB610 Panel Builder 600 for application program configuration, development and debugging
- Fault Handling: In case of equipment abnormalities, cut off the power supply first for inspection. Never perform live operation to avoid safety accidents and equipment damage
