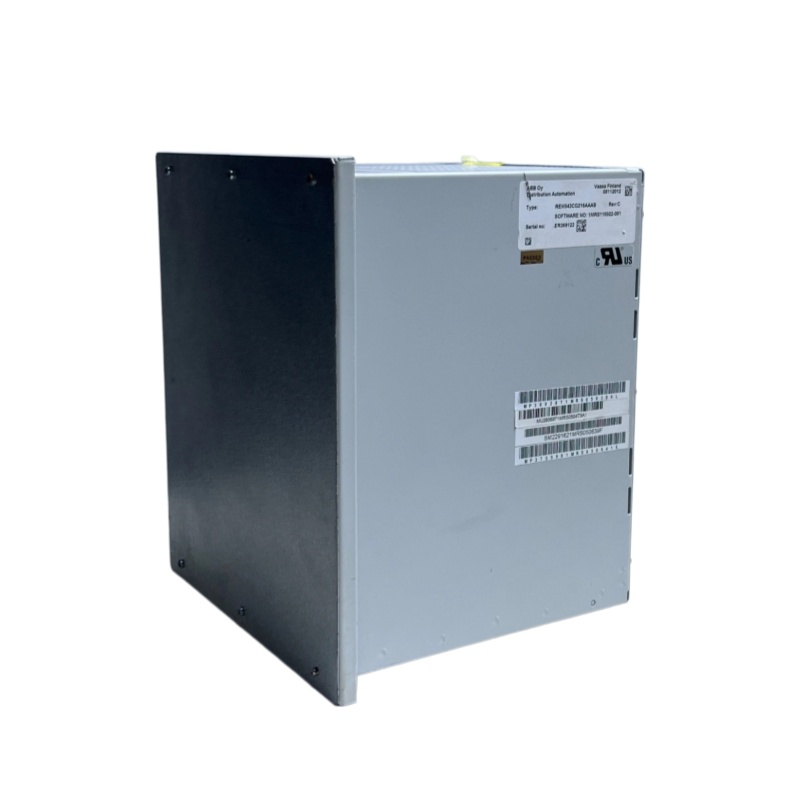

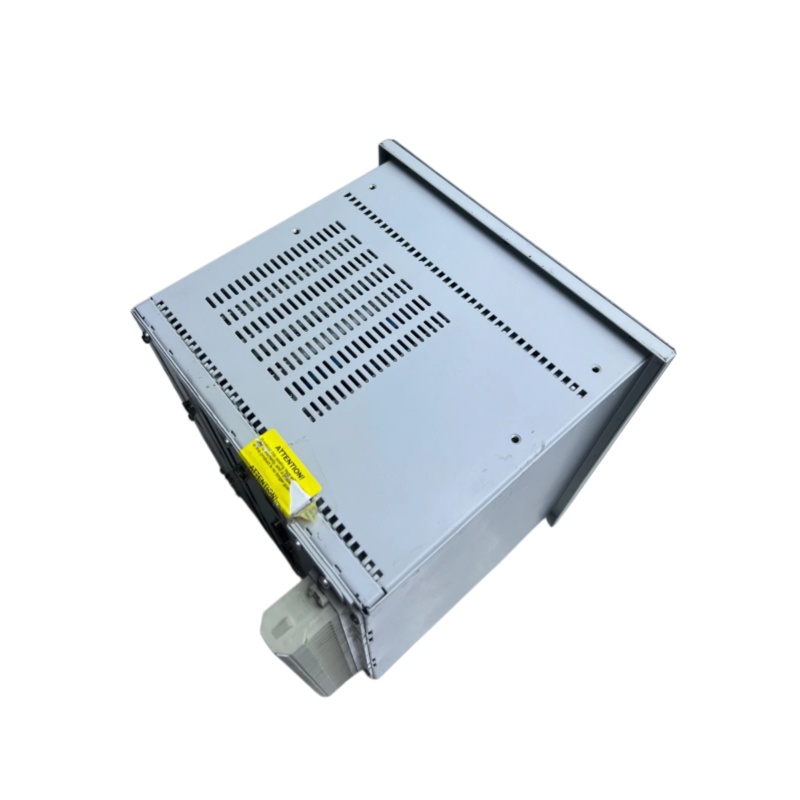

ABB REM543CG216AAAB Machine Protection Terminal
ABB REM543CG216AAAB
1. Product Overview
2. Main Parameters
|
Parameter Item
|
Specification
|
|---|---|
|
Rated Control Voltage
|
24-240 V AC/DC
|
|
Frequency
|
50/60 Hz
|
|
Digital Input
|
25 binary inputs
|
|
Output Relay
|
18 output relays
|
|
RTD Input
|
8 optional RTD inputs
|
|
Operating Temperature
|
-25°C to +55°C
|
|
Weight
|
Approx. 0.515 kg
|
|
Overall Dimension
|
Compact modular design
|
3. Product Features
3.1 Integrated Protection Functions
- Overcurrent Protection: Supports non-directional and directional overcurrent protection as well as ground fault protection
- Differential Protection: Provides stator and rotor differential protection
- Voltage Protection: Implements overvoltage, undervoltage and voltage unbalance protection
- Specialized Protection: Equipped with motor-specific protection functions including voltage restrained overcurrent protection and under-excitation protection
3.2 Flexible Measurement and Monitoring
- Current measurement is available via conventional measuring transformers or current sensors
- Voltage measurement is supported through voltage dividers
- Capable of measuring phase current, phase-to-phase voltage, phase-to-neutral voltage, neutral current, residual voltage and other electrical parameters
- Optional RTD input module enables temperature monitoring of stator windings, bearings and ambient environment
3.9 Powerful Communication Capabilities
- Compatible with the IEC 61850 standard protocol
- Supports multiple communication protocols including SPA, LON and Modbus
- Fiber optic communication ensures high-speed and anti-interference data transmission
- Comes with the SPA-ZC 400 fiber optic communication adapter
3.4 Extended Functions
- Built-in programmable logic controller (PLC) functions
- Supports local and remote control operations
- Enables circuit breaker status monitoring, trip circuit supervision and internal self-monitoring
- Equipped with event recording and fault waveform recording functions
4. Structure and Composition
4.1 Hardware Structure
- Display Screen: Adopts a large-size graphic display as the fixed human-machine interface (HMI), or supports external display modules
- Control Panel: Consists of functional buttons including confirm key (C), exit key (E) and directional keys
- Indicator Lights: Multiple LED indicators for real-time device status display
- Terminal Blocks: Modular structure design for convenient wiring and routine maintenance
4.2 Module Composition
- CPU Module
- Display Module (Optional)
- RTD/mA Input Module (Optional)
- Communication Adapter Module
- I/O Expansion Module
4.3 RTD Configuration Options
- Configuration A: 3 stator winding RTDs + 2 motor bearing RTDs + 2 load bearing RTDs + 1 ambient RTD
- Configuration B: 6 stator winding RTDs + 2 motor bearing RTDs
- Configuration C: No RTD input
5. Application Fields
|
Application Field
|
Application Scenario
|
|---|---|
|
Power Plants
|
Protection for small and medium-sized generators, generator-transformer unit protection
|
|
Industrial Automation
|
Motor control, actuator control, auxiliary circuit protection
|
|
Marine and Offshore Facilities
|
Unit protection for marine environments with professional marine certification
|
|
Power Distribution Systems
|
Feeder protection, incoming and outgoing feeder protection for substations
|
|
Special Equipment
|
Protection for pumps, fans, mills, crushers and other industrial equipment
|
6. Installation Requirements
6.1 Installation Environment
- Install in a well-ventilated area and avoid direct sunlight exposure
- Maintain ambient temperature within the range of -25°C to +55°C
- Keep the installation environment free of frost, condensation, water seepage and rain splash
6.2 Installation Procedures
- Fix the device firmly on the control panel
- Connect power supply, CT/VT and signal cables in accordance with the wiring diagram
- Connect fiber optic communication cables if communication function is required after verifying correct wiring
- Check the firmness of all wiring connections before powering on the device
6.3 Precautions
- Ensure correct polarity when connecting CT/VT devices
- Use dedicated fiber optic cables or shielded cables for communication wiring
- Two-person operation is recommended during installation to prevent device falling and damage
- Ensure reliable grounding with grounding resistance ≤ 10Ω
