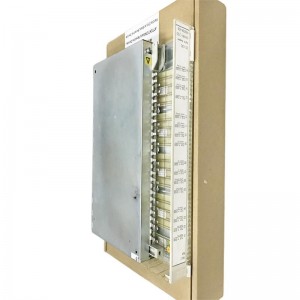

ABB DO814

ABB DO814 is a 16-channel 24V DC digital output module with a 0.5A sink current capability, specifically designed for the S800 I/O system. It provides multiple protections such as short-circuit and overheating protection, and is divided into two mutually isolated output groups (8 channels per group) with a voltage monitoring input.

Key Technical Specifications

• Input/Output Channels: 16 channels (split into two groups of 8 channels each)
• Output Voltage Range: 10–30V DC, typical 24V DC
• Maximum Continuous Output Current: 0.5A (500mA)
• I/O Voltage and Current: 24V DC, 500mA
• Isolation Method: Group-based ground isolation with optoelectronic isolation barriers
• Protection Functions: Short-circuit protection, overheating protection, EMC protection, inductive load suppression, and status indicator LEDs
• Power Consumption: Approximately 2.1W (typical value)
• Dimensions: About 119mm × 45mm × 102mm
• Weight: Around 0.255kg

Product Features

1. Sink Current Capability: Absorbs overcurrent during load short-circuits to safeguard system security.
2. Two-group Isolation Design: Each group of 8 channels is independently isolated, enhancing anti-interference performance and supporting group-specific grounding.
3. Multi-layer Protection: Integrates short-circuit, overheating, EMC, and inductive load suppression protections to ensure reliable operation.
4. Status Indication: Each output channel is equipped with an LED for quick on-site fault diagnosis.
5. Modular Structure: Compliant with DIN rail mounting, facilitating system expansion and maintenance.

Structure and Components

• Main Board: Houses I/O interfaces, optoelectronic isolation barriers, and protection circuits.
• Power Board: Supplies 24V power and implements sink current functionality.
• Output Drive Unit: Each output channel is fitted with a low-side switch and EMC protection components.
• Monitoring and Indication: Includes voltage monitoring input and LED status indicators.

Typical Application Areas

• Industrial automation control systems (e.g., production lines, industrial robots)
• Process control and monitoring (chemical industry, energy sector)
• Field instruments and valve drives requiring high-reliability digital outputs
• Any 24V DC digital output scenarios that demand sink current protection

Installation and Maintenance Guidelines

Installation

• Mount the module on a DIN rail and ensure correct connection of power and signal lines.
• Verify that the ground isolation of each output group meets on-site wiring requirements.

Wiring

• Connect output terminals to loads and ensure the load voltage falls within the 10–30V range.
• Use shielded cables to minimize EMI interference.

Commissioning

• After power-on, check LED indicators to confirm the status of each output channel.
• Use a multimeter or oscilloscope to verify that the sink current function operates normally.

Maintenance

• Regularly inspect whether short-circuit/overheating protection has been triggered at the output terminals.
• Clean dust from the module surface to maintain heat dissipation and ventilation.
• When replacing the module, ensure the system is powered off and follow hot-swapping specifications (if applicable).
