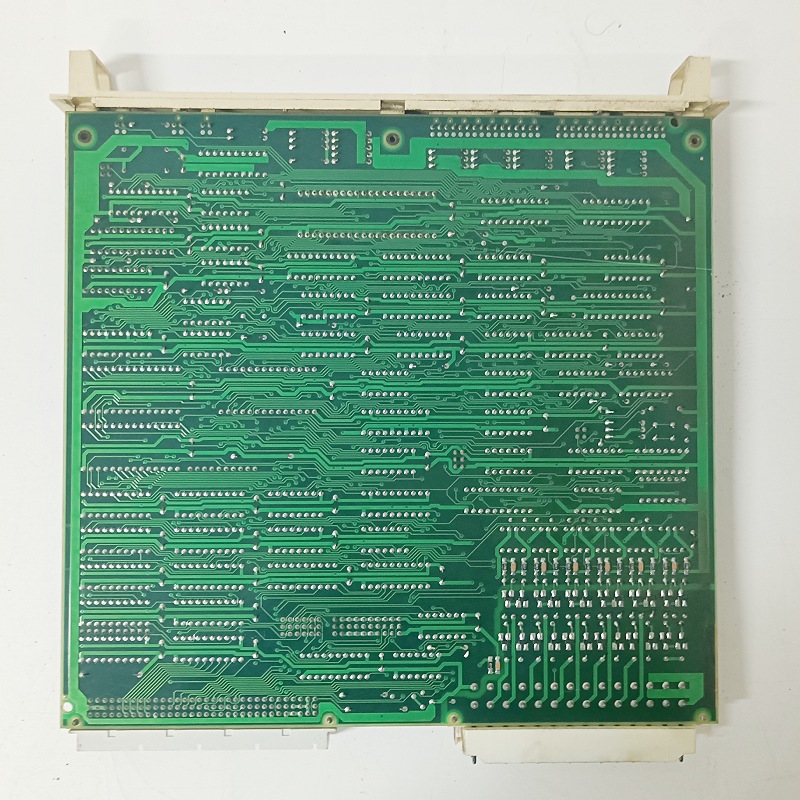

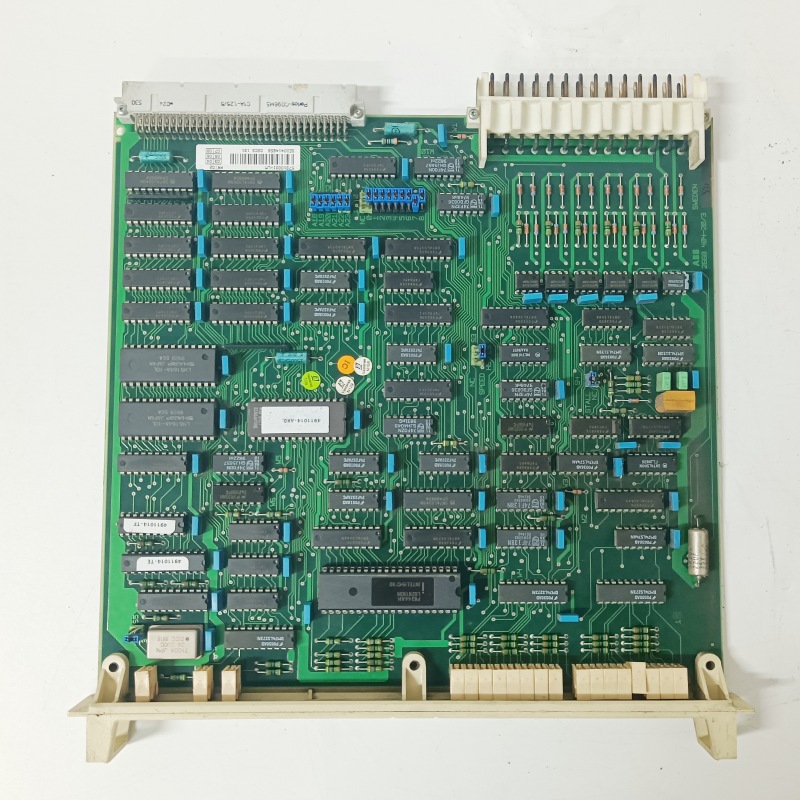

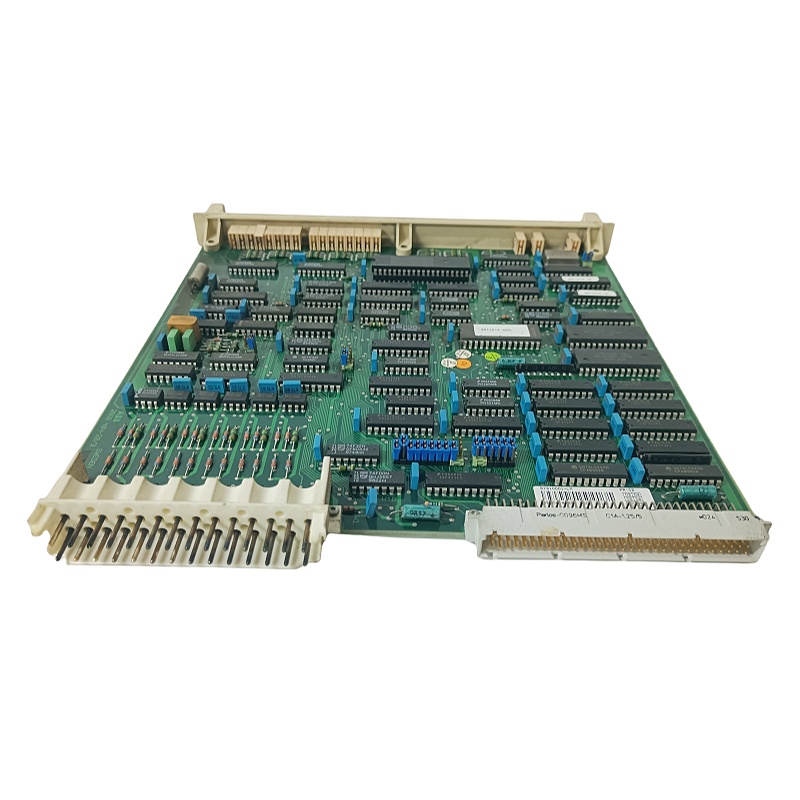

ABB DSCS131 57310001-LM bus communication module
ABB DSCS131 57310001-LM
Overview
Parameters
- Model: DSCS131 57310001-LM
- Manufacturer: ABB
- Type: I/O module
- Dimensions: 228.6 mm (length) × 321.3 mm (width) × 19.8 mm (height)
- Weight: 0.46 kg
- Operating voltage: Usually within the standard range (please refer to the manual for details)
- Input voltage: 200-480 VAC
- Communication interfaces: RS485, Ethernet, USB, etc.
- Input/output capability: Supports analog and digital signal input/output, including 4-20mA current signals and 0-10V voltage signals
- ADC resolution: 16-bit (depending on configuration)
- Sampling rate: Up to 500 kS/s (depending on configuration)
- Protection class: IP20
- Operating temperature: -40°C to +85°C
- Storage temperature: Standard industrial range
- Humidity range: Designed to withstand industrial environments
Product Features
- High performance: Adopts high-performance processors and algorithms to achieve fast data processing and high control precision.
- Multi-protocol support: Supports multiple fieldbus protocols such as PROFIBUS, PROFINET, Modbus RTU, etc., enabling flexible adaptation to different application scenarios.
- High reliability: Industrial-grade design ensures long-term stable operation.
- Modular design: Facilitates installation, maintenance, and upgrading, reducing operational costs.
- Flexible configuration: Users can configure and program according to specific application requirements.
- Strong anti-interference capability: Adopts high-frequency pulse width modulation edge resonance technology, featuring high voltage regulation accuracy, fast dynamic response, low output noise, and strong anti-interference capability.
- Intuitive operation interface: Working status can be displayed via digital LCD panel or Chinese LCD, with simple and intuitive operation.
- Safety protection: Built-in multiple protection functions such as overcurrent and overvoltage to ensure safe operation of the equipment.
- Easy maintenance: Supports remote diagnosis and maintenance, with high reliability and availability.
Structure and Composition
- Communication interfaces: Supports multiple communication protocols such as RS485, Ethernet, USB, etc., for communication with the main control system and field devices.
- Input/output ports: Supports analog and digital signal input/output, suitable for various industrial application scenarios.
- Processing unit: Adopts high-performance processors and algorithms to achieve fast data processing and high control precision.
- Display interface: Equipped with a digital LCD or Chinese LCD display for showing working status and parameters.
- Power management: Built-in unified charging and float charging switching circuits to ensure stable operation of the system.
Application Fields
- Machinery manufacturing: Used to control and monitor parameters such as temperature, pressure, and flow in the machinery manufacturing process.
- Chemical industry: Used for automated control and data collection in chemical production processes.
- Power industry: Used for automated control of power facilities such as power plants and distribution systems.
- Transportation: Used for railway signal control, port/logistics automation, etc.
- Medical equipment: Used for collaborative control and data collection of medical equipment.
- Food processing: Used for automated control in the food processing process.
- Water treatment facilities: Used for automated control and data collection of water treatment facilities.
- Automotive parts manufacturing: Used for robotic automation solutions in automotive parts manufacturing.
Installation and Maintenance
- Installation method: Usually installed on a DIN rail, facilitating installation and integration into existing systems.
- Installation steps:
- Ensure the installation environment meets electrical safety standards.
- Install according to the installation guide provided by ABB.
- Select appropriate types of connecting wires according to the application scenario.
- After installation, conduct a preliminary inspection to ensure all connections are correct.
- Maintenance recommendations:
- Regularly check the working status and parameters of the module.
- Use dedicated software or tools for configuration and programming.
- Keep the environment clean to avoid dust and moisture affecting the module’s performance.
- Conduct regular fault diagnosis and maintenance to ensure long-term stable operation of the module.
———————————————————————————————————————————
