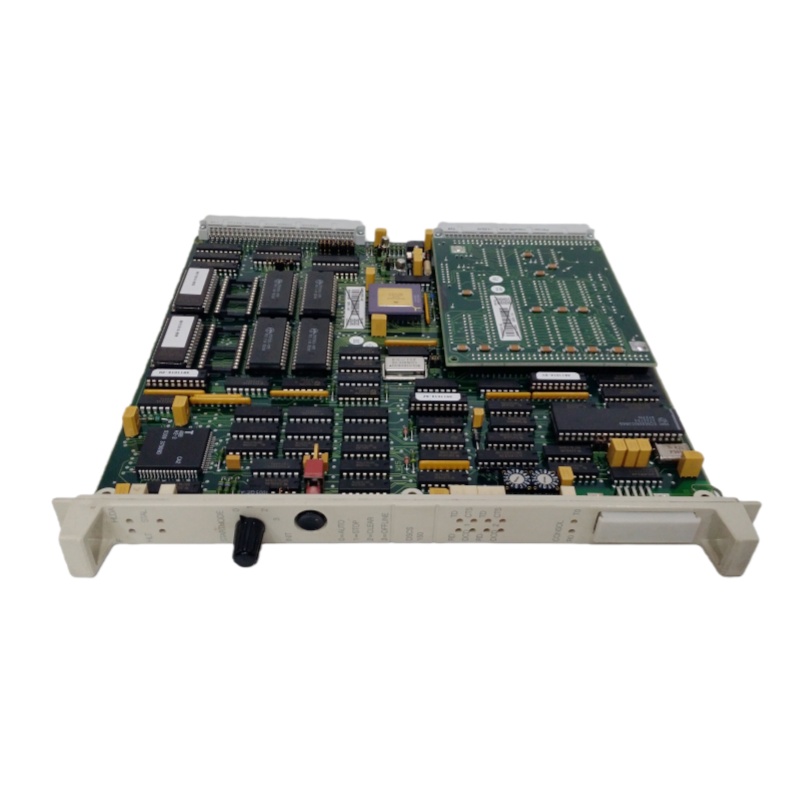

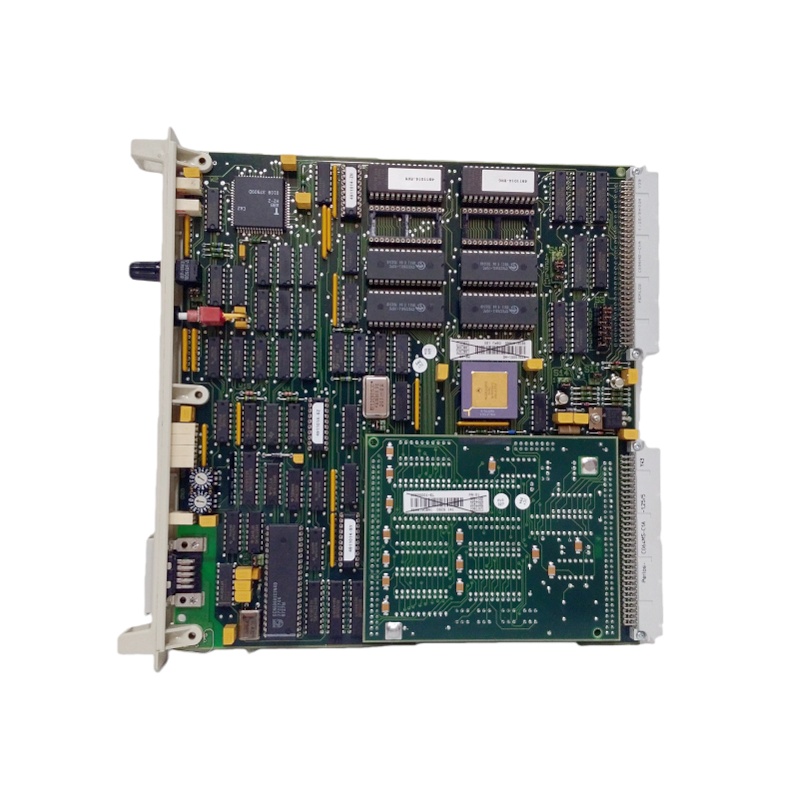

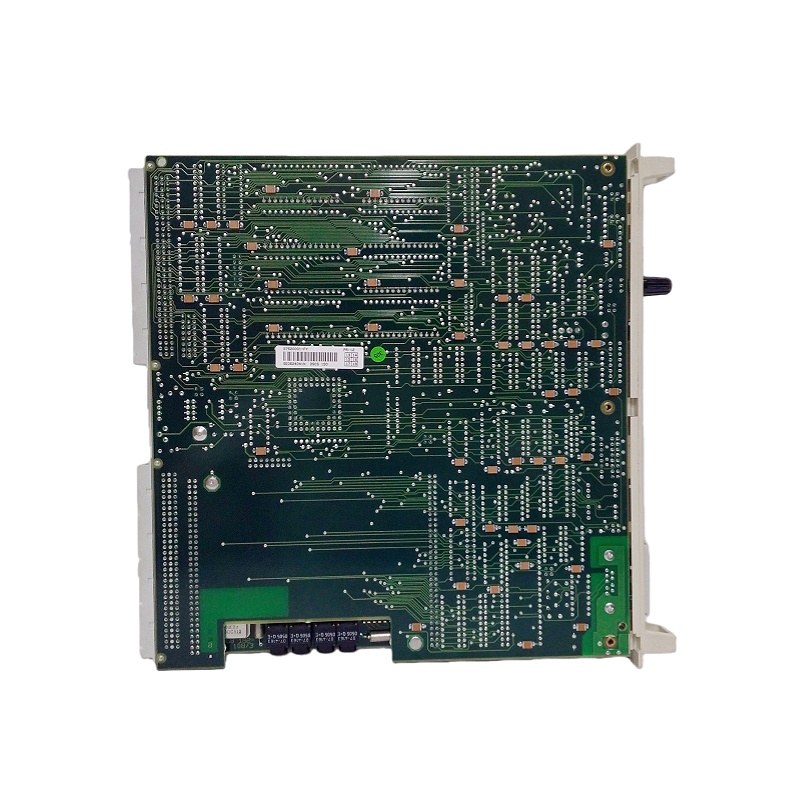

ABB DSCS150 57520001-FY Communication Unit
ABB DSCS150 57520001-FY
1. Overview
DSCS150 is a distributed control system (DCS) communication unit under ABB. It adopts the GCOM interface to achieve high-speed and reliable data exchange between the fieldbus and the upper-level system. This unit is commonly used for communication bridging between the field layer and control layer in process automation, energy management, and large-scale industrial installations.
2. Main Technical Parameters
- Model/Part Number: DSCS150 57520001-FY
- Communication Protocol: GCOM (based on IEC 61850/Modbus/TCP)
- Power Supply Requirement: 24 V DC ± 10% (48 V DC optional)
- Operating Temperature: -25 °C – +70 °C (industrial environment)
- Protection Class: IP20 (indoor cabinet)
- Dimensions: Standard 19-inch rack, 2U width (approx. 88 mm)
- Number of Interfaces: 8 channels of RS-485/RS-422, supporting multi-site redundant links
- Response Time: ≤ 5 ms (cycle period)
3. Product Features
- High Reliability: Redundant communication links and self-test functions ensure that critical processes are not interrupted.
- Modular Design: Plug-and-play, facilitating quick on-site replacement or capacity expansion.
- Strong Compatibility: Supports multiple fieldbus protocols and can seamlessly interface with other ABB DCS series.
- Easy Maintenance: Built-in diagnostic information is displayed in real time through HMI/SCADA, enabling fast fault location.
- Compact Size: The 2U rack occupies a small space, suitable for dense cabinet layout.
4. Structure and Composition
- Main Control Board: Equipped with CPU and communication protocol stack, responsible for data packaging and forwarding.
- Power Supply Module: Provides stable 24 V DC power supply with overvoltage and overcurrent protection.
- Interface Card: 8 channels of RS-485/RS-422 interfaces with optocoupler isolation.
- Cabinet Mounting Bracket: 19-inch rack support compliant with IEC 60297 standard.
- Diagnostic Indicators: Three-color indicators for power, communication, and fault status, facilitating on-site observation.
5. Typical Application Fields
- Petrochemical Industry: Process control and monitoring of oil refining and chemical plants.
- Power System: Real-time data acquisition and protection of power plants and substations.
- Water Treatment: Process automation of water supply, drainage, and sewage treatment plants.
- Iron and Steel Metallurgy: Process monitoring of high-temperature furnaces and continuous casting production lines.
- Pharmaceutical and Food Industry: Process control and batch traceability in clean areas.
6. Key Points for Installation and Maintenance
Pre-installation Inspection
Confirm that the cabinet size, power supply voltage, and grounding meet the technical requirements.
Wiring Specifications
Use twisted-pair cables for RS-485/RS-422, maintain matching of terminal resistors, and avoid signal reflection.
Redundant Configuration
It is recommended to use dual-link redundancy, which are connected to the master and backup controllers respectively.
————————————————————————————————————-
